Focal 100 IWSUB8 + Subwoofer Amplifier Pack – E1SSWPA101

A complete Focal in-wall bass solution combining the 100 IWSUB8 passive subwoofer with its dedicated rack-mountable amplifier.

The Focal 100 IWSUB8 + Subwoofer Amplifier Pack E1SSWPA101 pairs Focal's discreet 8-inch Polyglass in-wall subwoofer with the amplifier engineered specifically to drive it.

Designed for custom home audio and home theater installations, the system delivers deep, controlled bass while keeping the subwoofer almost completely hidden within the wall. The 100 IWSUB8 reaches down to 30Hz (-6dB), while its dedicated amplifier provides up to 200 watts of power with adjustable crossover, phase, and output level.

It's an elegant solution for media rooms, living spaces, distributed audio systems, and installations where conventional powered subwoofers would compromise the room design.

Complete Subwoofer + Amplifier Package

This package combines two components designed by Focal to operate together:

1 × Focal 100 IWSUB8 Passive In-Wall Subwoofer
1 × Focal 100 IWSUB8 Dedicated Subwoofer Amplifier

Rather than requiring a separate third-party subwoofer amplifier, the system provides the correct amplification, filtering, controls, and protection for the 100 IWSUB8 in one matched package.

8-Inch Polyglass Woofer

The 100 IWSUB8 uses an 8-inch (21cm) Polyglass woofer engineered to combine rigidity with effective damping.

Focal's Polyglass technology applies fine glass microbeads to a cellulose-pulp cone, increasing rigidity while retaining the damping properties of paper.

The result is bass designed to remain controlled and articulate while providing the impact required for both music and home theater.

Bass Extension Down to 30Hz

Despite its extremely shallow in-wall construction, the 100 IWSUB8 delivers a frequency response of 34Hz–140Hz ±3dB, with useful low-frequency extension reaching 30Hz at -6dB.

A front-firing bass-reflex port uses a flared internal profile to control airflow and minimize unwanted port noise.

Because both the woofer and port radiate into the room from the front, the entire system can remain concealed inside the wall.

Only 3-3/8 Inches of Mounting Depth

The 100 IWSUB8 was designed specifically for architectural integration.

It installs between standard 16-inch-on-center wall studs and requires only 3-3/8 inches (86mm) of mounting depth.

Once installed, the subwoofer is covered by a low-profile magnetic grille that can be painted to match the surrounding wall.

The result is powerful low-frequency reinforcement without placing a conventional subwoofer enclosure in the room.

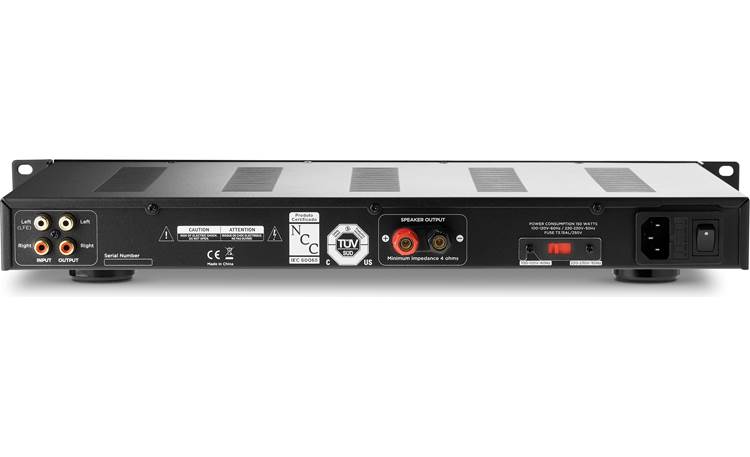

Dedicated 100 IWSUB8 Amplifier

The included Focal amplifier was engineered specifically for the 100 IWSUB8.

It delivers 150 watts continuous into 4 ohms with up to 200 watts maximum output and incorporates dynamic power control, thermal protection, short-circuit protection, over-current protection, and fuse protection.

The amplifier is also 19-inch rack compatible at 1U, making it easy to integrate into a centralized AV equipment rack.

Adjustable Bass Management

Front-panel controls make it possible to properly integrate the subwoofer with the rest of the audio system.

Adjustments include:

• Variable 40Hz–200Hz crossover

• 0°–180° phase adjustment

• Output level control

• On / Auto / Off operation

• LFE input

• Stereo RCA line inputs and outputs

This gives an installer the flexibility needed to blend the in-wall subwoofer with Focal architectural speakers and the acoustics of the room.

Expandable to Two In-Wall Subwoofers

The included amplifier can drive up to two Focal 100 IWSUB8 subwoofers connected in parallel.

That makes the E1SSWPA101 package an excellent starting point for a system that may eventually require greater bass output or more even low-frequency distribution throughout the room.

Add a second 100 IWSUB8 and the same amplifier can power both.

Designed for Focal 100 Series Systems

The 100 IWSUB8 was developed as the low-frequency complement to Focal's 100 Series architectural loudspeakers.

It can be integrated with 100 Series in-wall and in-ceiling speakers to create a complete Focal system with virtually no visible loudspeaker cabinets.

The combination is particularly well suited to dedicated home theaters, media rooms, living rooms, whole-home audio systems, and other spaces where performance and architectural discretion are equally important.

Technical Specifications – 100 IWSUB8

Specification	Details
Type	Passive in-wall bass-reflex subwoofer
Woofer	8" (21cm) Polyglass
Frequency Response	34Hz–140Hz ±3dB
Low-Frequency Point	30Hz (-6dB)
Sensitivity	89dB (2.83V/1m)
Nominal Impedance	8Ω
Installation	16" OC stud construction
Dimensions	51-3/16" H × 13-7/8" W × 3-7/8" D
In-Wall Mounting Depth	3-3/8"
Weight	32.3 lbs
Grille	Low-profile magnetic, paintable
Configuration	Passive / requires external amplifier

Technical Specifications – 100 IWSUB8 Amplifier

Specification	Details
Type	Dedicated subwoofer amplifier
Continuous Power	150W into 4Ω
Maximum Power	200W
Minimum Load	4Ω
Subwoofer Capacity	Up to 2 × 100 IWSUB8
Bandwidth	20Hz–250Hz
Crossover	Adjustable 40Hz–200Hz / LFE
Phase	Adjustable 0°–180°
Inputs	LFE / RCA Line L/R
Line Outputs	RCA L/R
Speaker Output	Binding posts
Rack Mounting	19" / 1U compatible
Protection	Dynamic power, thermal, short-circuit, fuse and over-current
Dimensions	1-3/4" H × 16-7/8" W × 10-1/8" D
Width with Rack Ears	19"
Weight	6.8 lbs

What's Included

1 × Focal 100 IWSUB8 Passive In-Wall Subwoofer
1 × Focal 100 IWSUB8 Dedicated Amplifier
1 × Paintable Magnetic Subwoofer Grille
Rack-mount hardware for amplifier

Focal 100 IWSUB8 + Amplifier Pack at The Grid HiFi

The Focal 100 IWSUB8 + Subwoofer Amplifier Pack E1SSWPA101 provides a complete, purpose-designed solution for adding serious low-frequency performance without placing a conventional subwoofer in the room.

With an 8-inch Polyglass woofer, 30Hz low-frequency extension, shallow 3-3/8-inch installation depth, paintable magnetic grille, and dedicated rack-mountable amplifier, it is an excellent foundation for discreet high-performance home audio and theater systems.

As a Focal Powered by Naim partner, The Grid HiFi can design the complete system around the 100 IWSUB8, including architectural speakers, amplification, processing, wiring, placement, and professional installation.

Contact The Grid HiFi at (713) 218-8120 for system design and installation assistance.
