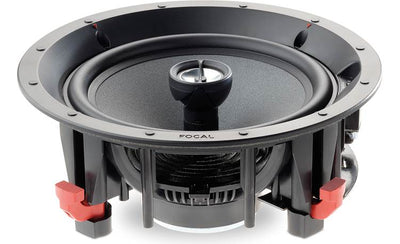

Focal 100 ICW6 2-Way In-Wall / In-Ceiling Speaker

2-Way Coaxial Architectural Speaker • 6.5" Polyglass Driver • Inverted-Dome Tweeter • 89 dB Sensitivity • In-Wall or In-Ceiling Installation

The Focal 100 ICW6 is a versatile 2-way coaxial architectural speaker designed for both in-wall and in-ceiling installation. Its 6.5-inch Polyglass mid-bass driver and directional inverted-dome tweeter make it suitable for distributed audio, stereo listening and home theater systems while maintaining a discreet architectural appearance. Focal

With a shallow mounting depth, paint-ready magnetic grille and moisture-resistant Polyglass cone, the 100 ICW6 works equally well in living rooms, bedrooms, kitchens, bathrooms and dedicated entertainment spaces.

6.5" Polyglass Driver

The 100 ICW6 uses Focal's 6.5-inch Polyglass mid-bass driver.

Polyglass technology applies fine glass microbeads to a cellulose-pulp cone, combining the damping properties of paper with increased rigidity. The design is engineered for linear response and clearly defined midrange reproduction. Focal

Directional Inverted-Dome Tweeter

Focal's inverted-dome tweeter provides broad dispersion while allowing the high-frequency output to be directed toward the listening area.

A three-position treble adjustment provides additional control for different room acoustics and speaker locations. Focal also optimizes the crossover to reduce the concentrated "shower effect" that can occur with conventional ceiling speakers. Focal

In-Wall or In-Ceiling Installation

The same 100 ICW6 can be installed in the wall or ceiling, giving integrators greater flexibility when designing a complete architectural audio system.

Its 3.56-inch mounting depth makes it particularly useful where installation space is limited. Focal

Moisture-Resistant Design

Focal "tropicalizes" the Polyglass cone for increased resistance to humid environments.

That allows the 100 ICW6 to be considered for spaces such as bathrooms and other moisture-prone residential areas, while still delivering the performance expected from Focal's 100 Series. Focal

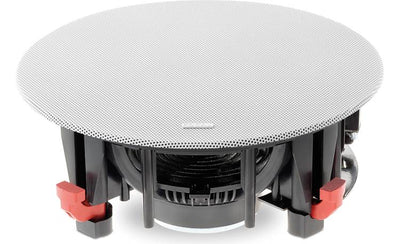

Discreet Architectural Integration

A unibody frame and ready-to-paint magnetic grille allow the speaker to blend into the surrounding architecture.

Once installed and painted to match the surface, only the grille remains visible. Focal

Technical Specifications

Focal specifies 62 Hz to 23 kHz frequency response, 89 dB sensitivity, 8-ohm nominal impedance, 7.3-ohm minimum impedance and recommended amplification of 25 to 100 watts. Focal

Flexible Whole-Home and Theater Applications

The 100 ICW6 works well for whole-home audio, stereo zones, media rooms and home theater surround or height applications. Its ability to install in either walls or ceilings also makes it easier to maintain consistent Focal voicing throughout a property.

For systems requiring deeper bass, Focal specifically recommends pairing the 100 Series with its architectural subwoofer solutions. Focal

Focal 100 Series at The Grid HiFi

The Grid HiFi designs and installs complete Focal architectural audio, whole-home music and home theater systems.

As a Focal Powered by Naim partner, we can match the 100 ICW6 with the appropriate Focal speakers, architectural subwoofers, Naim CI amplification and system electronics. The Grid can also coordinate Control4 automation, networking, lighting, shades, home theater and professional installation as part of a complete integrated system.

Planning a Focal architectural audio system? Call The Grid HiFi at (713) 218-8120 and let us design the speaker layout, amplification and control system around your home.
