Overview

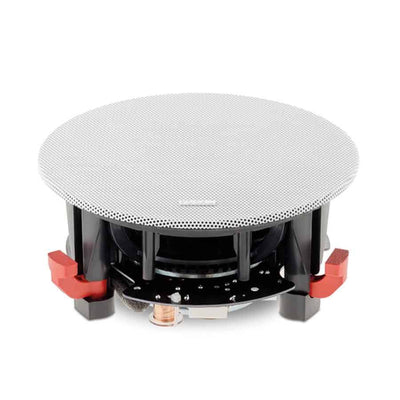

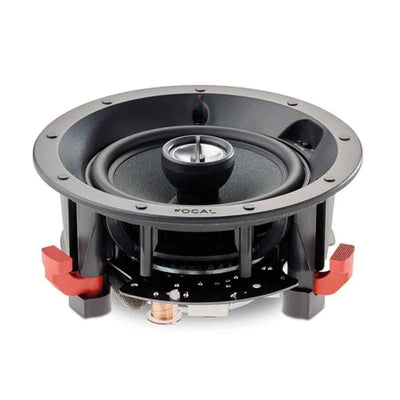

Focal 100 ICW5 2-Way In-Wall / In-Ceiling Speaker
2-Way Coaxial Architectural Speaker • 5" Polyglass Driver • Inverted-Dome Tweeter • 88 dB Sensitivity • In-Wall or In-Ceiling
The Focal 100 ICW5 is a compact 2-way coaxial in-wall and in-ceiling speaker designed for whole-home audio, stereo listening and home theater. Its shallow installation depth makes it especially useful where ceiling or wall space is limited, while Focal's Polyglass driver and inverted-dome tweeter provide the acoustic foundation of the 100 Series. Focal
It is equally at home in a living room, kitchen, bedroom or hallway, or as part of a discreet architectural home cinema system.
5" Polyglass Driver
The 5-inch Polyglass mid-bass driver uses Focal's glass-microbead coating over a cellulose-pulp cone.
The construction combines the damping characteristics of paper with increased rigidity, helping maintain linear response and definition through the midrange. Focal
Focal Inverted-Dome Tweeter
Focal's inverted-dome tweeter is engineered for wide dispersion and low directivity, important when architectural speakers need to cover a broad listening area.
Tweeter level can also be adjusted to better match the acoustics and placement of the speaker within the room. Focal
In-Wall or In-Ceiling
The same 100 ICW5 can be installed in a wall or ceiling, making it a versatile choice for projects requiring consistent Focal performance throughout multiple rooms.
Its mounting depth is only 3.23 inches, making it particularly useful for space-conscious installations. Focal
Moisture-Resistant Polyglass
Focal tropicalizes the Polyglass driver for increased resistance to humidity.
This allows the 100 ICW5 to be used in appropriate humid residential environments such as bathrooms, expanding its usefulness in whole-home audio systems. Focal
Discreet Architectural Integration
A unibody frame and ready-to-paint magnetic grille allow the 100 ICW5 to virtually disappear into the surrounding architecture.
It can be installed in wall or ceiling material from 8 mm to 35 mm thick. Focal
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Focal |
| Series | 100 Series |
| Model | 100 ICW5 |
| Product Type | In-Wall / In-Ceiling Speaker |
| Speaker Architecture | 2-Way Coaxial |
| Installation | In-Wall or In-Ceiling |
| Mid-Bass Driver | 5" (13 cm) Polyglass |
| Tweeter | Focal Inverted-Dome |
| Tweeter Level Adjustment | Yes |
| Frequency Response | 65 Hz to 23 kHz ±3 dB |
| Low-Frequency Point | 56 Hz (-6 dB) |
| Sensitivity | 88 dB |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 7.3 Ω |
| Recommended Amplifier Power | 15 to 100 W |
| Overall Depth | 87 mm / 3.42 in |
| Mounting Depth | 3.23 in |
| Cutout Diameter | 160 mm / 6 in |
| Minimum Surface Thickness | 8 mm / 0.3125 in |
| Maximum Surface Thickness | 35 mm |
| Weight | 1.45 kg / 3.2 lb |
| Grille | Ready-to-Paint Magnetic Grille |
| Moisture Resistance | Tropicalized Polyglass Driver |
| Cutout Template | Included |
| Included Felt | Black and White, Ready to Apply |
Focal specifies a 65 Hz to 23 kHz frequency response, 88 dB sensitivity, 8-ohm nominal impedance and 15 to 100 watts of recommended amplifier power. Focal
Flexible Whole-Home Audio
The compact 100 ICW5 is particularly well suited to distributed music systems, stereo zones and architectural home theater applications. Its combination of shallow depth and wall-or-ceiling installation flexibility makes it easy to use throughout a larger residential project.
For systems requiring greater output or deeper bass, the 100 ICW5 can be combined with larger Focal architectural speakers and the 100 IWSUB8 architectural subwoofer. Focal
Focal 100 Series at The Grid HiFi
The Grid HiFi designs and installs complete Focal architectural audio, whole-home music and home theater systems.
As a Focal Powered by Naim partner, we can match the 100 ICW5 with the appropriate Focal speakers, architectural subwoofers, Naim CI amplification and system electronics. The Grid can also coordinate Control4 automation, networking, lighting, shades, home theater and professional installation as part of a complete integrated system.
Planning a Focal architectural audio system? Call The Grid HiFi at (713) 218-8120 and let us design the speaker layout, amplification and control system around your home.
