Overview

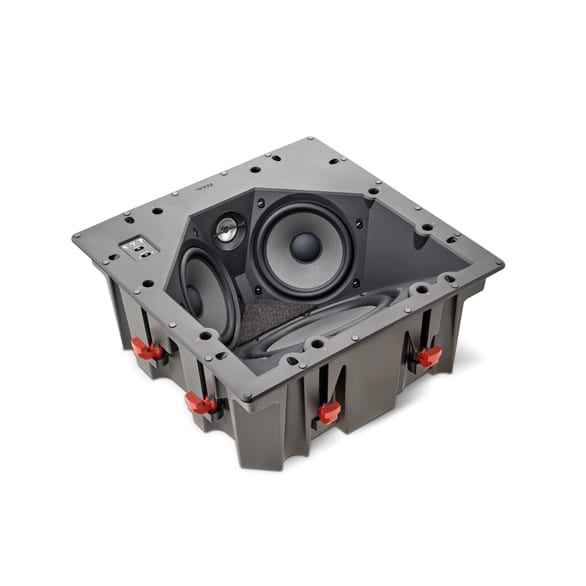

Focal 100 ICLCR5 2-Way In-Ceiling LCR Speaker
2-Way In-Ceiling LCR • Dual 5" Polyglass Drivers • Adjustable Inverted-Dome Tweeter • 92 dB Sensitivity • 65 Hz to 23 kHz
The Focal 100 ICLCR5 is a compact, high-performance in-ceiling LCR speaker designed for discreet home theater installations. It can operate as the front left, center or right channel, or as the rear left or right speaker in a multichannel system. This makes it particularly useful in rooms where conventional ear-level speaker placement is difficult or impossible. Focal
Its dual 5-inch Polyglass drivers, adjustable inverted-dome tweeter and dedicated LCR configuration controls allow the speaker to be optimized for its position within the theater.
Five Home Theater Applications
The 100 ICLCR5 can be configured for five different in-ceiling positions: front left, center, front right, rear left or rear right.
A three-position Left / Center / Right selector adjusts the speaker's directionality for its installation position, helping maintain consistent tonal balance across the front soundstage. Focal
Dual 5" Polyglass Drivers
Two 5-inch Polyglass mid-bass drivers provide the foundation of the 100 ICLCR5.
Focal's Polyglass construction applies fine glass microbeads to a cellulose-pulp cone, combining the damping characteristics of paper with increased rigidity for controlled midrange and mid-bass reproduction. Focal
Adjustable Inverted-Dome Tweeter
The Focal inverted-dome tweeter can be aimed through 20 degrees, directing high-frequency energy toward the listening area.
Treble output can also be adjusted -3 dB, 0 dB or +3 dB, providing additional control for room acoustics and installation position. Focal
Designed for Architectural Home Theater
At only 5.83 inches deep, the 100 ICLCR5 provides substantial installation flexibility while maintaining a clean architectural appearance.
A paint-ready magnetic grille allows the speaker to visually disappear into the ceiling once installation is complete. Focal
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Focal |
| Series | 100 Series |
| Model | 100 ICLCR5 |
| Product Type | 2-Way In-Ceiling LCR Speaker |
| Installation | In-Ceiling |
| Applications | Front Left / Center / Right / Rear Left / Rear Right |
| Speaker Architecture | 2-Way |
| Mid-Bass Drivers | 2 × 5" (13 cm) Polyglass |
| Tweeter | Inverted-Dome Tweeter |
| Tweeter Adjustment | 20° |
| Treble Adjustment | -3 dB / 0 dB / +3 dB |
| LCR Adjustment | Left / Center / Right Selector |
| Frequency Response | 65 Hz to 23 kHz ±3 dB |
| Low-Frequency Point | 55 Hz (-6 dB) |
| Sensitivity | 92 dB |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 4.6 Ω |
| Recommended Amplifier Power | 25 to 120 W |
| Overall Width | 354 mm / 13.94 in |
| Overall Height | 354 mm / 13.94 in |
| Overall Depth | 150 mm / 5.83 in |
| Cutout Width | 328 mm / 12.94 in |
| Cutout Height | 328 mm / 12.4 in |
| Mounting Depth | 6 in |
| Minimum Ceiling Thickness | 8 mm / 0.3125 in |
| Maximum Ceiling Thickness | 60 mm / 2.37 in |
| Weight | 5.3 kg |
| Grille | Magnetic, Paint-Ready |
| Cutout Template | Included |
| Included Felt | Black and White, Ready to Apply |
Focal specifies 92 dB sensitivity, 8-ohm nominal impedance, 4.6-ohm minimum impedance and recommended amplifier power of 25 to 120 watts. Frequency response is rated at 65 Hz to 23 kHz ±3 dB, with a 55 Hz low-frequency point at -6 dB. Focal
Focal 100 Series at The Grid HiFi
The Grid HiFi designs complete Focal architectural audio and home theater systems, matching speaker location and coverage to the architecture of the room rather than simply filling predetermined ceiling openings.
As a Focal Powered by Naim partner, we can design the 100 ICLCR5 into a complete system with properly positioned LCR and surround channels, subwoofers, amplification and AV processing. The Grid can also integrate projection, immersive audio, lighting, Control4 automation, networking and professional installation.
Planning a Focal architectural audio or home theater system? Call The Grid HiFi at (713) 218-8120 and let us design the speaker layout around your room.
