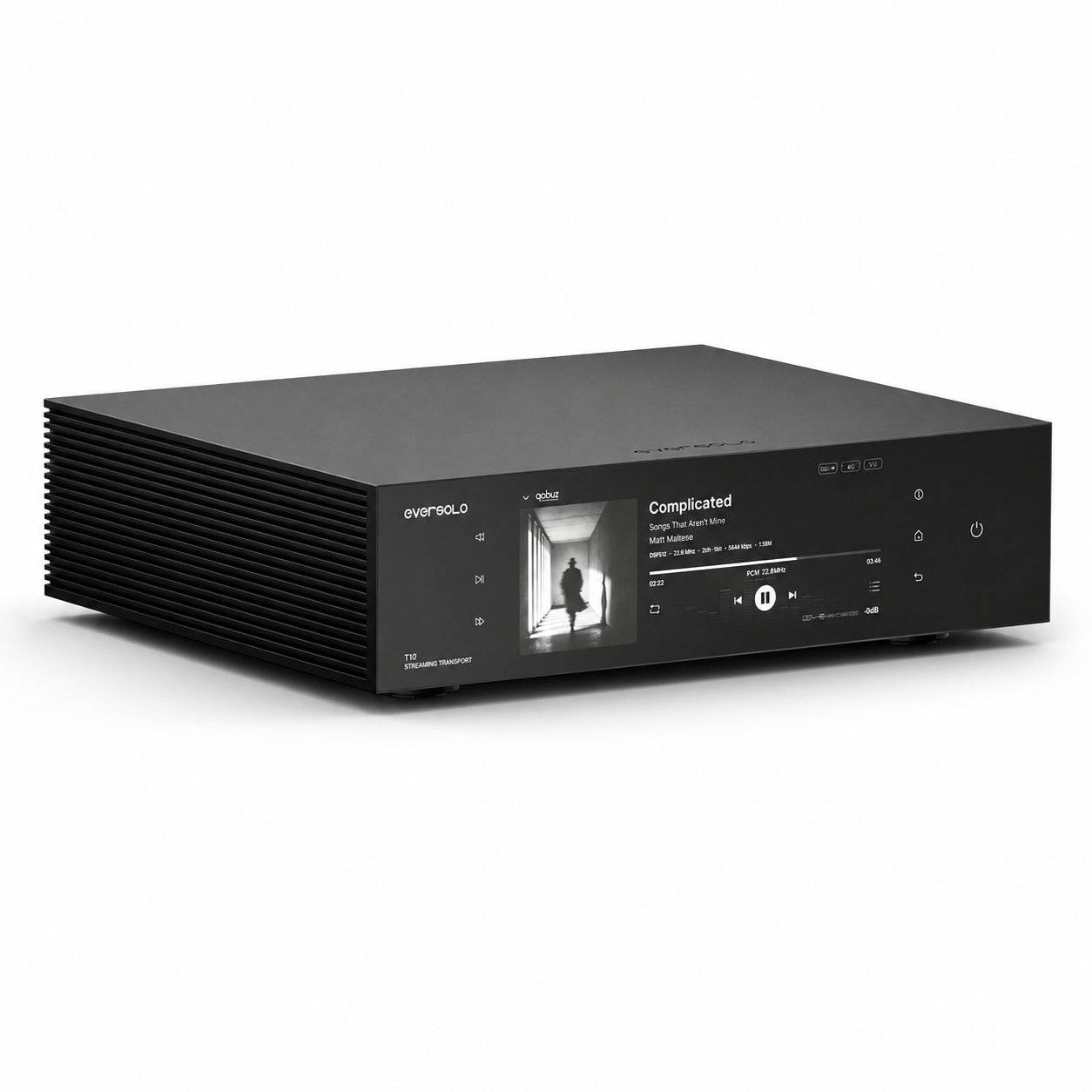

Eversolo T10 Streaming Transport

Pure Sound. True Essence.

The Eversolo T10 is a reference-grade digital streaming transport engineered for audiophiles who want uncompromised digital playback with their choice of external DAC. Built around advanced clocking, electrical isolation, a custom linear power supply, high-speed networking, and extensive digital connectivity, the T10 provides a clean and precise foundation for a high-end digital audio system.

With support for DSD512 Native and PCM up to 768kHz/32-bit, an OCXO clock system with PLL, external master-clock capability, dual NVMe SSD expansion, SFP fiber networking, and an immersive 8.6-inch touchscreen, the T10 combines serious digital engineering with Eversolo’s intuitive music-management platform.

Designed as a Dedicated Digital Transport

Unlike an all-in-one streamer/DAC, the T10 focuses on delivering a high-quality digital signal to an external DAC. Eversolo uses extensive electrical isolation, physical partitioning, electromagnetic shielding, and a custom O-type linear power supply to minimize interference throughout the digital signal path.

This makes the T10 an excellent centerpiece for reference systems where the owner already has—or wants to choose—a dedicated high-end DAC.

Precision OCXO Clock Architecture

At the heart of the T10 is an OCXO (Oven-Controlled Crystal Oscillator) combined with PLL technology. The temperature-controlled oscillator provides a highly stable timing reference, while the PLL further refines clock performance to minimize timing errors and jitter during digital transmission.

For even more advanced systems, the T10 accepts 10MHz and 25MHz external master clocks and supports both 50Ω and 75Ω impedance, allowing integration with dedicated audiophile clock generators.

High-Resolution Digital Output

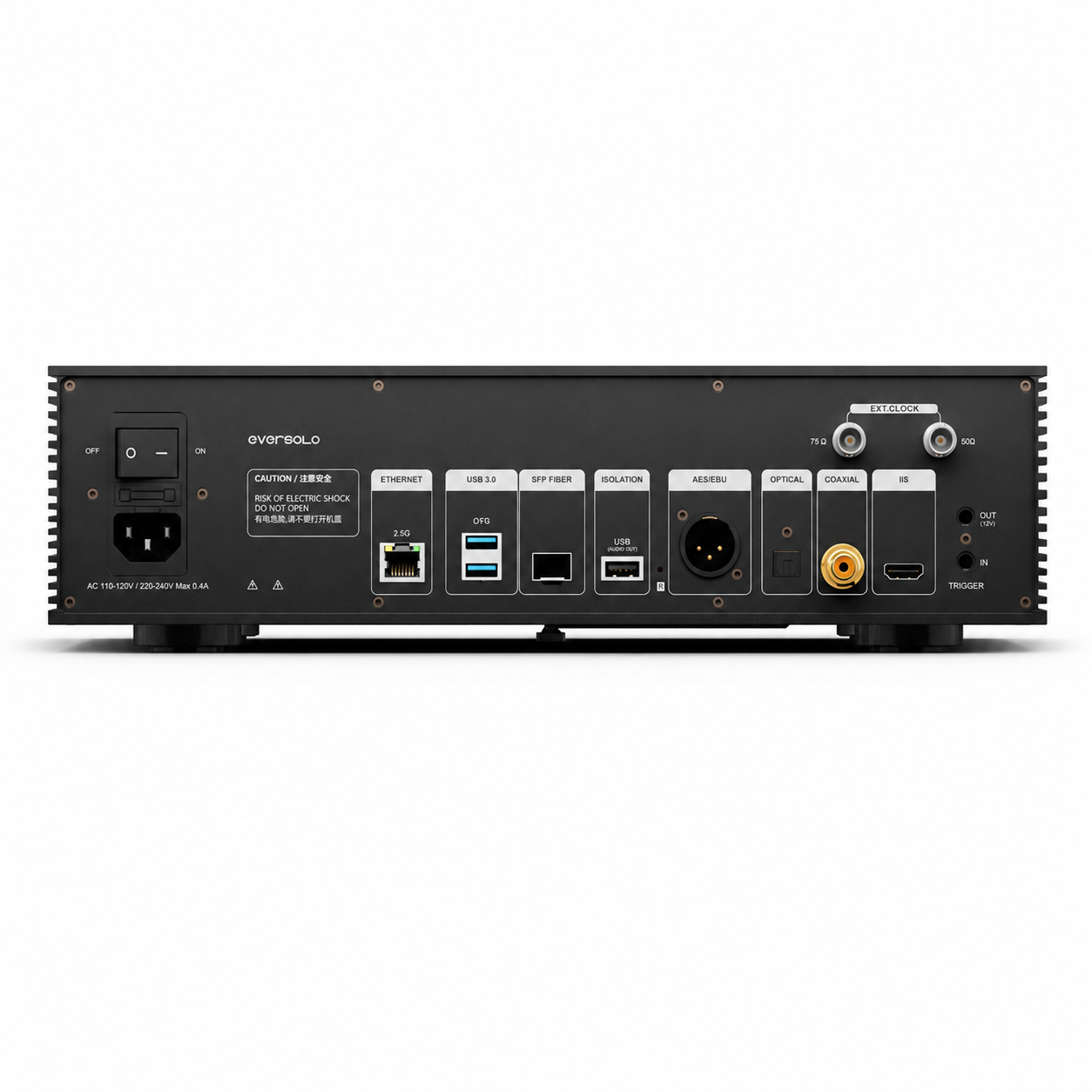

The T10 offers an extensive selection of digital interfaces for connecting external DACs:

• USB Audio Output: up to DSD512 Native and PCM 768kHz/32-bit
• IIS Output: up to DSD512 Native and PCM 768kHz/32-bit
• AES/EBU: up to PCM 192kHz/24-bit and DoP64
• Coaxial: up to PCM 192kHz/24-bit and DoP64
• Optical: digital output connectivity
• 8 selectable IIS modes for compatibility with different DAC architectures

System-Wide PCM Upsampling

The T10 features Eversolo’s evosample™ processing with system-wide PCM upsampling of up to 16×. Upsampling can be configured independently for USB Audio, IIS, and S/PDIF outputs, allowing the digital signal to be optimized for the connected DAC and interface.

High-Speed Network Architecture

For large high-resolution libraries and premium streaming, the T10 includes:

2.5 Gigabit Ethernet, dual-band Wi-Fi 6, and an SFP fiber network interface. Fiber networking provides an additional option for electrically isolating the streamer from network equipment in sophisticated Hi-Fi installations.

Massive Internal Storage Expansion

Two internal M.2 NVMe 2280 SSD slots support up to 16TB total storage, allowing the T10 to become the central music library for even very large high-resolution collections. SSDs are sold separately.

The system is powered by an octa-core processor with 8GB RAM and 64GB internal eMMC storage, providing fast library navigation and responsive operation.

Premium Streaming Platform

The T10 provides access to major music services including TIDAL, Qobuz, Amazon Music, Apple Music, Deezer, HIGHRESAUDIO, IDAGIO, TuneIn and additional services. It also supports protocols including TIDAL Connect, Qobuz Connect, Spotify Connect Lossless and DLNA.

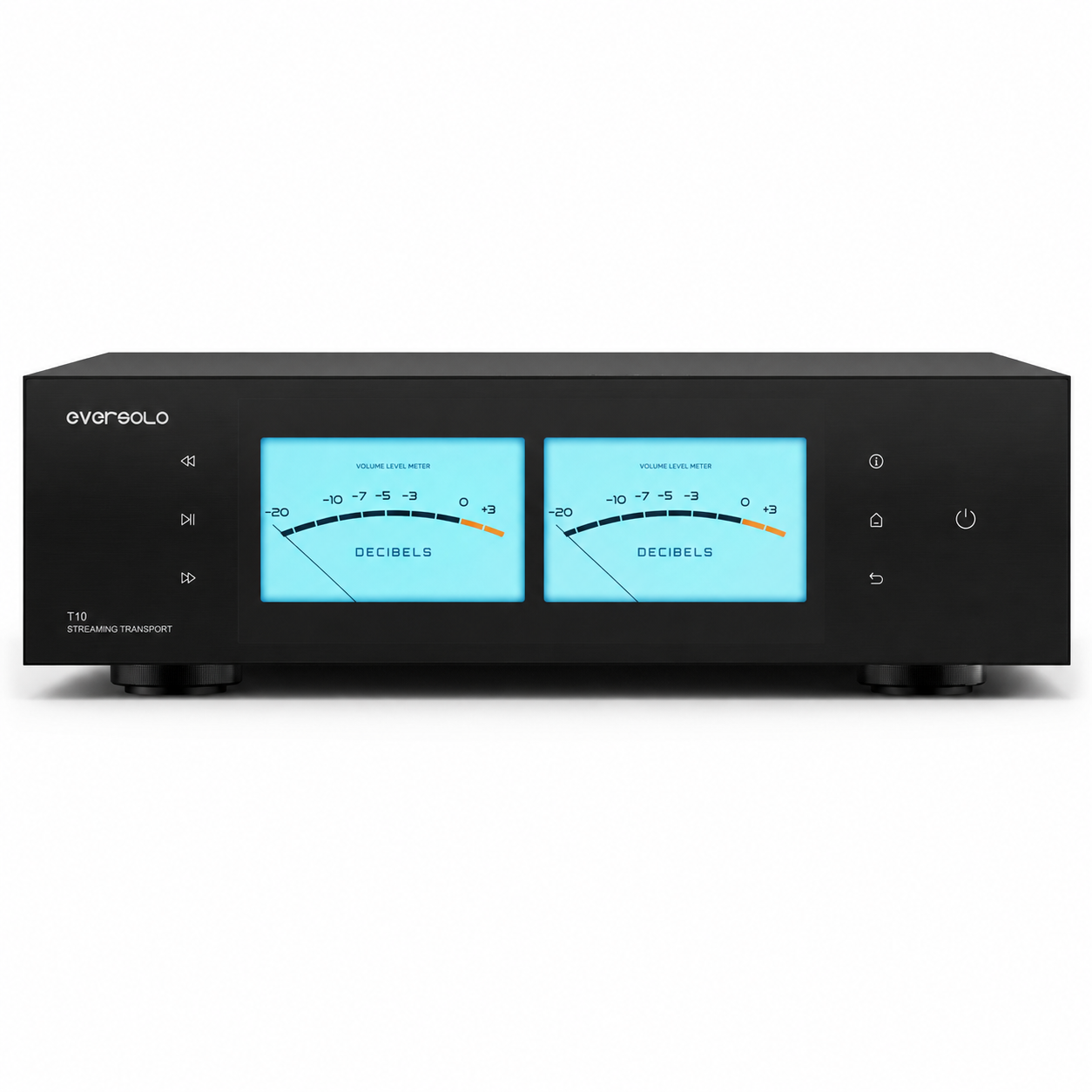

8.6-Inch Touchscreen

A large 8.6-inch LCD touchscreen provides direct access to playback controls, music libraries, streaming services, system settings, album artwork, VU meters, spectrum displays, and other visualizations.

The T10 can also be controlled through the Eversolo Control App on compatible smartphones and tablets.

Key Features

• Reference-grade dedicated streaming transport
• Custom O-type linear power supply
• OCXO precision clock + PLL architecture
• External 10MHz / 25MHz master clock input
• 50Ω / 75Ω external clock compatibility
• Up to DSD512 Native
• Up to PCM 768kHz / 32-bit
• System-wide up to 16× PCM upsampling
• Isolated USB Audio output
• IIS digital output with 8 selectable modes
• AES/EBU, Coaxial and Optical outputs
• 2.5Gb Ethernet
• SFP fiber networking
• Dual-band Wi-Fi 6
• Dual M.2 NVMe SSD slots
• Up to 16TB storage expansion
• 8GB RAM + 64GB eMMC
• Large 8.6" LCD touchscreen
• Major Hi-Res streaming services
• Advanced local music-library management
• Eversolo Control App
• Aluminum-alloy chassis

Specifications

Specifications are based on Eversolo's current documentation.

Why Choose the Eversolo T10?

The T10 is designed for listeners who already own a premium DAC and want a dedicated source optimized specifically for streaming, local-file playback, clock accuracy, digital isolation, and high-quality digital output.

Its combination of OCXO clocking, isolated digital interfaces, fiber networking, massive SSD expansion, high-resolution output and Eversolo's polished software platform makes it a compelling digital front end for a serious two-channel Hi-Fi system.
