Eversolo DMP-A6 Gen 2 Hi-Fi Music Streamer, DAC & Preamplifier

High-Resolution Streaming. Precision DAC Performance. Complete Digital Music Control.

The Eversolo DMP-A6 Gen 2 is a versatile high-fidelity music streamer, DAC, and digital preamplifier designed to serve as the centerpiece of a modern Hi-Fi system. Building on the popular original DMP-A6, the Gen 2 introduces an upgraded ultra-low-noise linear power supply, HDMI ARC, 12V trigger output, Wake-on-LAN, and enhanced system integration while retaining Eversolo’s intuitive 6-inch touchscreen interface.

At its core are dual ESS ES9038Q2M DAC chips, with independent processing for the left and right channels, paired with a fully balanced audio architecture and XMOS XU316 USB interface. The DMP-A6 Gen 2 supports high-resolution playback up to DSD512 and PCM 768kHz/32-bit, making it an exceptionally capable digital source for both dedicated two-channel systems and sophisticated AV installations.

Dual ES9038Q2M DAC Architecture

The DMP-A6 Gen 2 uses two ESS ES9038Q2M DAC chips, allowing the left and right channels to be processed independently.

Combined with a fully balanced circuit architecture from decoding through analog output, this design delivers excellent dynamic range, low distortion, precise imaging, and detailed musical reproduction. Both balanced XLR and unbalanced RCA preamp outputs are provided for easy integration with power amplifiers, integrated amplifiers, or active loudspeakers.

Ultra-Low-Noise Linear Power Supply

One of the significant upgrades to the Gen 2 is its new linear power supply.

Eversolo specifies power-supply noise below 40μV, providing the sensitive digital and analog circuitry with a cleaner and more stable source of power. The goal is lower interference and improved overall audio performance.

High-Resolution DSD512 & PCM 768kHz/32-Bit Playback

The third-generation USB audio interface utilizes the powerful XMOS XU316 processor and supports:

• Native DSD up to DSD512
• PCM up to 768kHz/32-bit
• MQA format support
• High-resolution USB DAC operation
• USB digital audio output up to DSD512 and PCM 768kHz/32-bit

Dual low-jitter clock synchronization combines high-precision oscillators with Eversolo’s clock-management algorithms to minimize timing errors during digital playback.

EOS Audio Engine

Eversolo’s proprietary EOS Audio Engine is designed to bypass sample-rate-conversion restrictions and preserve the original resolution of supported music sources.

This architecture allows the DMP-A6 Gen 2 to provide high-quality playback from local music libraries as well as compatible third-party music applications and streaming services.

Extensive Music Streaming

The DMP-A6 Gen 2 brings your streaming services and local music collection together through a single interface.

Supported services and technologies include TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Deezer, SoundCloud, Presto Music, Apple Music, Internet Radio, Roon Ready, Spotify Connect, TIDAL Connect and DLNA, among others. Service availability can vary by region and software version.

Network storage support includes SMB, NFS, WebDAV and UPnP, along with integrations for network and cloud-based music libraries.

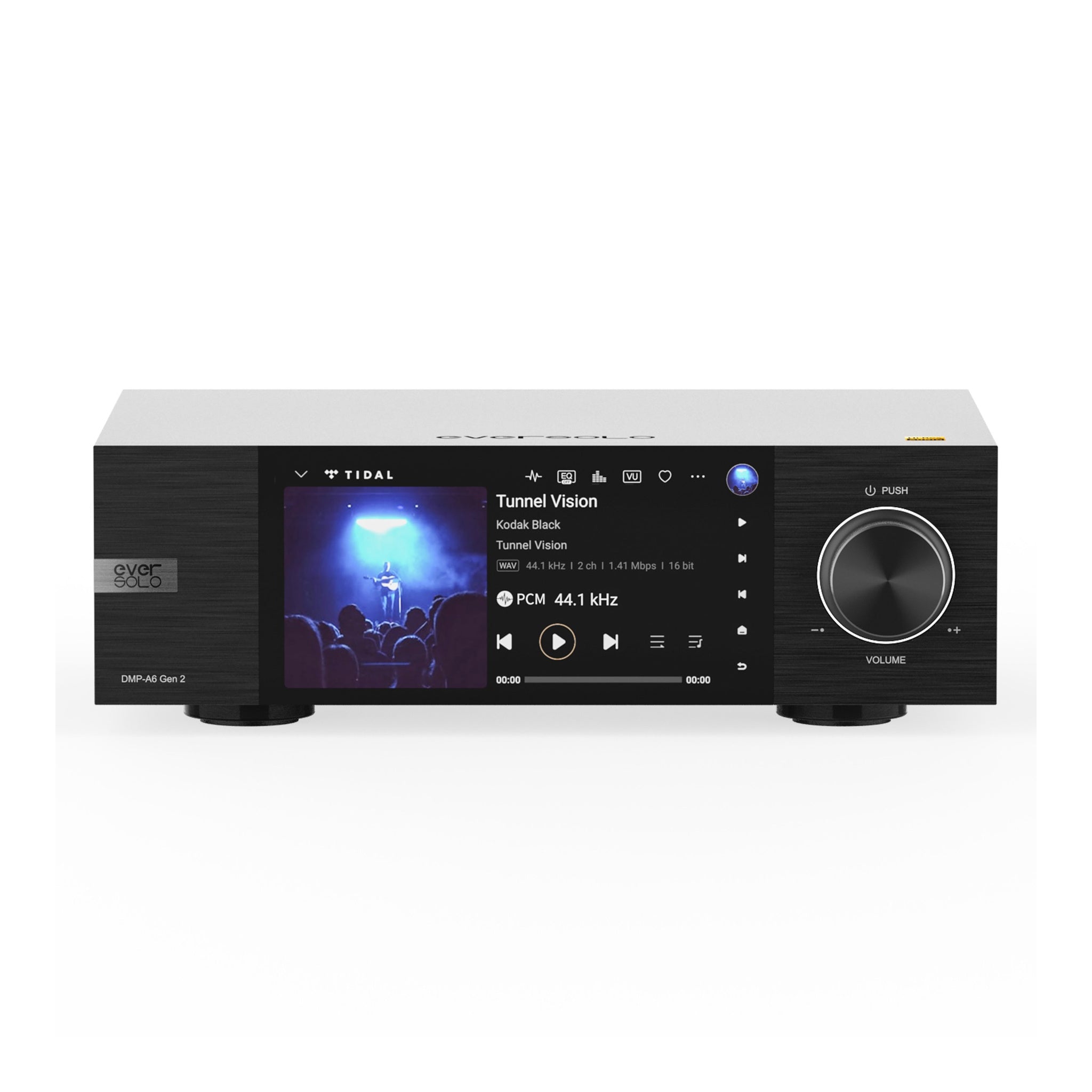

6-Inch Full-Color Touchscreen

A large 6-inch LCD touchscreen provides direct access to playback controls, album artwork, system settings, music browsing, VU meters, and other playback information.

The DMP-A6 Gen 2 can also be operated using Eversolo's mobile and tablet apps, making it equally convenient from the listening position.

Expandable Internal Music Storage

For listeners who maintain a large local high-resolution music library, the DMP-A6 Gen 2 includes an internal M.2 NVMe SSD slot.

This allows music to be stored directly inside the streamer, reducing the need for a separate computer or NAS for many installations. Eversolo's current product specification lists support for up to 8TB M.2 NVMe storage.

It also includes 4GB DDR4 memory and 32GB eMMC internal storage for the operating system and applications.

HDMI ARC & Home Theater Integration

The Gen 2 adds HDMI ARC, allowing compatible televisions to send stereo audio directly to the DMP-A6 Gen 2 at up to PCM 192kHz/24-bit.

It also provides an HDMI audio output capable of DSD64 Native multichannel and PCM up to 192kHz multichannel, with output up to 5.1 channels.

A 12V trigger output and Wake-on-LAN (WOL) further improve integration with amplifiers and complete audio systems.

External USB CD Playback & Ripping

Connect a compatible external USB optical drive and the DMP-A6 Gen 2 can be used to play CDs or rip discs to your digital music library.

This provides an easy way to bring an existing physical CD collection into a modern digital music system.

Key Features

• Dual ESS ES9038Q2M DACs
• Fully balanced audio architecture
• XMOS XU316 USB audio processor
• Up to DSD512 Native
• Up to PCM 768kHz/32-bit
• Ultra-low-noise linear power supply
• Dual low-jitter clock architecture
• Eversolo EOS Audio Engine
• EVC precision volume control engine
• 6-inch LCD touchscreen

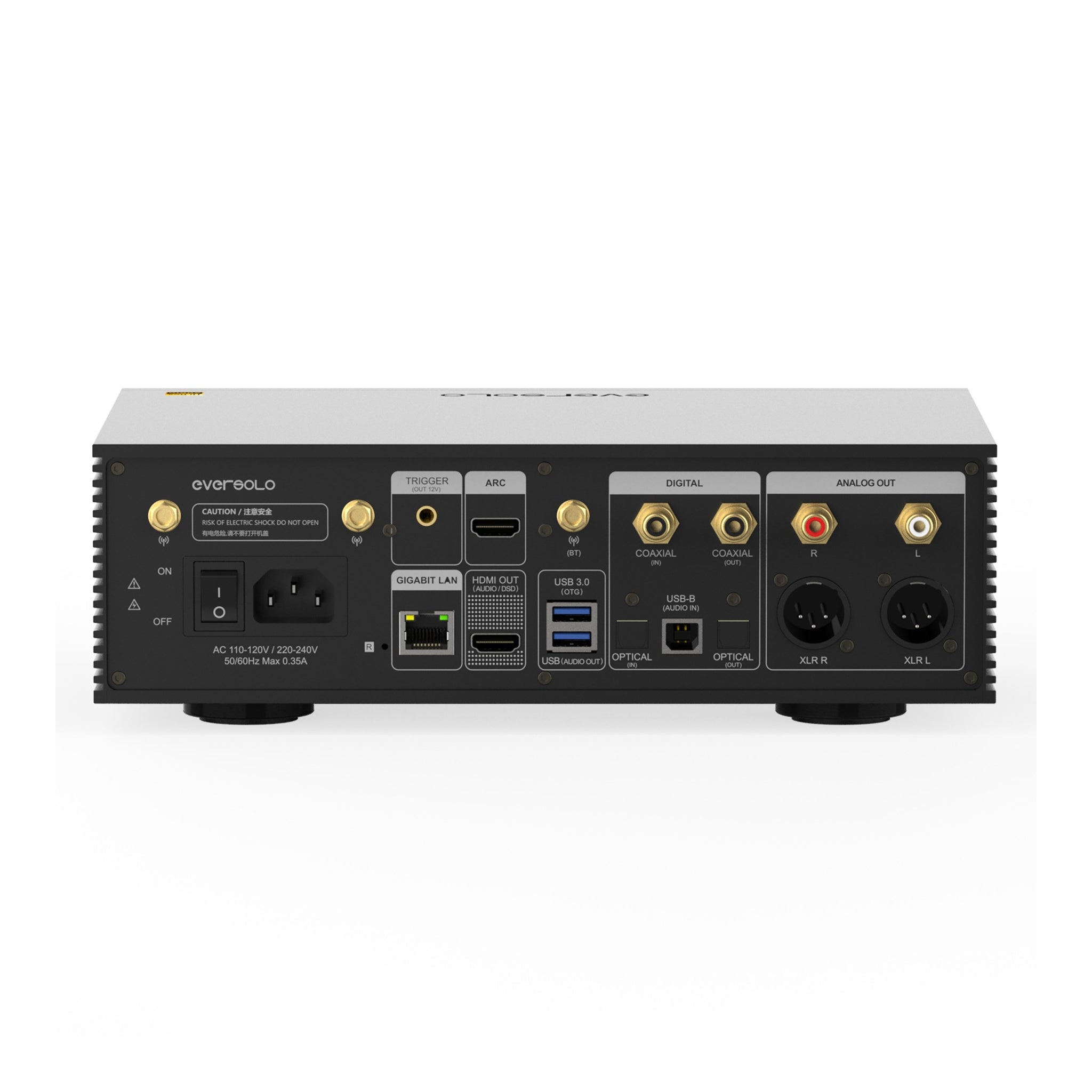

• Balanced XLR and unbalanced RCA analog outputs
• HDMI ARC input
• HDMI multichannel audio output up to 5.1
• USB, coaxial and optical digital connectivity
• Roon Ready
• Spotify Connect and TIDAL Connect
• Extensive integrated streaming services
• SMB, NFS, WebDAV and UPnP support
• M.2 NVMe internal SSD expansion
• Gigabit Ethernet
• Dual-band Wi-Fi
• Bluetooth 5.0
• External USB CD playback and ripping
• 12V trigger output
• Wake-on-LAN control

Specifications

Specifications are based on Eversolo's current product documentation.

The Grid HiFi

The Eversolo DMP-A6 Gen 2 is an excellent choice for anyone looking to build a modern high-resolution digital audio system without requiring separate streamer, DAC, and preamplifier components.

Available from The Grid HiFi in Houston, Texas. Contact our team for pricing, availability, system matching, and expert advice on integrating the DMP-A6 Gen 2 with your amplifier, active speakers, DAC, or existing Hi-Fi system.
