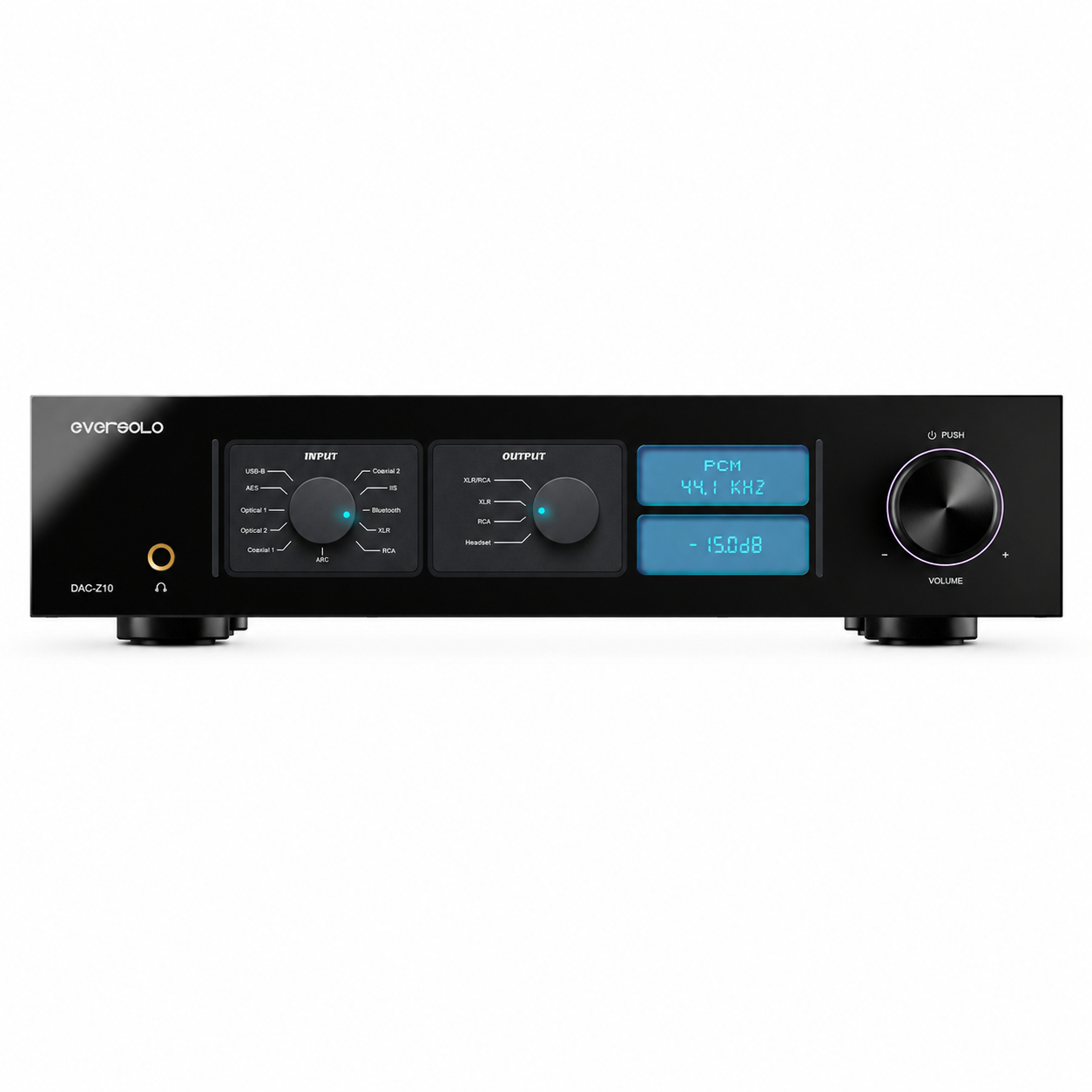

Eversolo DAC-Z10 High-End DAC & Preamplifier

Precision Engineering. Authentic Sound.

The Eversolo DAC-Z10 is a reference-grade digital-to-analog converter, fully balanced preamplifier, and headphone amplifier engineered for high-performance HiFi systems. Built around Eversolo’s Fully Isolated Architecture (FIA™), the DAC-Z10 separates its digital and analog circuitry to minimize interference, lower the noise floor, and preserve the finest musical details.

At its core, independent AK4191 + AK4499 DAC modules are dedicated to the left and right channels. Combined with three independent linear power supplies and precision R2R analog volume control, the DAC-Z10 delivers exceptional channel separation, dynamic range, and signal purity.

Dual-Mono AKM DAC Architecture

Each audio channel uses its own AK4191 + AK4499 decoding stage, creating a fully balanced, independent left/right signal architecture.

The DAC-Z10 supports:

• PCM up to 768kHz / 32-bit
• Native DSD512
• 130 dB dynamic range via XLR
• THD+N as low as 0.00008%
• Fully balanced analog architecture

This sophisticated design combines extremely high resolution with the natural and refined presentation associated with AKM's Velvet Sound™ technology.

Eversolo FIA™ Fully Isolated Architecture

The DAC-Z10 uses Eversolo's Fully Isolated Architecture to reduce interaction between critical sections of the audio circuitry.

Three independent toroidal linear power supplies separately power the:

• Left audio channel
• Right audio channel
• Digital/system circuitry

This approach helps maintain an exceptionally low-noise environment throughout the signal path.

Precision R2R Analog Volume Control

Rather than relying solely on conventional digital attenuation, the DAC-Z10 incorporates a high-precision R2R resistor-array volume control system.

Separate R2R networks for the left and right channels provide precise analog-level volume adjustment while maintaining signal integrity across different listening levels.

Fully Balanced Preamplifier

The DAC-Z10 is more than a standalone DAC. Its integrated fully balanced analog preamplifier allows it to become the control center of a high-end two-channel system.

Both balanced XLR and unbalanced RCA analog inputs and outputs are provided, with up to +10 dB of analog gain.

The DAC-Z10 can therefore be connected directly to a power amplifier or compatible active loudspeakers without requiring a separate preamplifier.

Eversolo Precision Core™

Accurate digital timing is handled by Eversolo's Precision Core™, combining:

OCXO temperature-controlled crystal oscillator + PLL technology + FPGA clock reconstruction

The DAC-Z10 also supports external 10 MHz and 25 MHz master clocks, with selectable 50Ω or 75Ω impedance, providing additional integration options for advanced reference-level digital systems.

Extensive Digital Connectivity

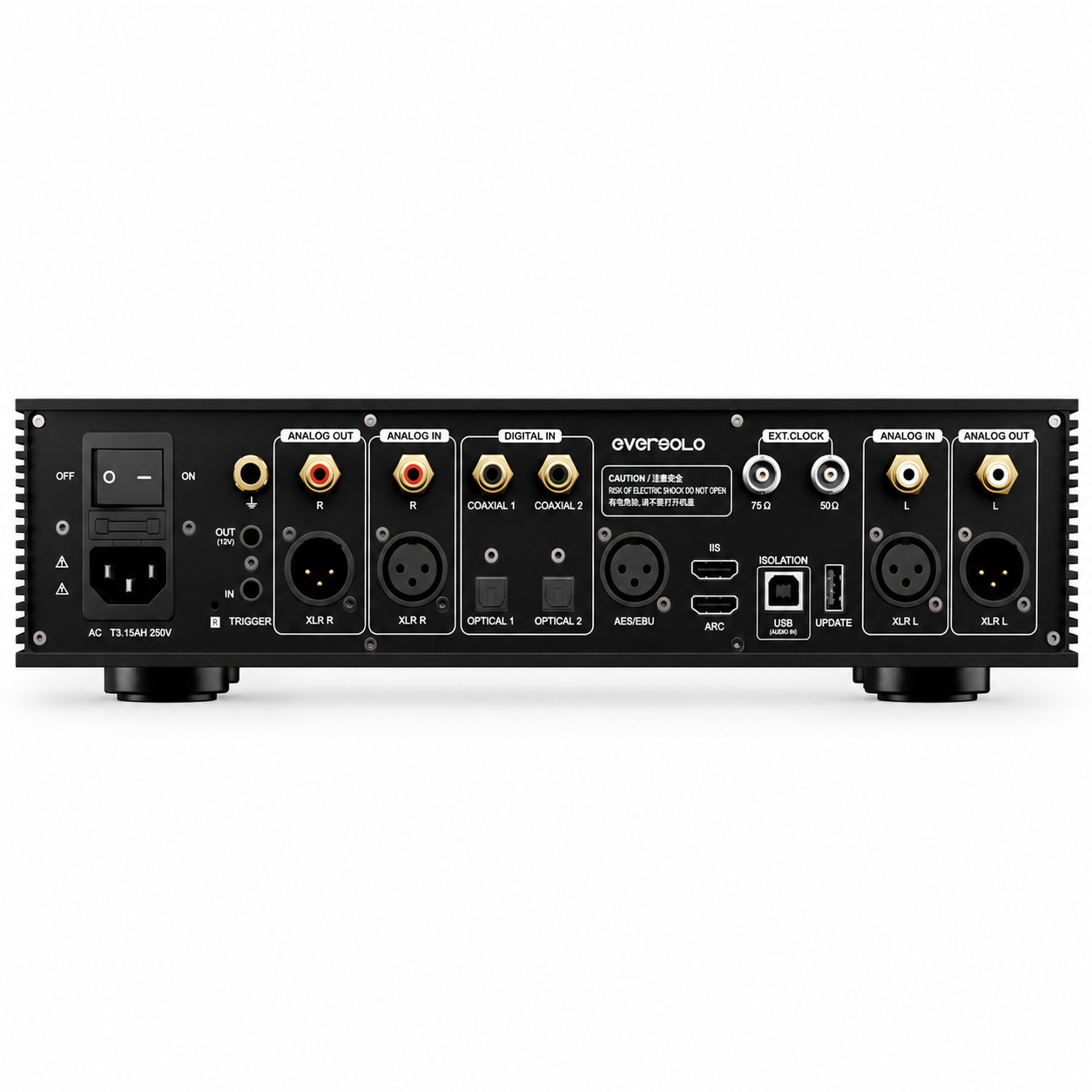

The DAC-Z10 provides a comprehensive selection of digital inputs:

• USB-B Audio
• IIS
• AES/EBU
• Dual Coaxial
• Dual Optical
• HDMI ARC/eARC
• Bluetooth 5.0
• External 10 MHz / 25 MHz clock input

USB and IIS support playback up to PCM 768kHz/32-bit and Native DSD512.

HDMI ARC/eARC

HDMI ARC/eARC allows the DAC-Z10 to become part of a premium TV and two-channel entertainment system.

Connect a compatible television directly to the DAC-Z10 and enjoy TV, movies, games, and music through your high-performance stereo system.

Dedicated Headphone Amplifier

A dedicated 6.35mm headphone amplifier supports headphones from approximately 16–300Ω, with selectable Low, Mid, and High gain modes.

High-gain output reaches up to 1 watt into 16Ω or 32Ω, giving the DAC-Z10 the flexibility to drive a wide range of premium headphones.

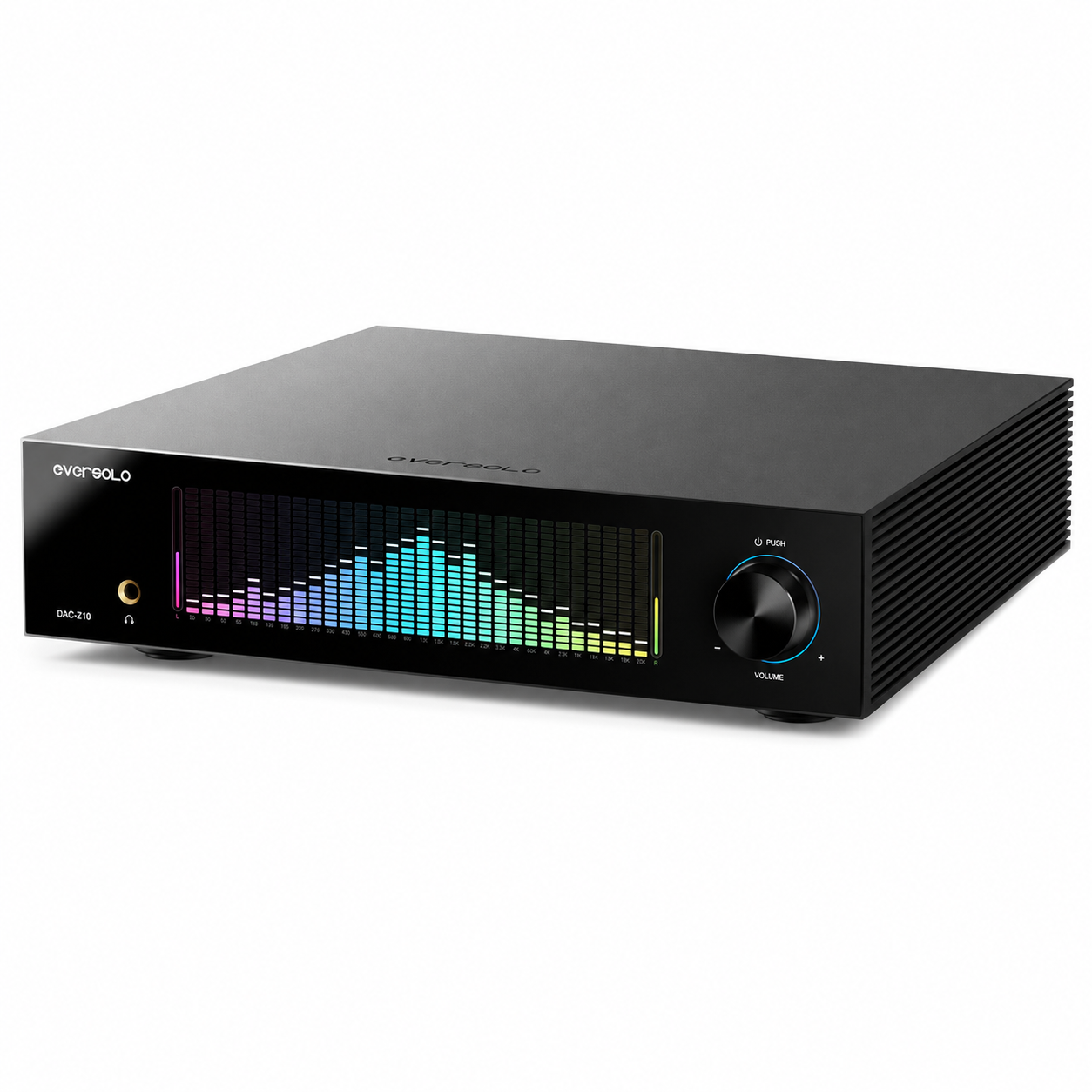

8.8-Inch IPS Touchscreen

A large 8.8-inch IPS touchscreen provides intuitive access to input selection, volume, signal information, settings, VU meters, spectrum displays, and signal-routing information.

Control is also available through the Eversolo mobile app and supplied remote control.

Key Features

• Dual independent AK4191 + AK4499 DAC architecture
• Fully balanced left/right signal paths
• Eversolo FIA™ Fully Isolated Architecture
• Three independent linear power supplies
• Precision dual-channel R2R analog volume control
• Fully balanced preamplifier
• PCM up to 768kHz / 32-bit
• Native DSD512
• OCXO + PLL + FPGA clock architecture
• External 10 MHz / 25 MHz clock support
• XLR and RCA analog inputs
• XLR and RCA preamp outputs
• USB-B, IIS, AES/EBU, Optical and Coaxial digital inputs
• HDMI ARC/eARC
• Bluetooth 5.0
• Dedicated headphone amplifier
• 8.8" IPS touchscreen
• Mobile app and remote control
• 12V Trigger In/Out
• Aviation-grade aluminum chassis

Specifications

DAC: Dual AK4191 + AK4499
Display: 8.8" IPS touchscreen
USB/IIS Resolution: Up to PCM 768kHz/32-bit & DSD512
Optical/Coaxial/AES: Up to PCM 192kHz/24-bit & DSD64 DoP
XLR Output: 5 Vrms @ 0dBFS
RCA Output: 2.5 Vrms @ 0dBFS
XLR SNR: 130 dB
XLR DNR: 130 dB
XLR THD+N: 0.00008% @ 1kHz
Analog Inputs: XLR, RCA
Analog Outputs: XLR, RCA
Headphone Output: 6.35mm
Recommended Headphone Impedance: 16–300Ω
Bluetooth: Qualcomm QCC5125, Bluetooth 5.0
Power Supply: Triple ultra-low-noise linear power supplies
Dimensions: 365 × 310 × 78 mm
Power: AC 110–240V, 50/60Hz

Available at The Grid HiFi

Experience the Eversolo DAC-Z10 at The Grid HiFi. Our HiFi specialists can help you pair the DAC-Z10 with the right streamer, power amplifier, speakers, and cabling to build a high-performance two-channel system.

Contact The Grid HiFi for current pricing, availability, system recommendations, and professional HiFi consultation.
