Eversolo AMP-F10 Class AB Stereo Power Amplifier

Eversolo AMP-F10 Class AB Stereo Power Amplifier

The Eversolo AMP-F10 is a flagship high-power stereo amplifier engineered for serious two-channel Hi-Fi systems. Combining a Class AB design with Class A bias, a massive 1000W dual-channel independent linear power supply, high-current MOSFET output stages, and flexible stereo or bridged operation, the AMP-F10 delivers exceptional authority, control, and musical detail.

Powerful, Refined Performance

The AMP-F10 delivers 200 watts per channel into 8Ω, 320 watts per channel into 4Ω, and 450 watts per channel into 2Ω. For systems demanding even greater output, bridged operation provides up to 650W into 8Ω or an impressive 950W into 4Ω.

This combination of high power and current capability makes the AMP-F10 an excellent choice for demanding floorstanding loudspeakers and reference-level stereo systems.

Key Features

• Class AB amplification with Class A bias
• 200W × 2 @ 8Ω
• 320W × 2 @ 4Ω
• 450W × 2 @ 2Ω
• 650W @ 8Ω bridged
• 950W @ 4Ω bridged
• Massive 1000W dual-channel independent linear power supply
• 5 pairs of precision-matched high-current MOSFETs per channel
• Ultra-low 0.008% THD+N @ 1kHz
• ≥113dB signal-to-noise ratio
• Exceptional >600 damping factor
• Balanced XLR and unbalanced RCA inputs
• Selectable 23dB / 29dB gain
• Advanced DC filtering circuit
• Dual differential amplification architecture
• Stereo and high-power bridged operation
• 12V Trigger In/Out
• Heavy-duty aluminum construction

1000W Independent Linear Power Supply

At the heart of the AMP-F10 is a substantial 1000W linear power supply with independent power delivery for the two channels. The design helps minimize interaction between the left and right channels while providing the current reserves needed for demanding dynamic passages.

The amplifier also incorporates an advanced DC filtering circuit to reduce low-frequency DC interference from the incoming AC supply and minimize unwanted transformer hum.

Exceptional Speaker Control

With a damping factor of greater than 600, the AMP-F10 provides excellent control over loudspeaker drivers. The result is authoritative bass, precise transient response, and greater definition even when driving demanding speakers at higher listening levels.

Each channel uses five pairs of precision-matched high-current MOSFETs, designed to distribute current evenly while maintaining low distortion and consistent performance.

Stereo or Monoblock Power

The AMP-F10 can be used as a powerful conventional stereo amplifier or switched to bridged operation for significantly greater output.

For a reference-level system, two AMP-F10 amplifiers can be configured for bridged operation, providing up to 950 watts into 4Ω per amplifier. This gives the system tremendous headroom for large, power-hungry loudspeakers.

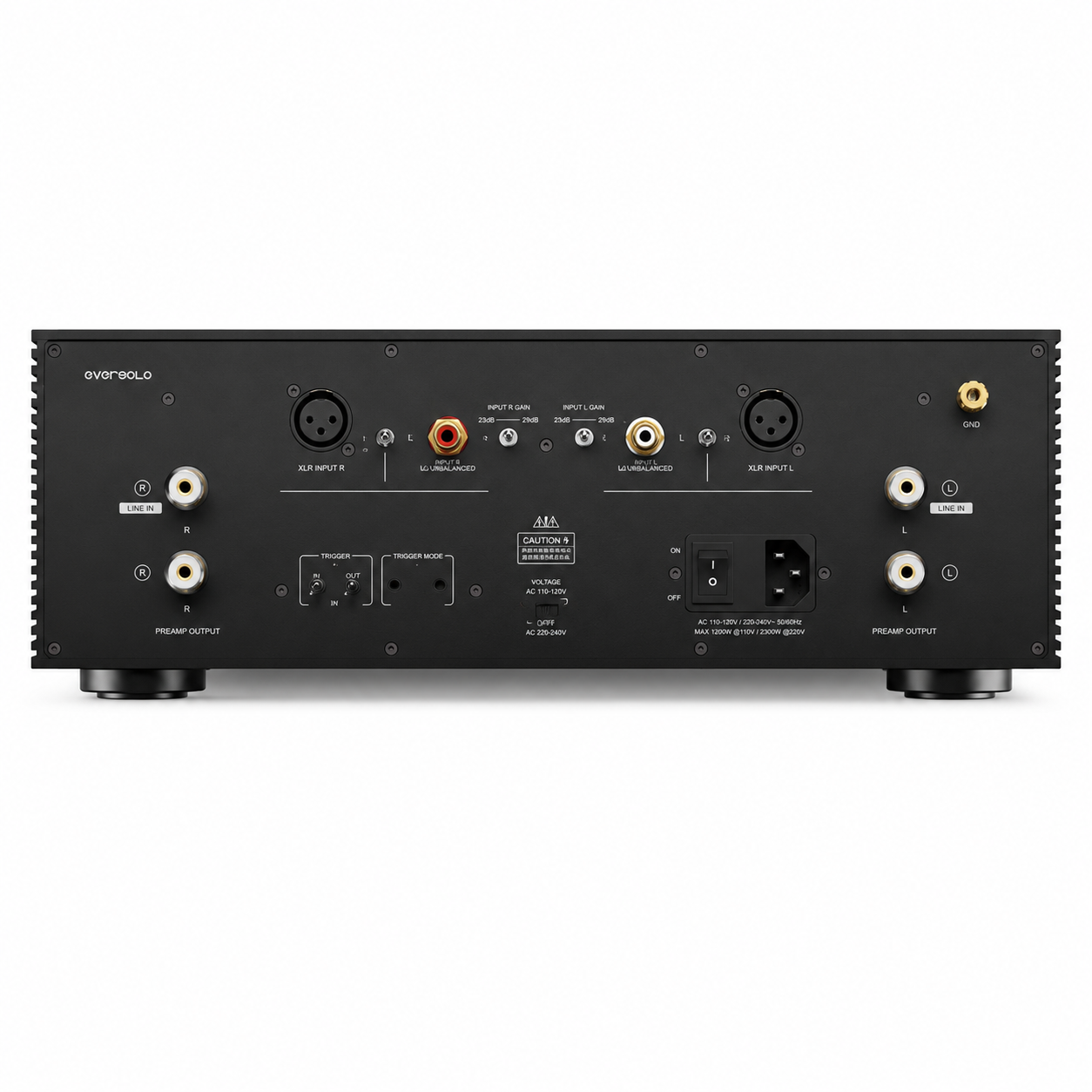

Balanced & Unbalanced Connectivity

Both XLR balanced and RCA unbalanced inputs are provided, allowing the AMP-F10 to integrate easily with a wide range of premium preamplifiers, DACs, and network players.

It is particularly well suited for pairing with Eversolo source components such as the DMP-A10, creating a complete high-performance Eversolo separates system. Eversolo itself describes the AMP-F10 as a complementary amplifier for the DMP-A10.

Specifications

Reference-Level Power for High-End Systems

The Eversolo AMP-F10 combines substantial output power with low distortion, high damping, balanced circuitry, and massive power reserves. Whether used as a 200W-per-channel stereo amplifier or configured as a high-power bridged amplifier, it is designed to provide the control and dynamic capability required by premium loudspeakers.
