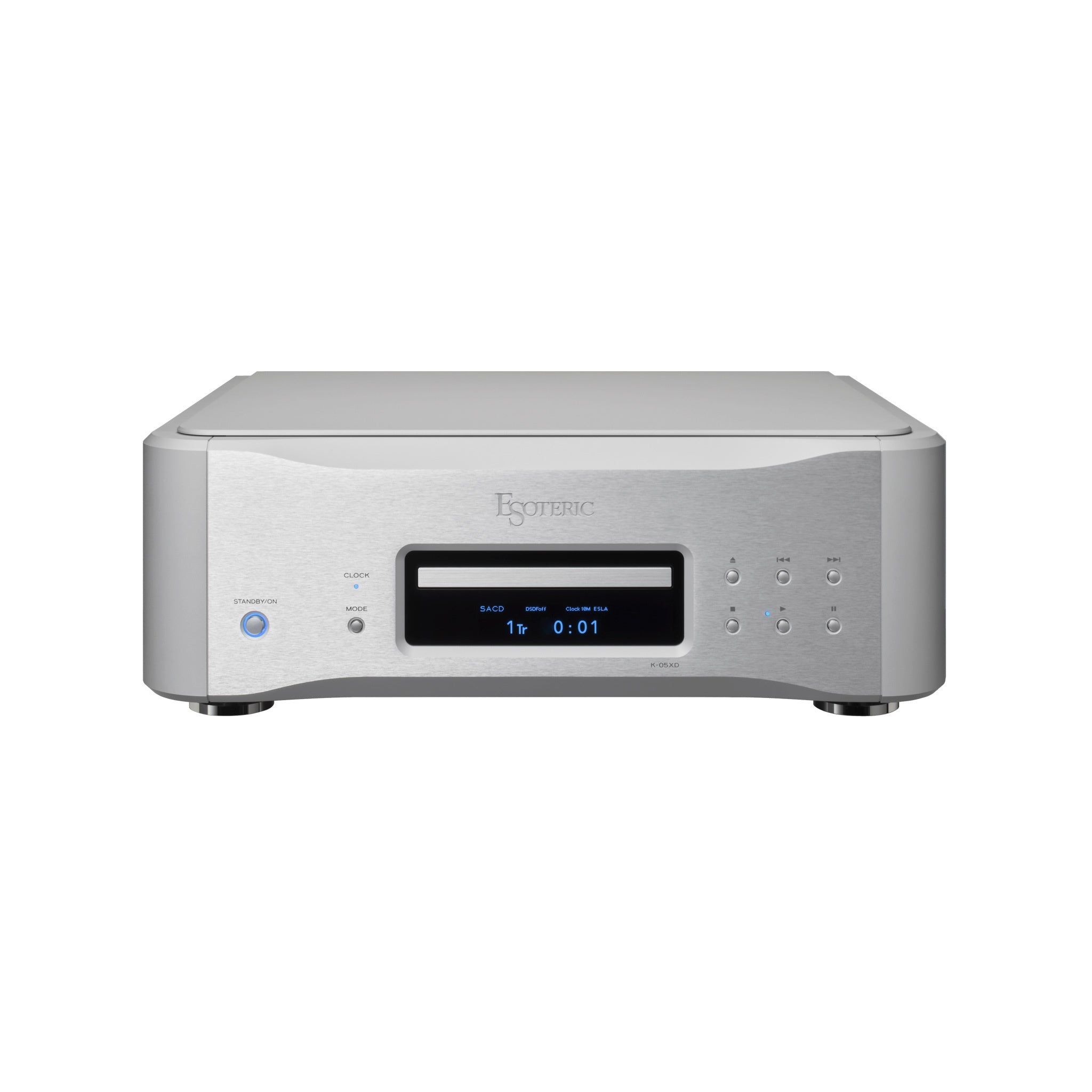

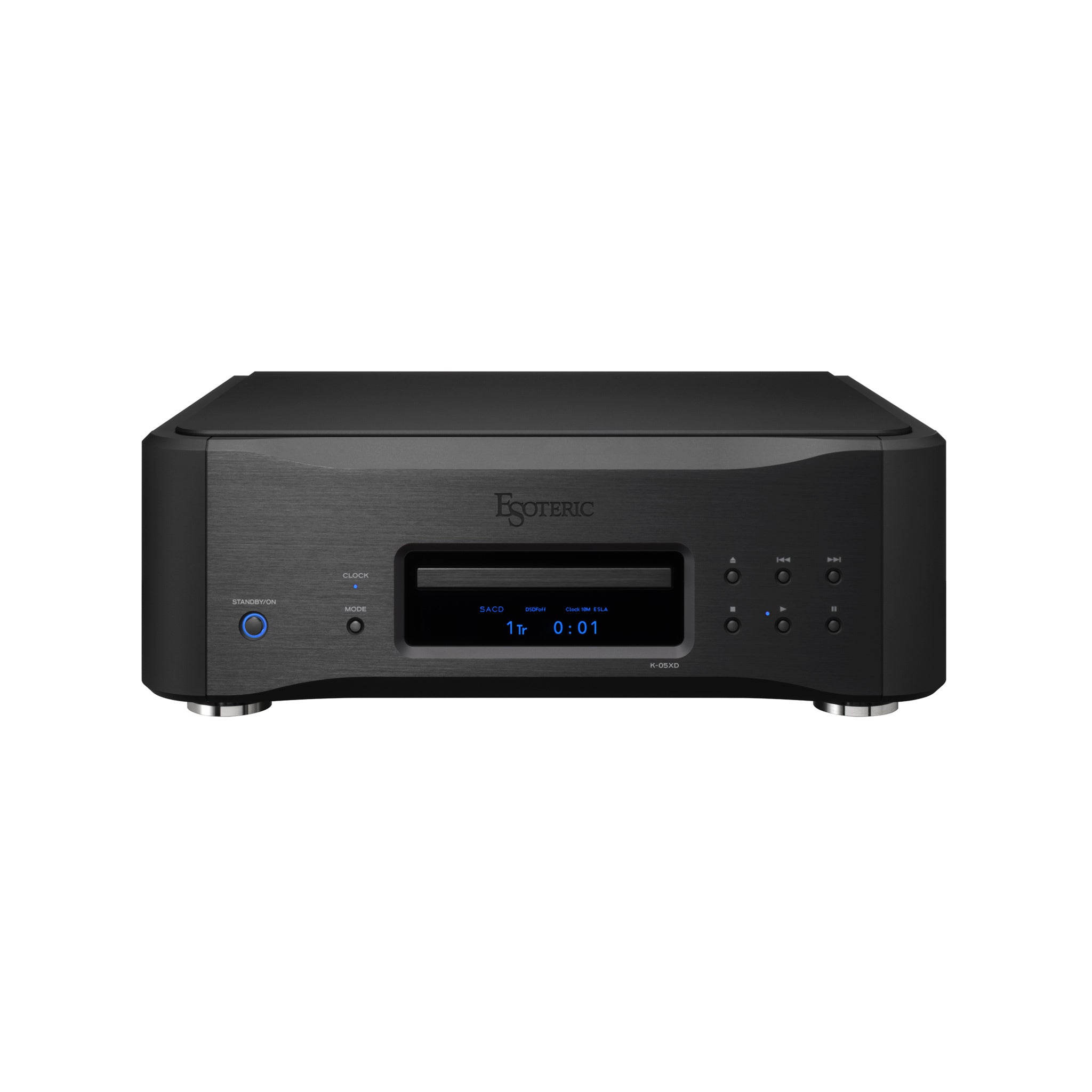

ESOTERIC K-05XD Super Audio CD/CD Player

ESOTERIC K-05XD Super Audio CD/CD Player

Flagship Technology, Refined for the Heart of the K Series

The ESOTERIC K-05XD represents a complete evolution of one of ESOTERIC’s most celebrated digital players. Built on an entirely redesigned platform, the K-05XD brings technologies developed for ESOTERIC’s flagship Grandioso components into a sophisticated, high-performance SACD/CD player and DAC.

At its core are the newly developed VRDS-ATLAS “ATLAS 05” transport, ESOTERIC’s Master Sound Discrete DAC, and the Master Sound Discrete Clock for Digital Player—engineered to deliver exceptional resolution, dynamics, tonal richness, and musical realism.

VRDS-ATLAS “ATLAS 05” Transport

Developed specifically for the K-05XD, the ATLAS 05 is based on the architecture of the VRDS-Reference mechanism used in ESOTERIC’s Grandioso series. Its hybrid aluminum/polycarbonate turntable, rigid 10mm machined-aluminum bridge, low center of gravity, and advanced vibration-control construction provide exceptionally stable and accurate disc playback.

Master Sound Discrete DAC

Rather than relying on a conventional integrated DAC chip, ESOTERIC developed its Master Sound Discrete DAC entirely in-house. The K-05XD uses 16 discrete DAC elements per channel together with proprietary 64-bit/512Fs Delta-Sigma processing, designed to preserve the energy, texture, and natural character of music.

Master Sound Discrete Clock

Derived from technology developed for the flagship Grandioso G1X master clock generator, the K-05XD incorporates ESOTERIC’s proprietary Master Sound Discrete Clock for Digital Player. A 10MHz external clock input also allows integration with a compatible external master clock for even greater system precision.

Powerful Analog Output & ES-Link Analog

The Esoteric-HCLD High Current Line Driver features an ultra-high 2,000 V/μs slew rate, providing exceptional speed and dynamic response. Alongside conventional XLR and RCA outputs, ES-Link Analog provides ESOTERIC’s proprietary current-transmission connection for compatible amplifiers.

Built to Perform

A substantial dual-layer chassis separates sensitive audio circuitry from power-supply components while controlling mechanical vibration and magnetic interference. The power architecture uses two high-capacity toroidal transformers for the analog and digital sections plus a separate EI-core transformer for control circuitry.

Key Features

• VRDS-ATLAS ATLAS 05 SACD/CD transport
• Master Sound Discrete DAC
• Proprietary 64-bit/512Fs Delta-Sigma processing
• Master Sound Discrete Clock for Digital Player
• ES-Link Analog current-transmission output
• Esoteric-HCLD high-current output buffer
• 2,000 V/μs output-buffer slew rate
• Three-transformer power architecture
• Low-feedback discrete DC regulation
• 10MHz external master clock input
• USB DAC with up to DSD 22.5MHz
• MQA decoding, including MQA-CD playback
• Coaxial and optical digital inputs
• XLR and coaxial digital outputs
• RS-232C and trigger control
• RC-1333 remote control
