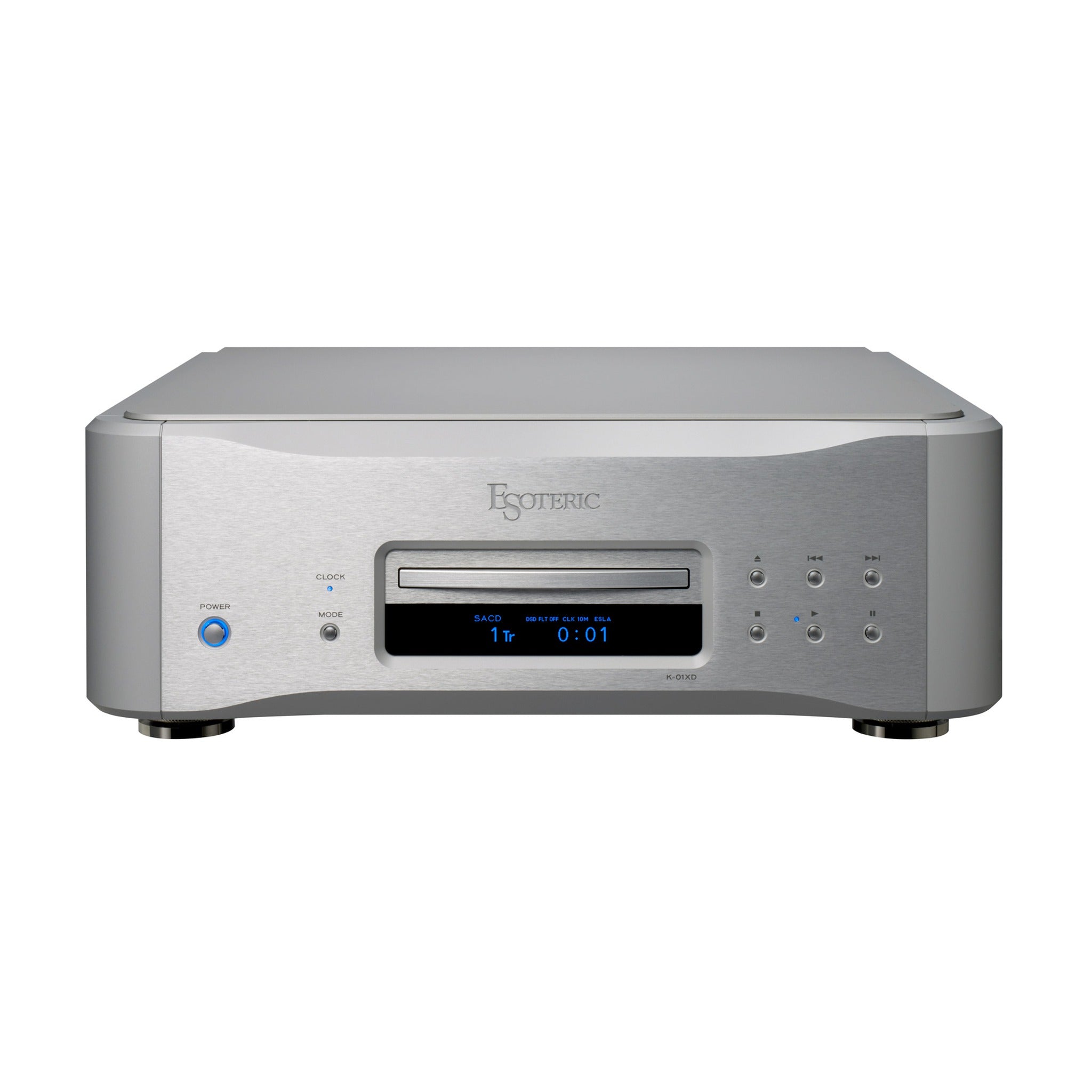

ESOTERIC K-01XD SE Super Audio CD/CD Player

ESOTERIC K-01XD SE Super Audio CD/CD Player

An Iconic ESOTERIC Digital Player, Evolved

The ESOTERIC K-01XD SE combines the brand’s renowned VRDS-ATLAS SACD transport with the in-house Master Sound Discrete DAC, bringing flagship-level digital engineering into one reference-grade player. The SE version further refines the platform with an upgraded discrete clock, improved analog circuitry, and premium component selection for greater presence, dynamics, and musical texture.

VRDS-ATLAS Disc Transport

The K-01XD SE uses ESOTERIC’s VRDS-ATLAS ATLAS 01 transport mechanism, developed to reduce rotational vibration, correct disc warpage, and improve optical pickup accuracy.

Its transport incorporates a 20 mm SS400 steel bridge, a duralumin platter, and a single-point spindle bearing system for high rigidity, low mechanical noise, and extremely stable disc rotation.

Master Sound Discrete DAC

At the core of the K-01XD SE is ESOTERIC’s proprietary Master Sound Discrete DAC architecture.

The DAC uses 32 discrete elements per channel, with individual clock drivers, logic circuits, capacitors, resistors, and associated components kept independent for high processing precision and signal purity.

Its proprietary FPGA-based Delta-Sigma processing supports:

• 64-bit / 512Fs processing
• Up to 22.5 MHz DSD
• Up to 768 kHz PCM

Upgraded SE Analog Circuitry

The SE version features revised analog circuitry using ESOTERIC’s IDM-01 Integrated Discrete-Amplifier Module along with carefully selected premium resistors, capacitors, and other components.

The shortened signal path and optimized analog stage are designed to improve dynamics, clarity, immediacy, and natural tonal texture.

Master Sound Discrete Clock

The K-01XD SE incorporates ESOTERIC’s Master Sound Discrete Clock for Digital Player, based on concepts developed for the Grandioso G1X master clock generator.

It can also synchronize to a compatible external ESOTERIC clock using a 10 MHz reference signal for even greater timing precision.

High-Current Analog Output Stage

The K-01XD SE uses ESOTERIC’s HCLD High Current Line Driver, offering an exceptionally fast 2,000 V/μs slew rate.

Along with conventional XLR and RCA outputs, it supports ES-Link Analog, ESOTERIC’s proprietary current-transmission system designed to reduce the effects of cable impedance and preserve musical energy between source and amplifier.

Four Independent Power Transformers

The K-01XD SE employs four large toroidal transformers, with dedicated power supplies for the left and right DAC channels, transport mechanism, and digital circuitry.

Its low-feedback discrete regulator architecture is supported by 71 EDLC super capacitors with a combined capacitance of 1.85 F, providing substantial energy reserves for improved dynamics and low-frequency resolution.

Standalone DAC Capability

The K-01XD SE is more than an SACD/CD player. Its coaxial, optical, and USB Type-B digital inputs allow it to function as a reference standalone DAC.

Digital processing options include:

• PCM upsampling at 2× / 4× / 8× / 16×
• Maximum PCM rate of 768 kHz
• PCM-to-DSD conversion
• USB support for 22.5 MHz DSD

Reference Chassis Construction

The VRDS-ATLAS mechanism is mounted to a 5 mm steel base plate, while the internal structure uses a double-deck architecture to separate audio circuitry from transformers and power components.

ESOTERIC’s proprietary Pinpoint Feet and a semi-floating top panel further reduce mechanical stress and unwanted vibration.

Key Features

• VRDS-ATLAS ATLAS 01 SACD/CD transport
• 20 mm SS400 steel transport bridge
• Master Sound Discrete DAC
• 32 discrete DAC elements per channel
• 64-bit / 512Fs Delta-Sigma processing
• Up to 22.5 MHz DSD
• Up to 768 kHz PCM
• IDM-01 upgraded analog circuitry
• Master Sound Discrete Clock
• External 10 MHz clock synchronization
• HCLD 2,000 V/μs output stage
• ES-Link Analog output
• XLR and RCA analog outputs
• Four independent toroidal transformers
• 71 EDLC super capacitors / 1.85 F total capacity
• USB, coaxial, and optical inputs
• Standalone DAC capability
• PCM upsampling and PCM-to-DSD conversion
• Semi-floating top panel
• Premium RC-1333 double-face remote control

The Grid HiFi Recommendation

The K-01XD SE is an excellent choice for listeners who want a reference digital source capable of handling both physical media and high-resolution digital playback in one component.

Contact The Grid HiFi for availability, system-matching advice, and recommendations on pairing the K-01XD SE with ESOTERIC amplification, external master clocks, cabling, and reference loudspeakers.
