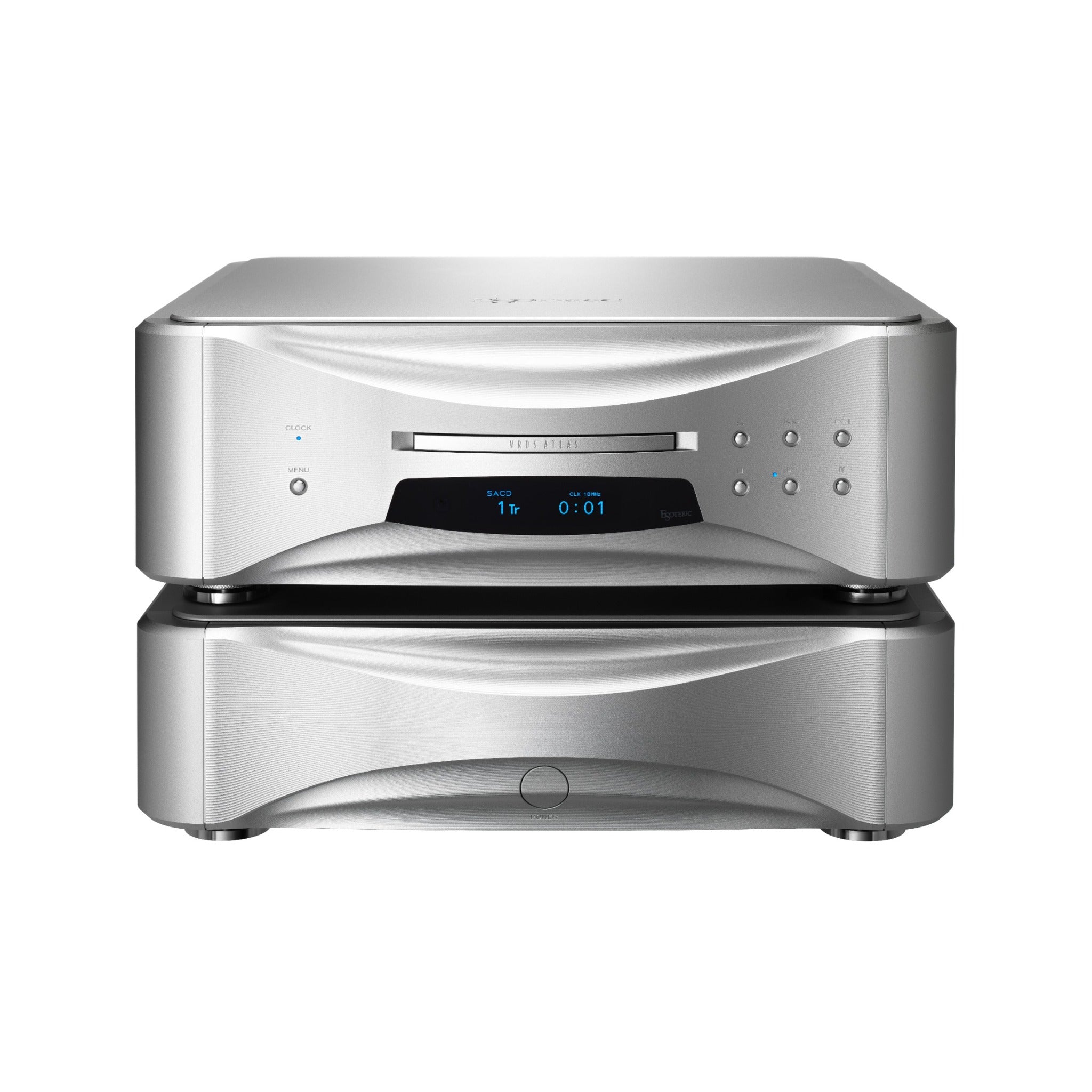

ESOTERIC Grandioso P1X SE Super Audio CD Transport

ESOTERIC Grandioso P1X SE Super Audio CD Transport

Flagship SACD Transport with Separate Power Supply

The ESOTERIC Grandioso P1X SE represents the pinnacle of ESOTERIC’s disc transport engineering. Designed as a reference-grade Super Audio CD/CD transport, the P1X SE combines ESOTERIC’s legendary VRDS-ATLAS mechanism, advanced Master Sound Discrete Clock, ES-Link5 digital transmission, and a dedicated external power supply in an uncompromising dual-chassis design.

Engineered for the highest level of digital playback, the P1X SE focuses on exceptional disc-reading accuracy, ultra-low vibration, precise clocking, and clean power delivery—providing a remarkably transparent and natural digital source for a reference audio system.

VRDS-ATLAS Transport Mechanism

At the heart of the P1X SE is ESOTERIC’s flagship VRDS-ATLAS (Vibration-Free Rigid Disc-Clamping System).

The mechanism clamps the disc to a same-diameter turntable, helping suppress rotational vibration and correct disc warpage while improving optical pickup accuracy. Its exceptionally rigid construction incorporates substantial steel structural components and a solid-machined duralumin turntable.

The complete mechanism weighs approximately 13.5 kg including its base, providing extraordinary mechanical stability and vibration control.

Master Sound Discrete Clock

The P1X SE incorporates ESOTERIC’s Master Sound Discrete Clock for Digital Player, derived from technology developed for the flagship Grandioso G1X master clock generator.

Rather than relying on a conventional off-the-shelf clock module, ESOTERIC uses carefully selected discrete components and a large crystal oscillator to achieve highly precise clock generation with an emphasis on musical expression.

For even greater system performance, the P1X SE can synchronize with an external 10 MHz master clock, including the Grandioso G1X.

ES-Link5 Digital Transmission

ESOTERIC’s proprietary ES-Link5 interface provides ultra-wide-band digital transmission between compatible ESOTERIC components.

Using HDMI connectivity for its proprietary digital interface, ES-Link5 supports signals up to:

• DSD 22.5 MHz
• PCM 768 kHz / 48-bit

Its architecture separately transmits audio data and clock signals, reducing processing requirements at the receiving DAC and helping preserve signal integrity.

Dedicated External Power Supply

The Grandioso P1X SE uses a two-chassis configuration, separating the transport from its power supply.

Moving the power supply away from the main transport chassis helps isolate the sensitive disc-reading mechanism and digital circuitry from transformer-generated vibration and electrical interference.

The dedicated power supply incorporates four independent toroidal transformers, providing clean, robust power to individual circuit sections.

Massive Power Supply Capacity

Low-feedback discrete DC regulators are combined with an extensive bank of EDLC super capacitors.

The P1X SE employs 38 EDLC capacitors with approximately 1.4 F of combined capacity, providing substantial energy reserves and supporting improved resolution, dynamics, and low-frequency performance.

Reference-Grade Chassis Construction

The P1X SE features a substantial multi-layer chassis built from heavy aluminum panels and multiple steel plates for exceptional rigidity and vibration control.

Additional mechanical refinements include:

Semi-Floating Top Panel — A screwless top-panel structure designed to reduce mechanical stress and resonance.

Redesigned Pinpoint Feet — ESOTERIC’s latest mechanical isolation design supports the chassis while minimizing unwanted vibration and structural stress.

Low Center-of-Gravity Architecture — The VRDS-ATLAS mechanism uses a wide, low-profile design to improve mechanical grounding and reduce operating noise.

Premium Double-Faced Remote Control

The included RC-1333 double-faced remote control features a substantial aluminum body with controls positioned on both sides for intuitive operation. It can also control compatible ESOTERIC amplifiers, creating a unified experience within an ESOTERIC reference system.

Key Features

• Reference-grade Super Audio CD/CD transport
• Flagship VRDS-ATLAS disc transport mechanism
• Separate main chassis and dedicated power supply
• Master Sound Discrete Clock for Digital Player
• External 10 MHz clock synchronization
• ES-Link5 proprietary digital transmission
• Up to 22.5 MHz DSD
• Up to 768 kHz / 48-bit PCM via ES-Link5
• Four independent toroidal power transformers
• Low-feedback discrete DC regulators
• 38 EDLC super capacitors with approximately 1.4 F total capacity
• Heavy-duty multilayer chassis
• Semi-floating top panel
• Redesigned ESOTERIC Pinpoint feet
• RC-1333 aluminum double-faced remote control
• Upgrade path available from Grandioso P1X to P1X SE

The Grid HiFi Recommendation

The Grandioso P1X SE is designed for listeners building a no-compromise digital reference system. Pairing and system matching are especially important at this performance level, particularly when selecting the DAC, master clock, cabling, amplification, and power components.

Contact The Grid HiFi for expert system-matching advice, product availability, and recommendations for building a complete ESOTERIC Grandioso reference system.
