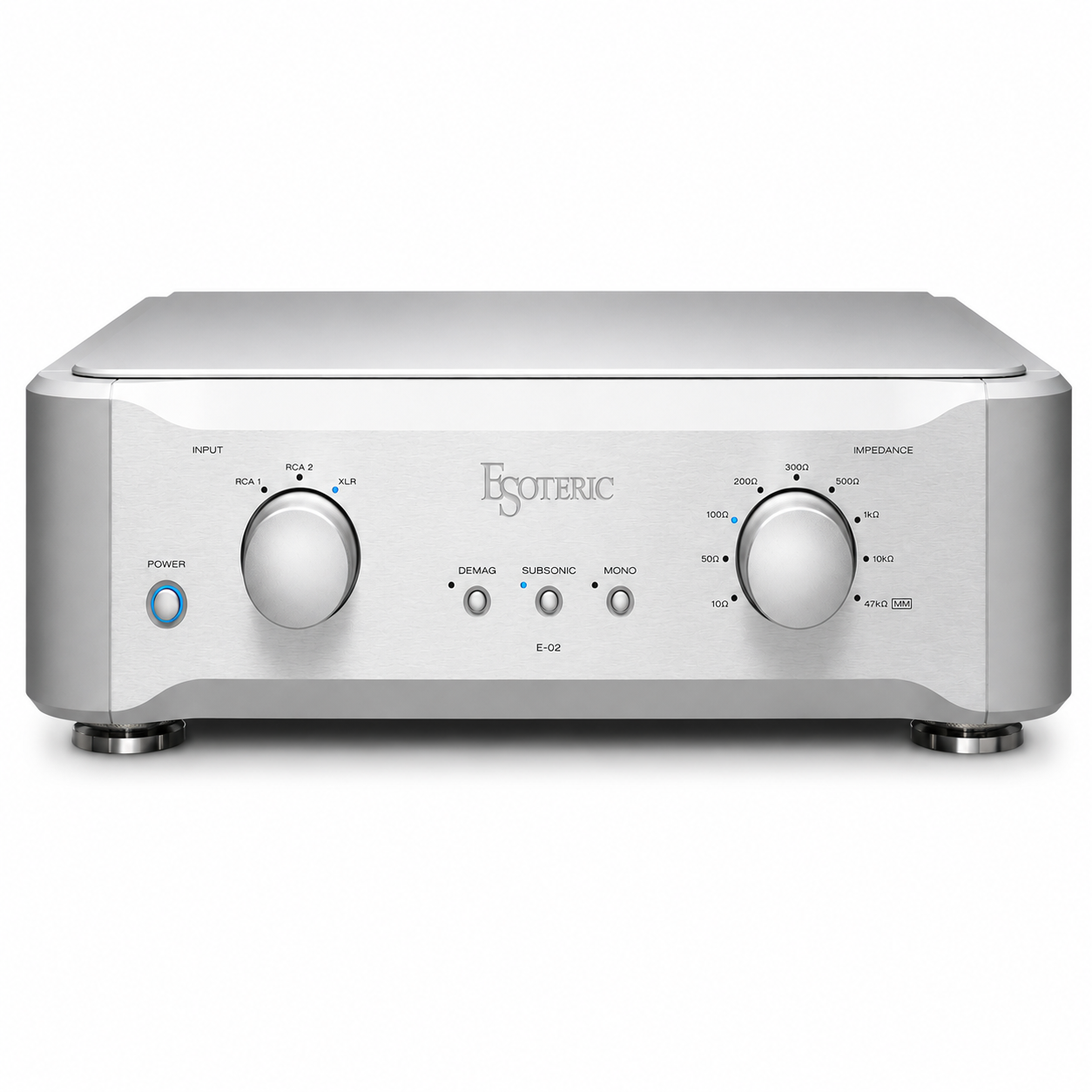

ESOTERIC E-02 Balanced Phonostage Preamplifier

Reference-Grade Analog Performance

The ESOTERIC E-02 is a flagship balanced phono stage preamplifier engineered to extract extraordinary detail, dynamics, and musical expression from vinyl playback. Building on ESOTERIC’s extensive analog expertise, the E-02 combines a fully balanced signal path, dual-mono construction, sophisticated cartridge loading, and ES-LINK Analog in an exceptionally rigid chassis.

Designed especially to handle the extremely low-level signals produced by moving-coil cartridges, the E-02 provides the low noise, high gain, and precise signal integrity demanded by reference analog systems.

Fully Balanced Circuit Design

From input through output, the E-02 employs a fully balanced circuit architecture. This configuration is particularly beneficial when amplifying the delicate output of an MC cartridge, helping minimize noise and interference while maintaining the integrity of the original analog signal.

True Dual-Mono Construction

The left and right channels feature independent:

• Power transformers
• Power supply boards
• Amplifier circuits

This dual-mono architecture provides excellent channel separation while giving each channel a robust, dedicated power supply.

High-Performance MC Head Amplifier & RIAA Stage

At the heart of the E-02 is a newly designed fully balanced MC head amplifier and RIAA amplifier.

The NF-CR RIAA circuit achieves an impressive ±0.2 dB RIAA accuracy while utilizing minimal negative feedback. A high-voltage power supply provides generous dynamic headroom, allowing the E-02 to reproduce everything from subtle low-level information to powerful musical transients.

ESOTERIC-HCLD High Current Line Driver

Borrowing technology from ESOTERIC’s flagship Grandioso preamplifiers, the E-02 incorporates the proprietary HCLD High Current Line Driver with an exceptionally fast 2,000 V/μs slew rate.

In balanced XLR operation, dedicated amplifiers independently drive the hot and cold signals. When using RCA outputs, the amplifiers operate in parallel to maximize output linearity and current capability.

ES-LINK Analog

In addition to conventional RCA and XLR outputs, the E-02 supports ES-LINK Analog, ESOTERIC’s proprietary current-transmission interface.

When paired with compatible ESOTERIC components, ES-LINK Analog takes advantage of the E-02’s high-current HCLD circuitry to provide exceptionally fast and powerful signal transmission.

Three Phono Inputs

The E-02 provides flexible connectivity for sophisticated turntable and cartridge systems:

• 1 × Balanced XLR input – dedicated to MC cartridges
• 2 × RCA phono inputs
• Individual input presets
• Cartridge impedance settings
• Subsonic filter settings
• Mono settings

This makes the E-02 particularly useful for systems using multiple tonearms or cartridges.

Nine Selectable Load Impedances

Precisely match the phono stage to your cartridge with nine selectable impedance settings:

MC: 10Ω, 50Ω, 100Ω, 200Ω, 300Ω, 500Ω, 1kΩ, 10kΩ
MM: 47kΩ

The wide adjustment range allows fine optimization across a broad selection of moving-coil and moving-magnet cartridges.

Advanced Vinyl Playback Functions

The E-02 also incorporates practical features designed specifically for serious vinyl playback, including a DEMAG function for demagnetizing MC cartridge coils or step-up transformers, a 17 Hz subsonic filter, mono playback mode, and selectable RCA, XLR or ES-LINK Analog outputs.

High-Rigidity Chassis

Extremely low-level phono signals are particularly susceptible to vibration and interference. ESOTERIC addresses this with a substantial enclosure featuring:

• Thick aluminum construction
• Carefully optimized internal component placement
• Slit-structured bottom chassis
• ESOTERIC proprietary Pinpoint isolation feet
• Precision-machined aluminum controls

The two large front-panel selector knobs also incorporate a ball-bearing mechanism inspired by ESOTERIC’s renowned VRDS transport technology for exceptionally smooth operation.

Premium Components

Every aspect of the E-02 reflects its reference-level positioning. ESOTERIC employs carefully selected components throughout, including custom power-supply capacitors, precision circuitry, and machined gold-plated RCA terminals.

Key Features

• Fully balanced phono preamplifier architecture
• True dual-mono construction
• Dedicated balanced MC input
• 1 × XLR MC input + 2 × RCA inputs
• Fully balanced MC head amplifier
• NF-CR RIAA equalization
• ±0.2 dB RIAA accuracy
• Nine selectable cartridge load impedances
• ESOTERIC-HCLD output stage
• 2,000 V/μs slew rate
• ES-LINK Analog output
• Balanced XLR and RCA outputs
• DEMAG cartridge demagnetization function
• 17 Hz subsonic filter
• Mono playback mode
• Individual input presets
• High-rigidity aluminum chassis
• ESOTERIC Pinpoint isolation feet
• Premium-grade internal components

Experience ESOTERIC at The Grid HiFi

The ESOTERIC E-02 is an exceptional choice for high-end vinyl systems requiring precise cartridge matching, extremely low noise, and reference-grade analog reproduction.

Contact The Grid HiFi for pricing, availability, cartridge matching, turntable setup, and expert guidance in building your reference analog system.
