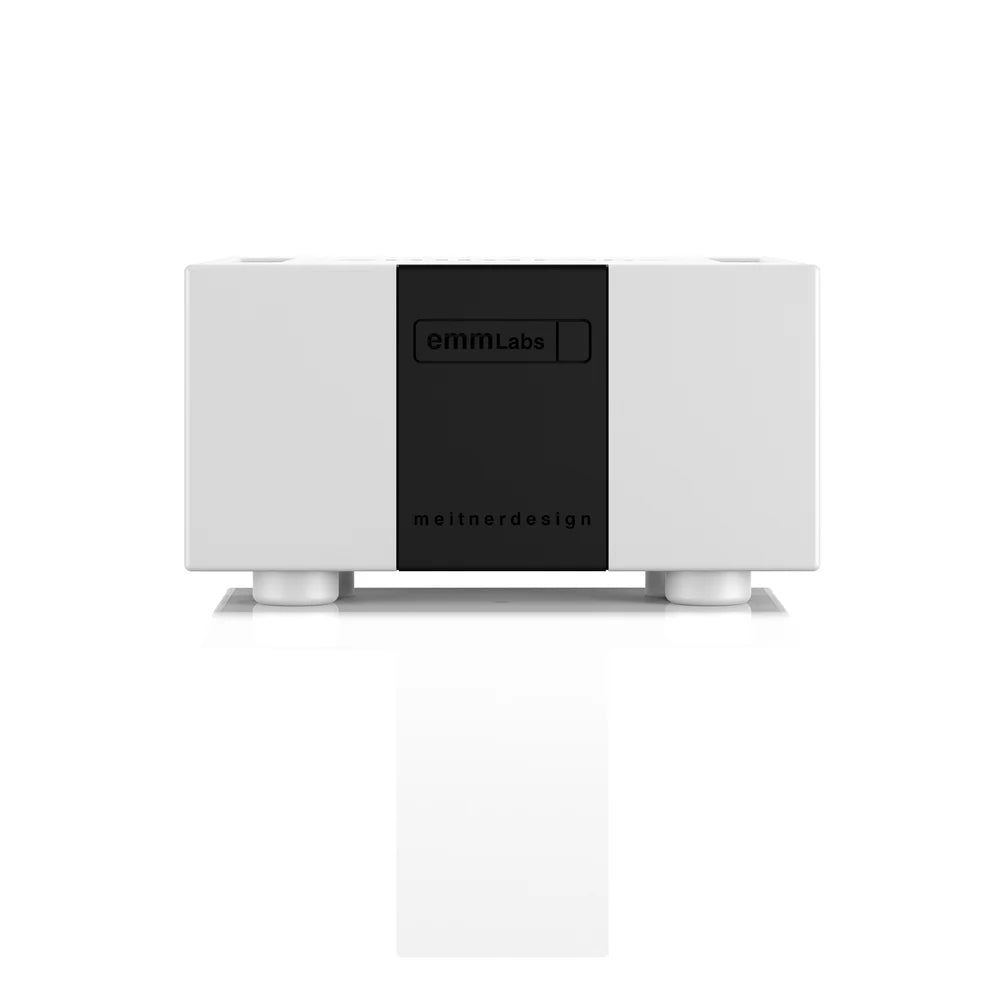

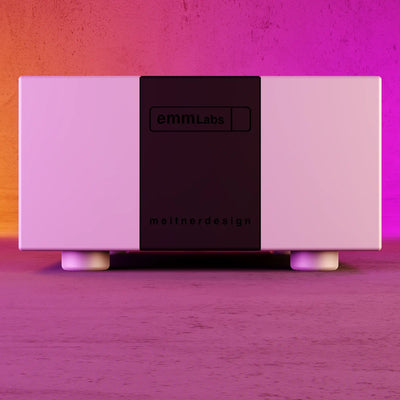

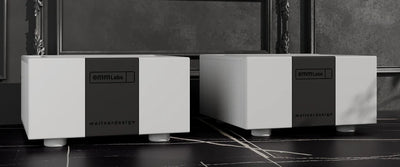

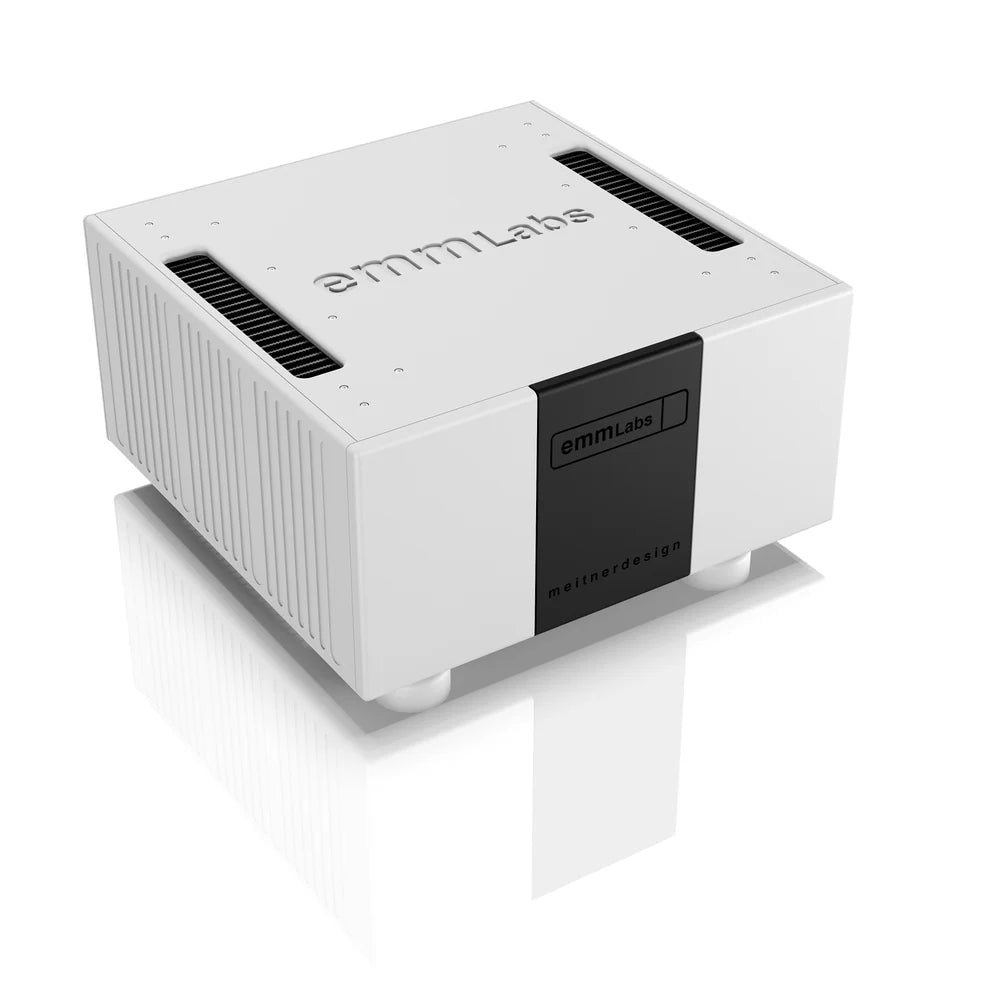

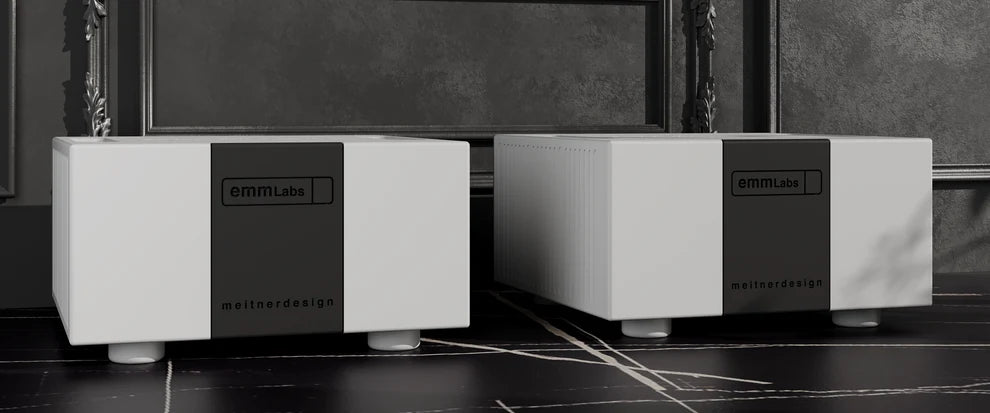

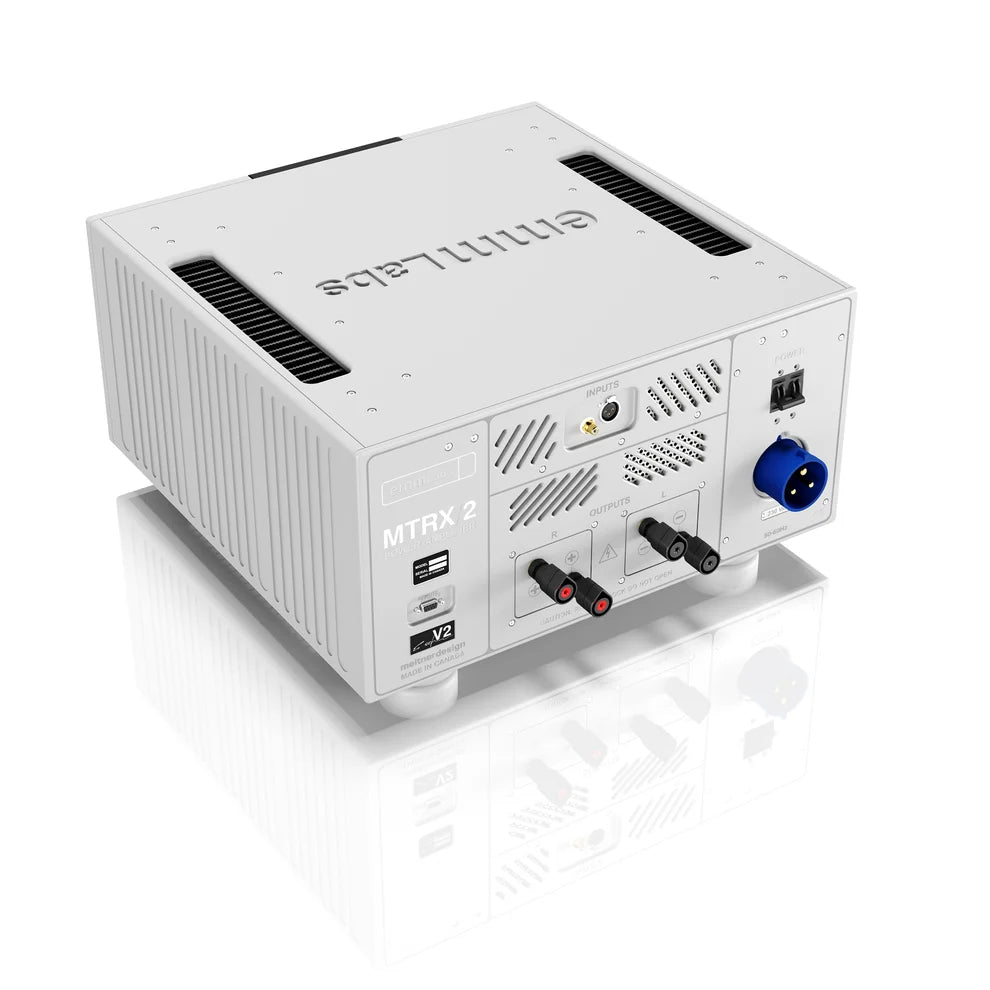

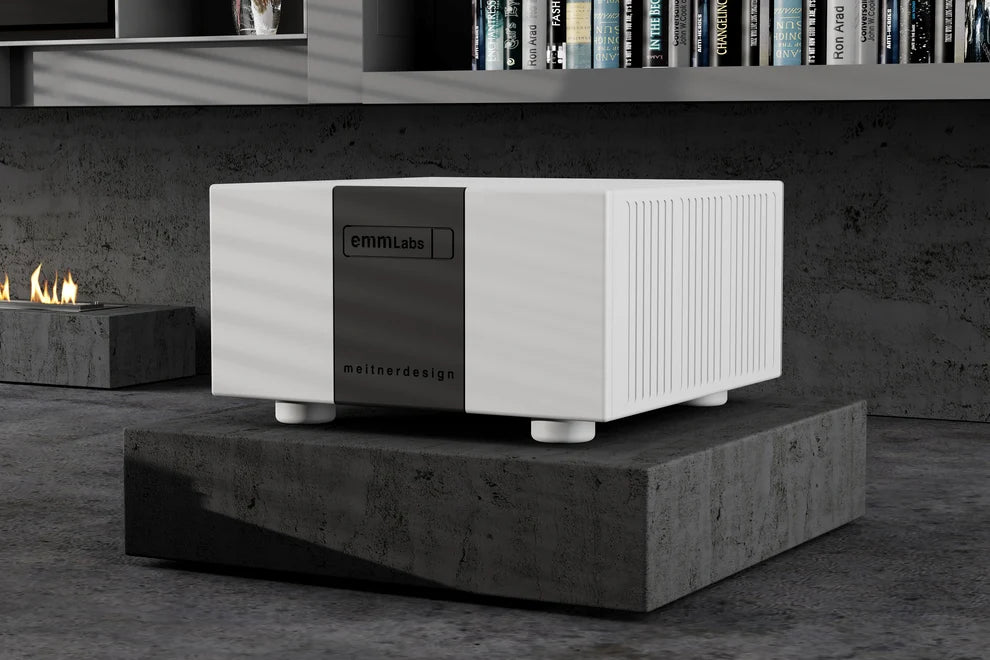

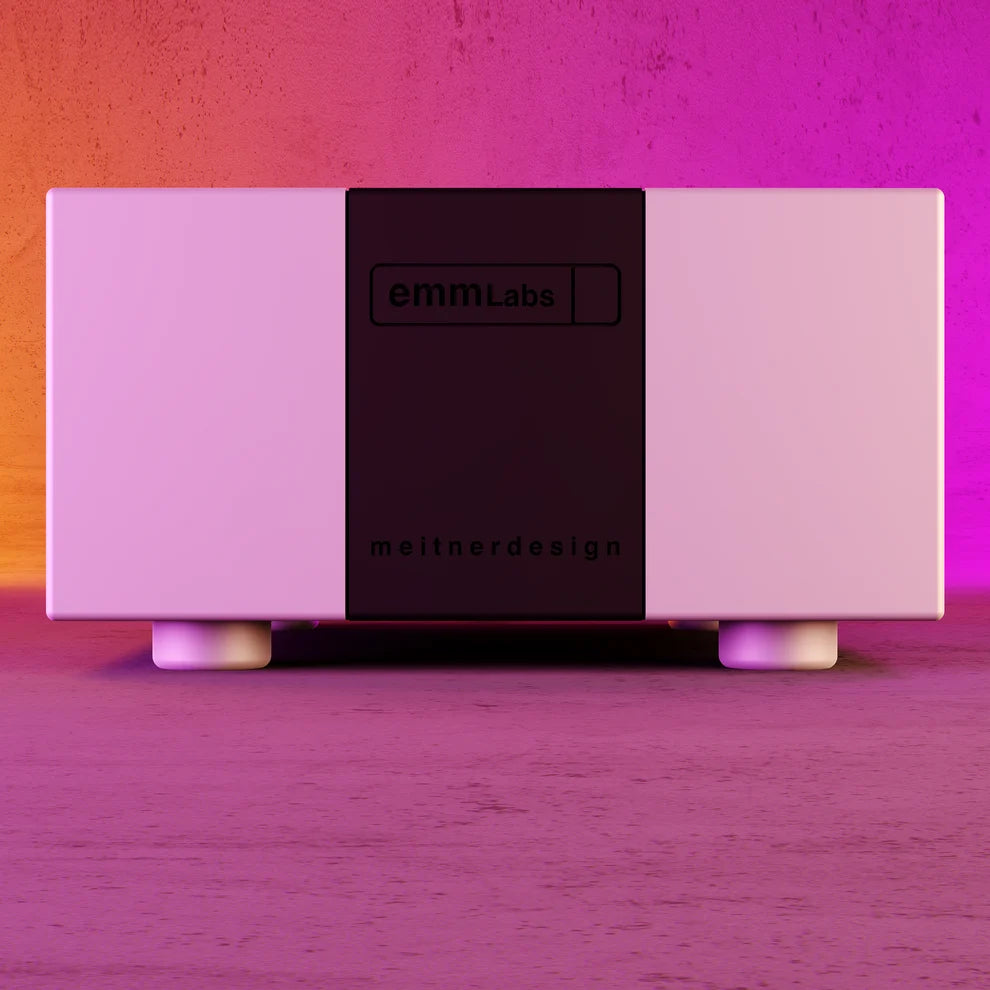

EMM Labs MTRX2 V2 Reference Mono Amplifier Pair

Complimentary White Glove Delivery • Travel Reimbursement*

The EMM Labs MTRX2 V2 is a reference Class A/B monoblock amplifier created for systems where extraordinary power, control and transparency are required. Delivering 1,000 watts RMS continuous into 4 ohms and 1.3kW of dynamic power, the MTRX2 V2 is engineered to control even exceptionally demanding reference loudspeakers.

At its core is EMM Labs' latest high-current Meitner Power Driver, capable of delivering massive transient current while maintaining extremely low distortion and wide bandwidth. The amplifier remains stable with complex loudspeaker loads down to 1 ohm, providing enormous reserves of power when the music demands it.

Uncompromising Amplifier Architecture

The MTRX2 V2 uses fully discrete circuit topologies and fully balanced audio paths, supported by aerospace-grade ceramic circuit boards and EMM Labs' latest-generation proprietary power system.

Internal wiring by Kimber Kable, Furutech binding posts and real-time protection circuitry complete an amplifier designed from the ground up for uncompromising reference systems. Each MTRX2 V2 is crafted, manufactured and built in Canada.

Key Features

• 1,000W RMS continuous power into 4Ω

• 1.3kW dynamic power into 4Ω

• Class A/B solid-state monoblock design

• High-current Meitner Power Driver

• Stable with complex loudspeaker loads down to 1Ω

• Proprietary fully discrete circuit topology

• Fully balanced audio signal path

• Aerospace-grade ceramic PCB boards

• Latest-generation proprietary power system

• Massive instantaneous transient-current capability

• Real-time amplifier and loudspeaker protection

• Internally wired with Kimber Kable

• Furutech speaker binding posts

• Balanced XLR and unbalanced RCA inputs

• RS-232 system control

• Custom 30A Kimber Kable power cable

• Custom EMM Labs flight case

• Crafted, manufactured and built in Canada

Specifications

Power into 4Ω: 1,000W RMS continuous / 1.3kW dynamic
Voltage Gain: 30dB
Frequency Response: 0.1Hz–200kHz at full rated power
Signal-to-Noise Ratio: Greater than 120dB, A-weighted
THD+N: Less than 0.015%, 20Hz–20kHz at full rated power
IMD: Less than 0.015%, 20Hz–20kHz at full rated power
Slew Rate: Greater than 100V/µs
Damping Factor: Greater than 200

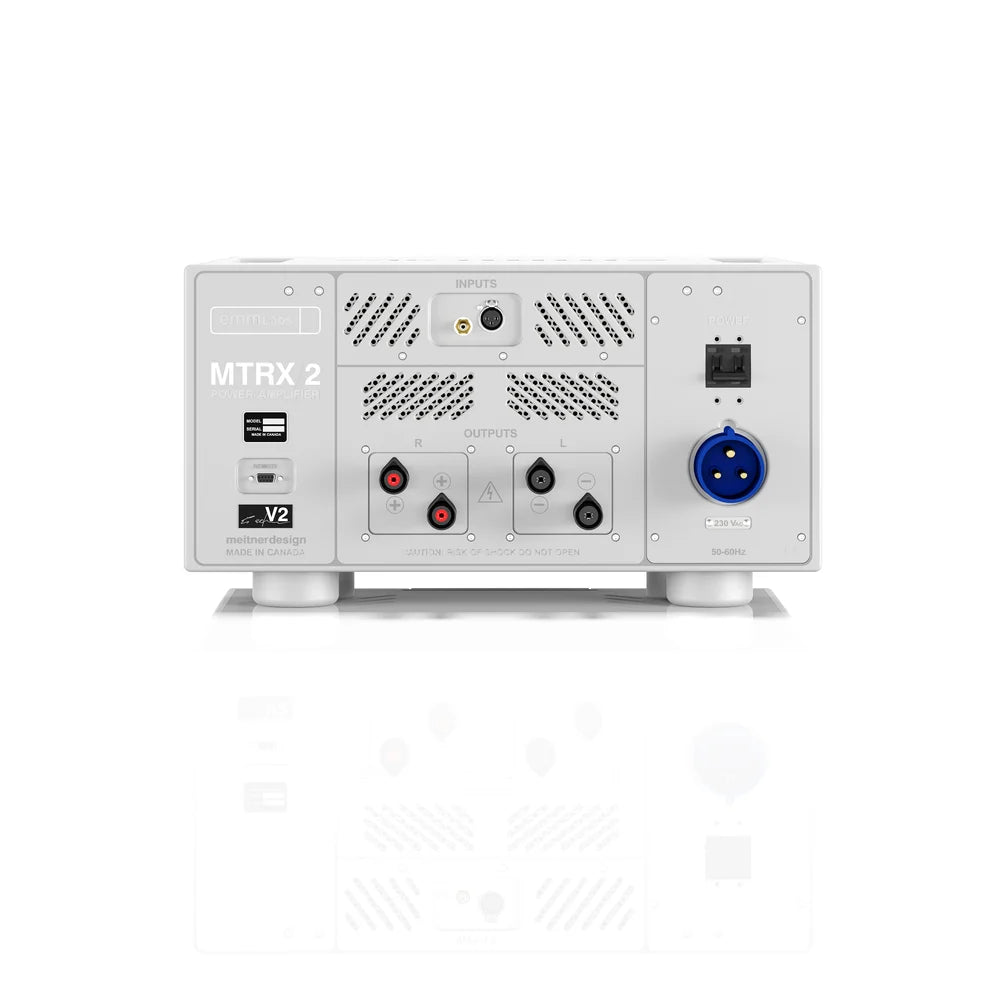

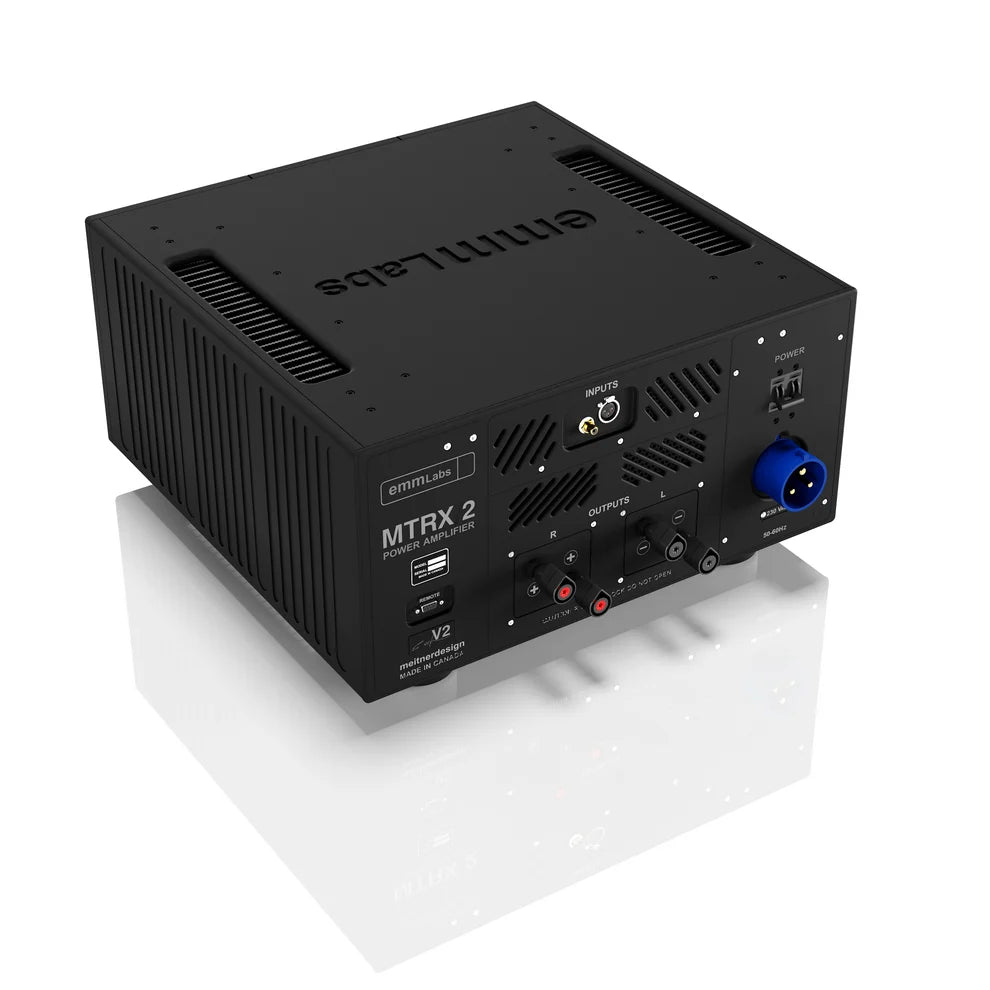

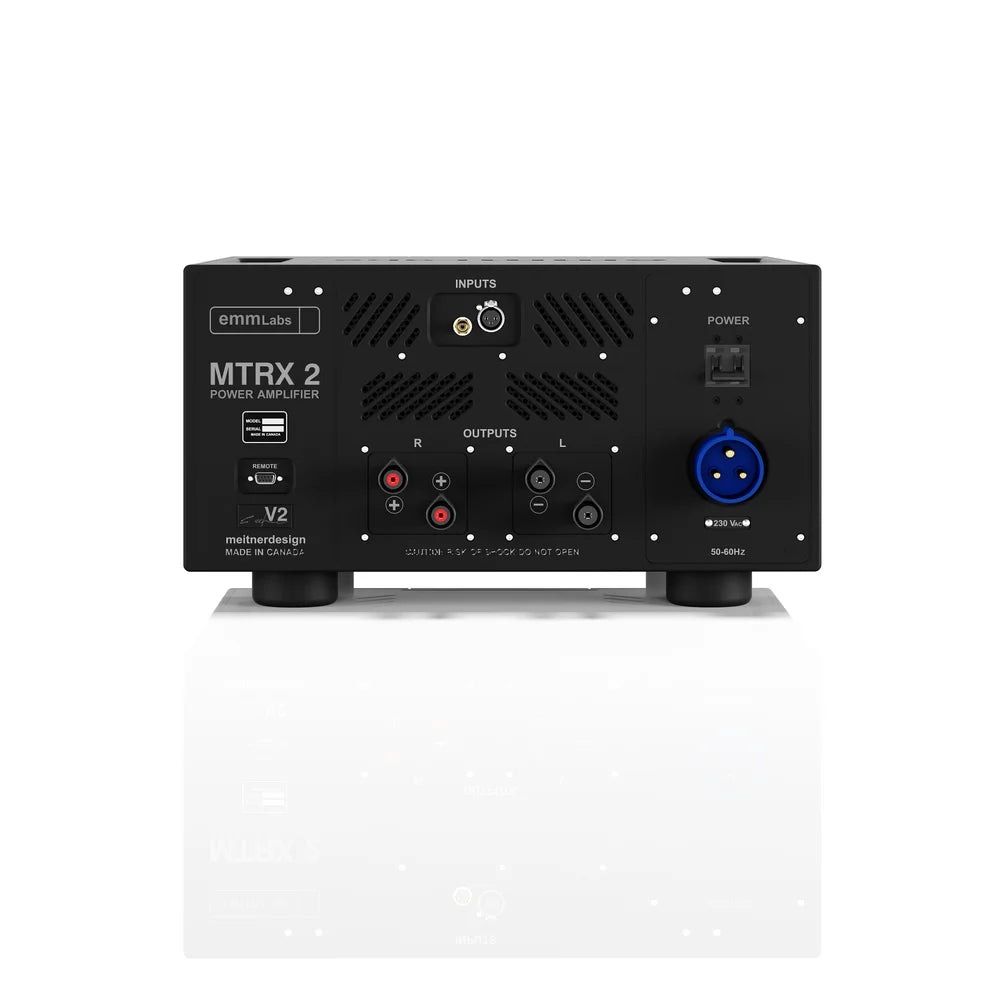

Balanced Input: 1 × XLR
Unbalanced Input: 1 × RCA
Balanced Input Impedance: 100kΩ
RCA Input Impedance: 47kΩ
Speaker Outputs: 2 sets of Furutech binding posts
Power: 100/115/240V, 50/60Hz, factory set
Power Inlet: 30A 250V IEC60309
System Control: RS-232

EMM Labs MTRX2 V2 at The Grid HiFi

At The Grid HiFi in Houston, Texas, the EMM Labs MTRX2 V2 represents amplification for the most ambitious reference systems. We can match these monoblocks with world-class loudspeakers, preamplification, digital and analog sources, cabling and power to build a system without compromise.
