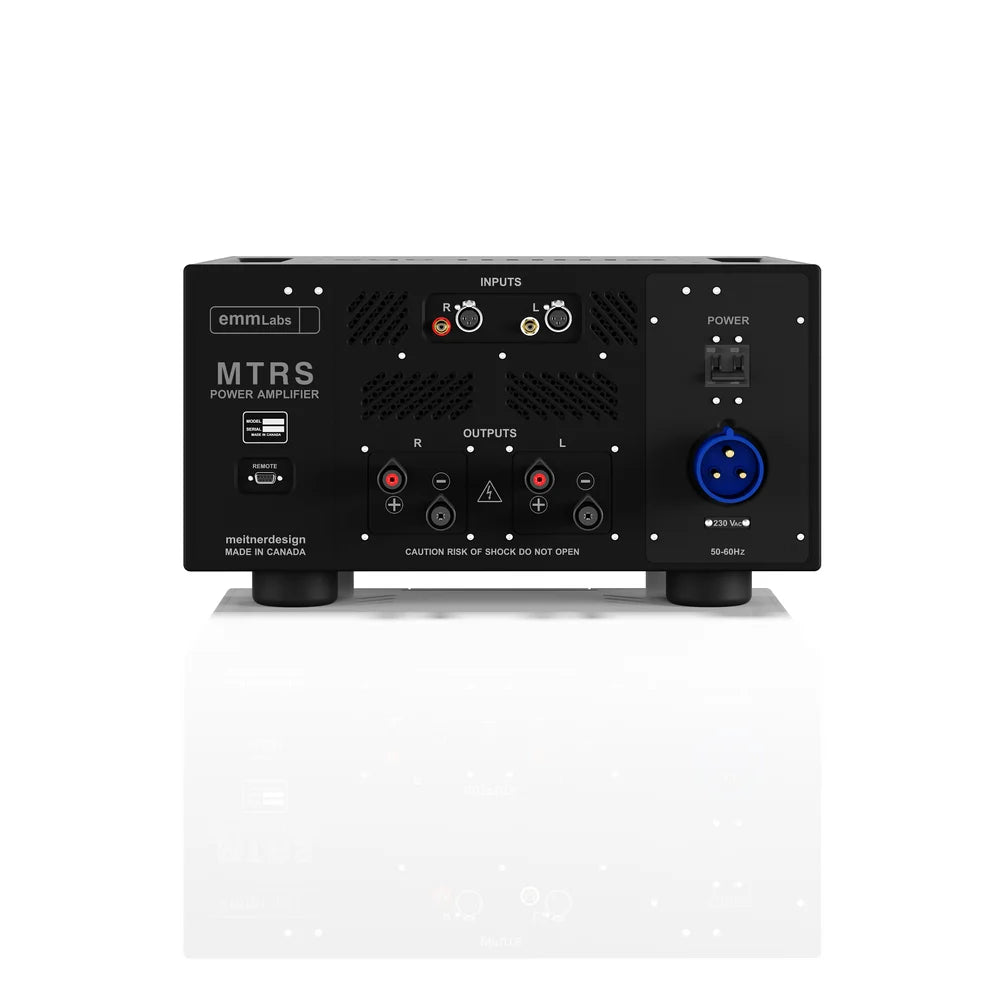

EMM Labs MTRS Stereo Power Amplifier

Complimentary White Glove Delivery • Travel Reimbursement*

The EMM Labs MTRS is a reference stereo power amplifier engineered to deliver extraordinary current, control and transparency from a single chassis. Drawing directly from the technology developed for the flagship MTRX and MTRX2 amplifiers, the MTRS delivers 330 watts RMS per channel into 4 ohms, with 400 watts of dynamic power.

At its core is Ed Meitner's redesigned high-current Meitner Power Driver, operating without overall feedback. The MTRS is engineered to remain completely stable with difficult loudspeaker loads, including impedances down to 1 ohm, making it exceptionally capable with demanding reference loudspeakers.

Reference-Level Amplification

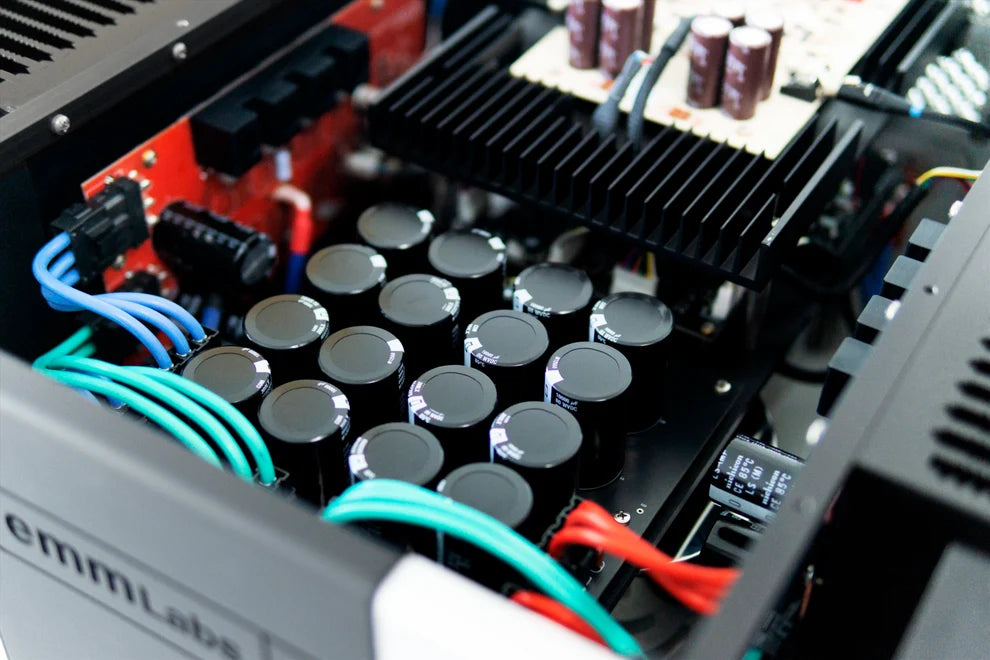

The MTRS uses fully discrete circuitry and fully balanced signal paths, custom ceramic circuit boards and a proprietary power system developed by EMM Labs. Real-time protection circuitry continuously safeguards both the amplifier and connected loudspeakers without compromising its high-performance design.

With a frequency response extending from 0.1Hz to 200kHz at full rated power, greater than 120dB signal-to-noise ratio and extremely low distortion, the MTRS is designed to combine massive power delivery with the speed and resolution expected from EMM Labs.

Key Features

• 330W RMS continuous power per channel into 4Ω

• 400W dynamic power per channel into 4Ω

• Class A/B solid-state design

• High-current Meitner Power Driver

• No overall feedback

• Stable with loudspeaker loads down to 1Ω

• Fully discrete circuitry

• Fully balanced audio paths

• Custom ceramic PCB boards

• Proprietary EMM Labs power system

• Real-time amplifier and loudspeaker protection

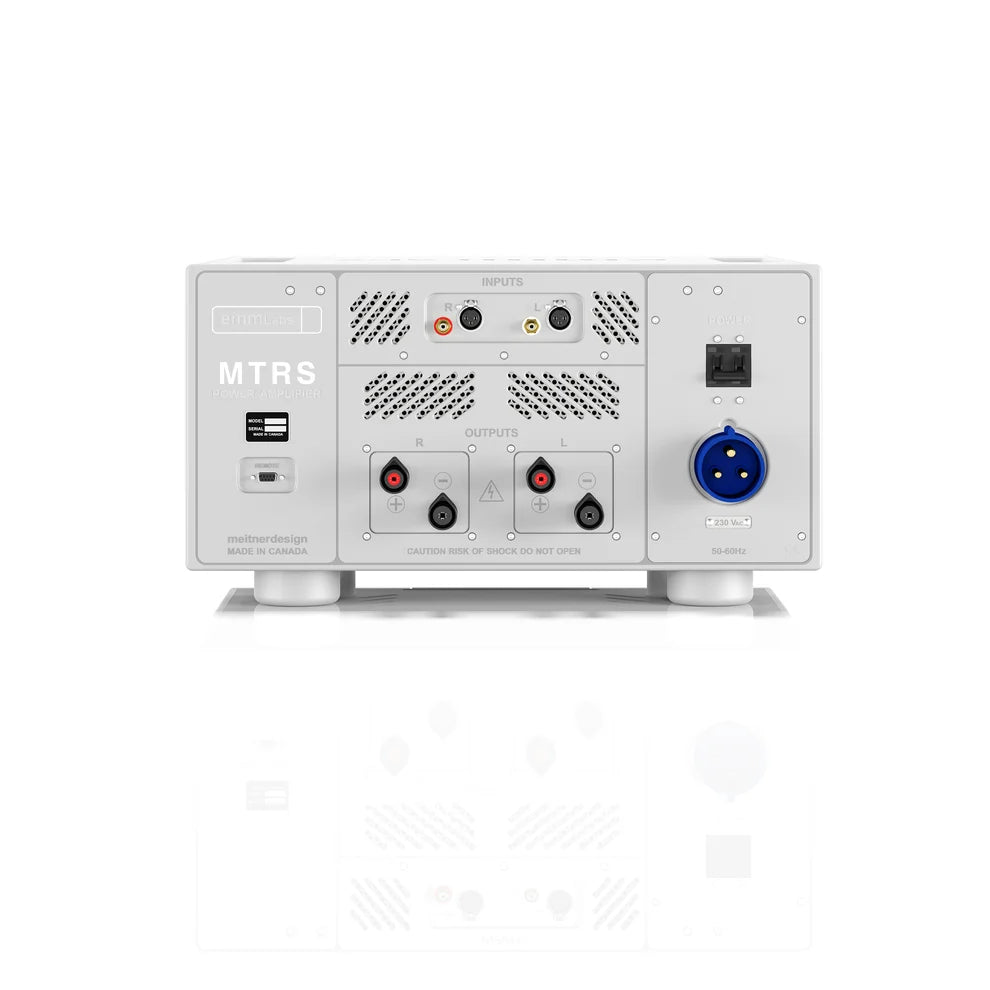

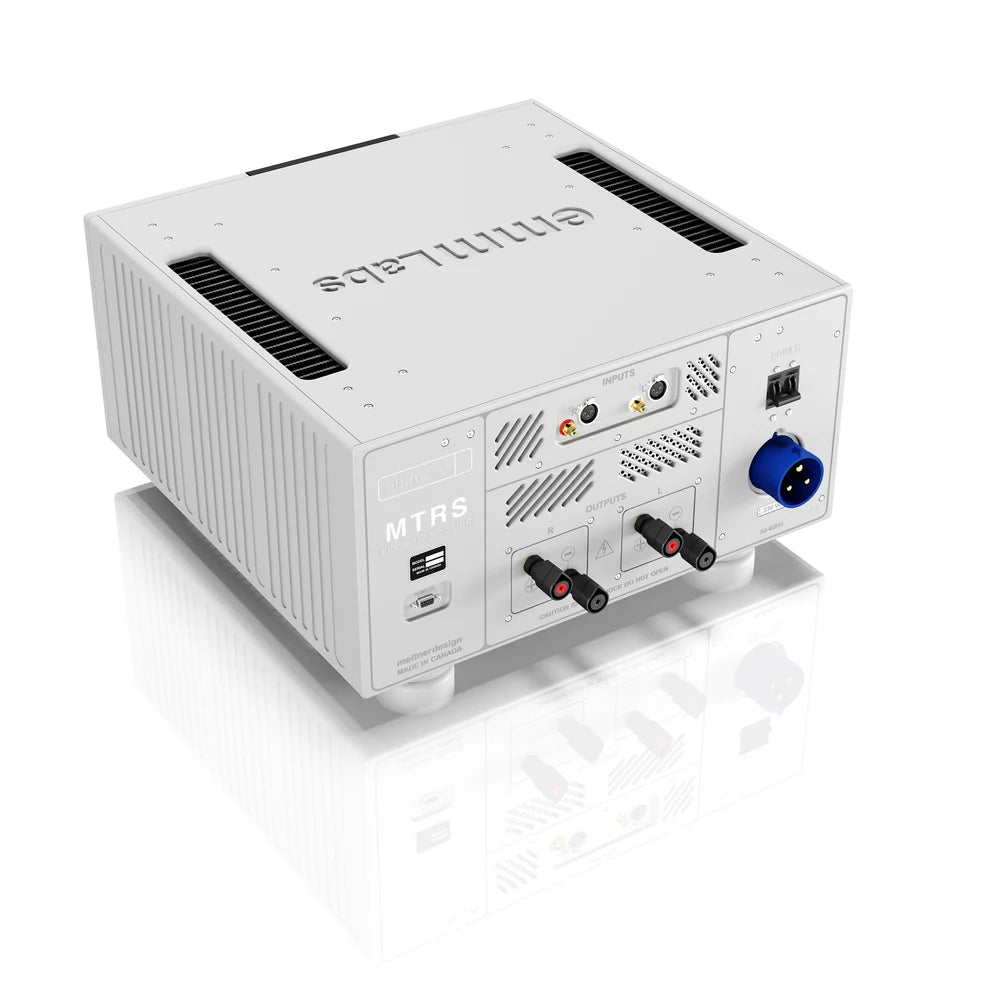

• Balanced XLR and unbalanced RCA inputs

• Furutech speaker binding posts

• RS-232 system control

• Custom 30A Kimber Kable power cable

• Custom EMM Labs flight case

• Designed, manufactured and built in Canada

Specifications

Power into 4Ω: 330W RMS continuous / 400W dynamic per channel
Voltage Gain: 30dB
Frequency Response: 0.1Hz–200kHz at full rated power
Signal-to-Noise Ratio: Greater than 120dB, A-weighted
THD+N: Less than 0.01%, 20Hz–20kHz at full rated power
IMD: Less than 0.01%
Slew Rate: Greater than 100V/µs
Damping Factor: Greater than 200
Balanced Input Impedance: 100kΩ
RCA Input Impedance: 47kΩ
Dimensions: 544 × 584 × 297 mm
Weight: 82 kg / approximately 181 lbs

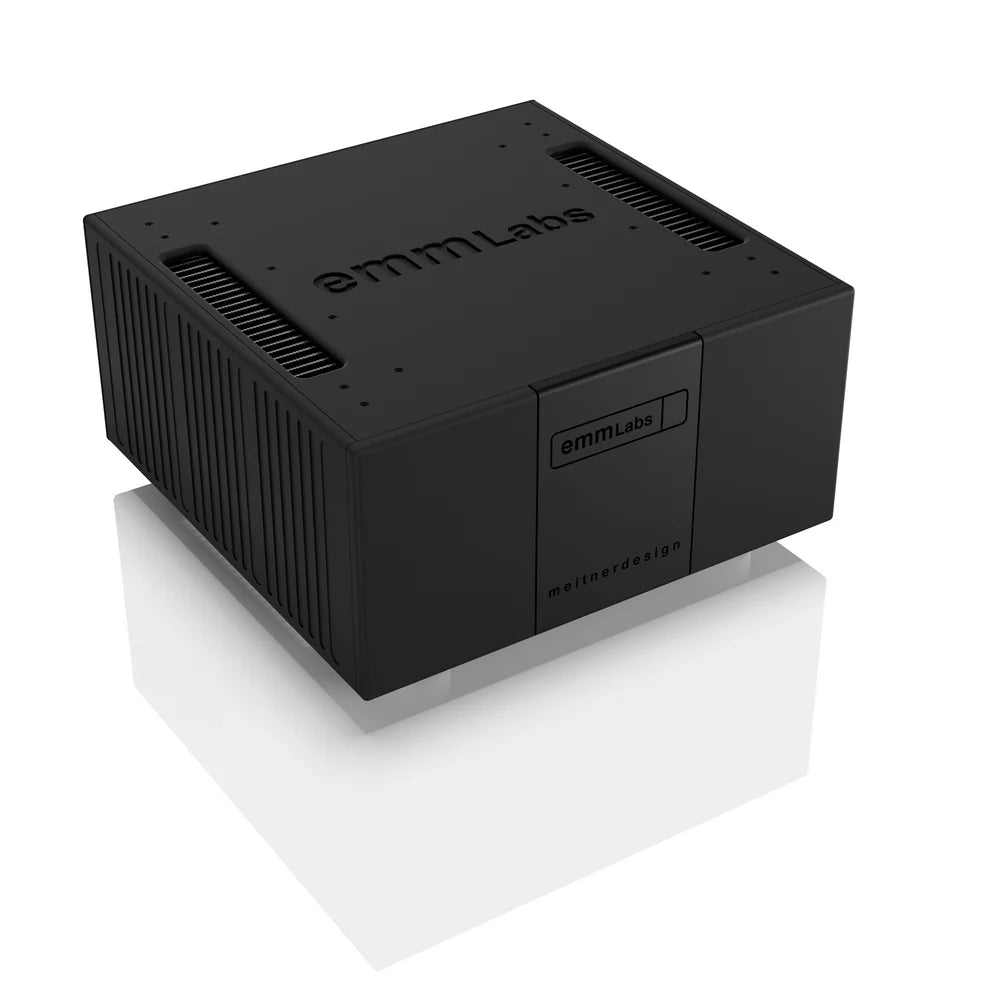

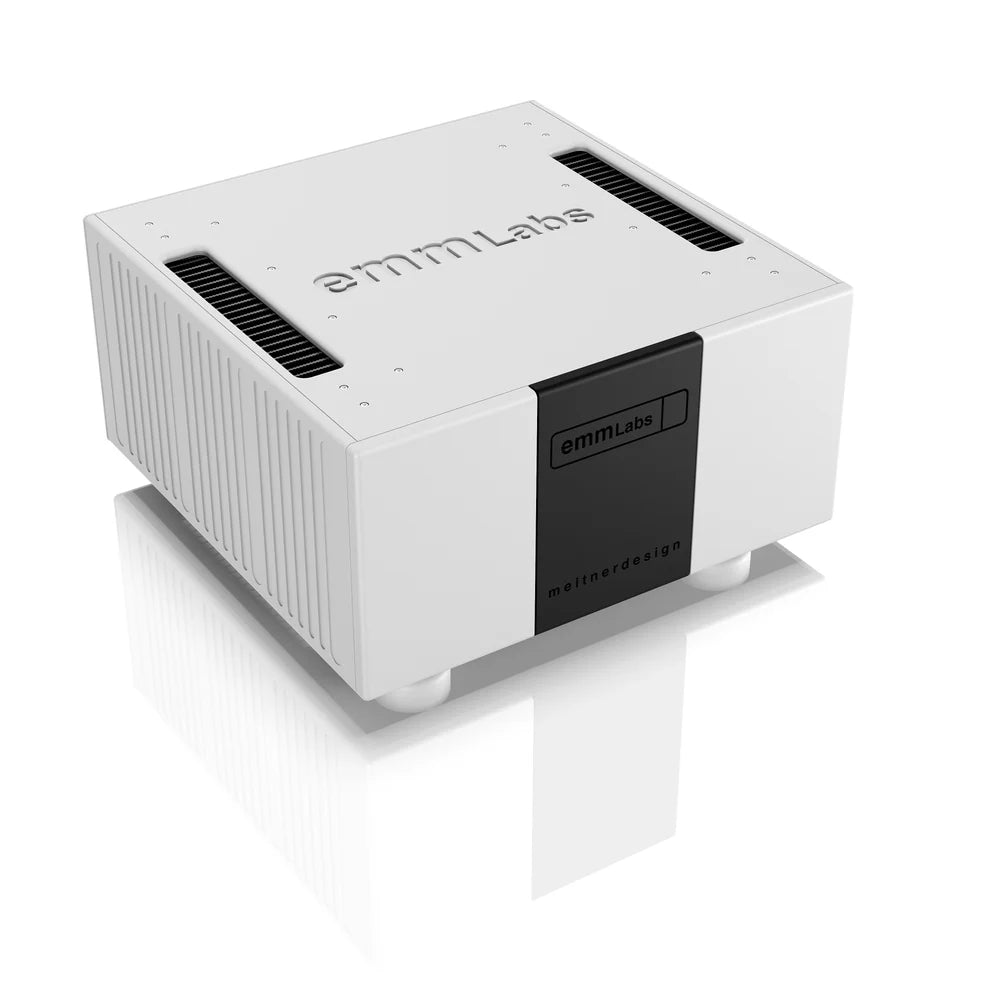

Finishes: Silver or Black

EMM Labs MTRS at The Grid HiFi

At The Grid HiFi in Houston, Texas, the EMM Labs MTRS can anchor a true reference two-channel system, providing the power and control required for some of the world's most demanding high-end loudspeakers.
