DreamWall CooLED Classic Series 1.25mm COB Indoor LED Video Wall

Product description

The DreamWall Elite Silver 1.25mm COB LED Video Wall brings the scale and impact of direct-view LED technology to luxury home theaters, media rooms and commercial environments. Available in five screen sizes from 108 to 216 inches, it combines fine-pitch COB Micro/MiniLED technology with HDR10 support, a 7,680Hz LED refresh rate and a seamless, modular display architecture.

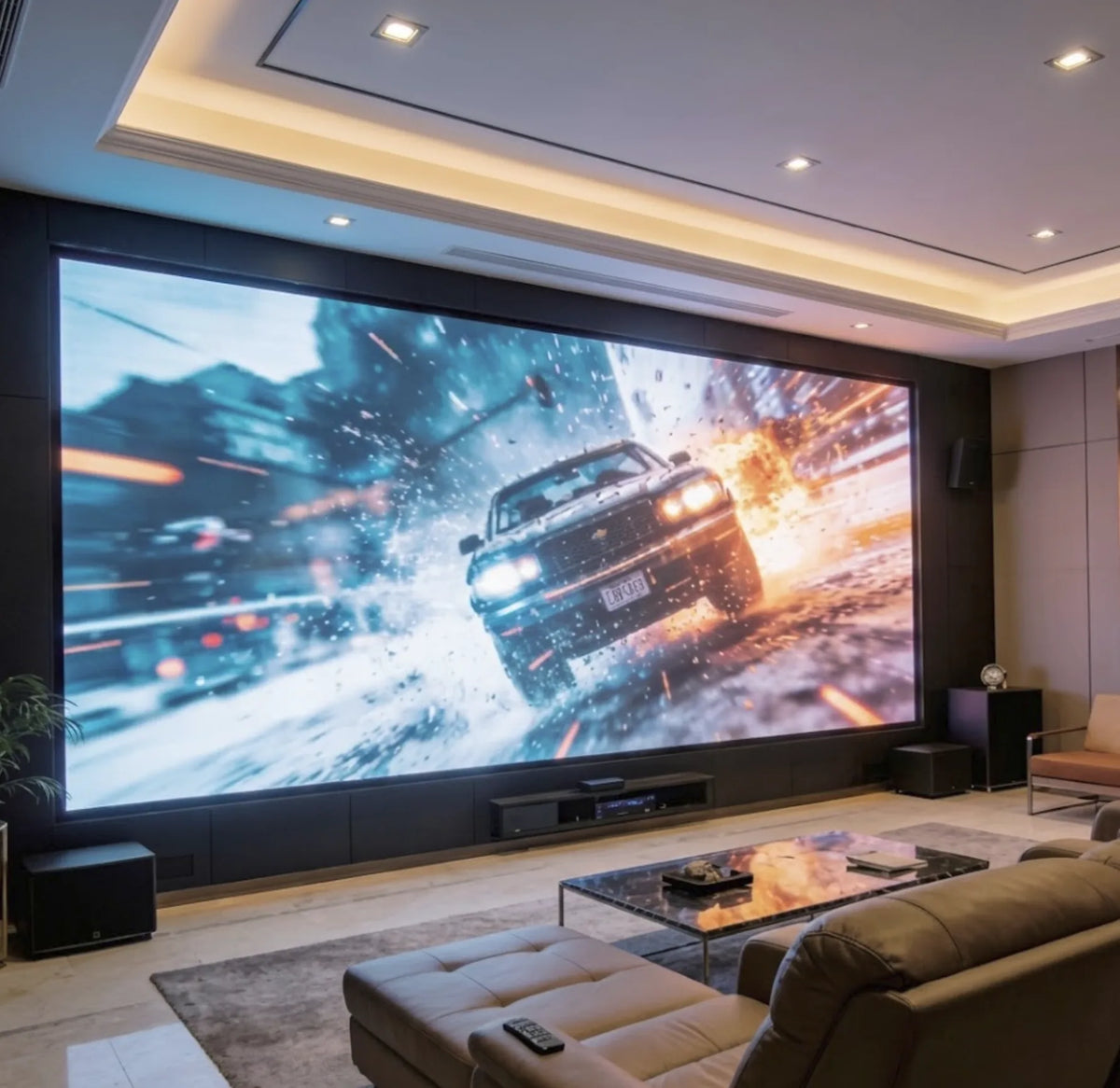

Unlike conventional televisions or projection systems, DreamWall creates its image directly at the LED surface. Its modular cabinets form an expansive, continuous display without the visible bezels of tiled LCD screens. The result is a large-format viewing experience suited to dedicated cinemas, entertainment spaces, executive environments and custom architectural installations.

COB Micro/MiniLED technology

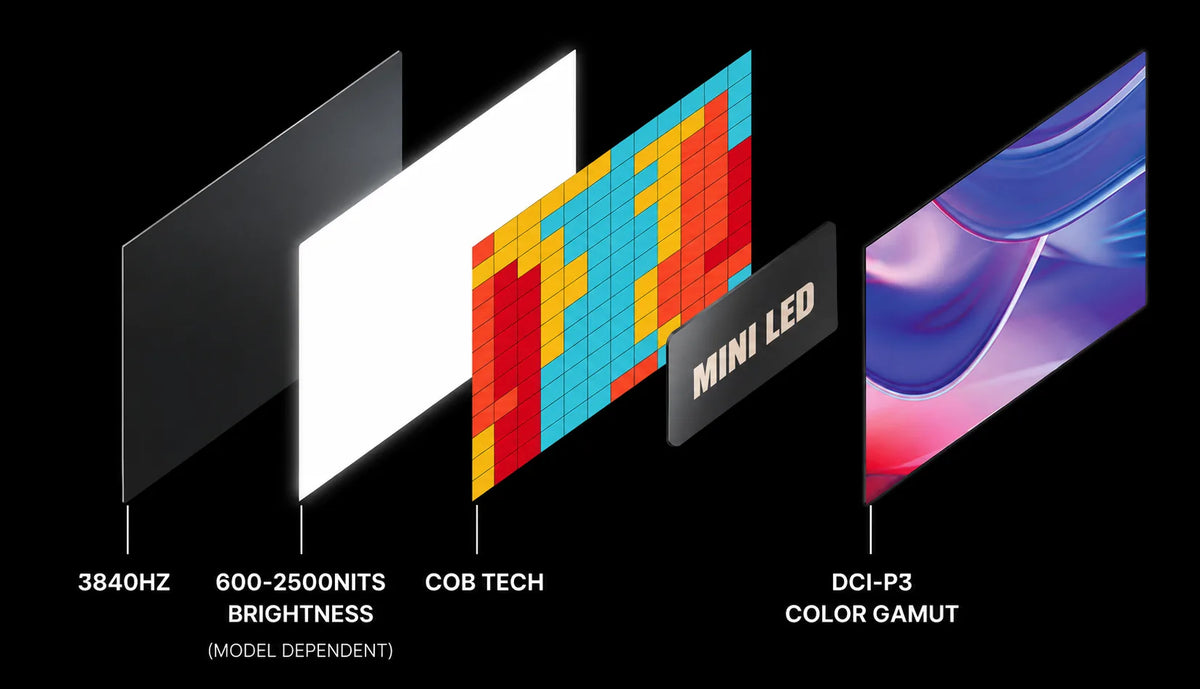

Elite Silver uses Chip-on-Board (COB) technology with a 1.25mm pixel pitch, delivering 640,000 pixels per square meter. The fine-pitch LED architecture provides detailed imagery across large screen sizes, while the direct-view design eliminates the need for a separate projection screen.

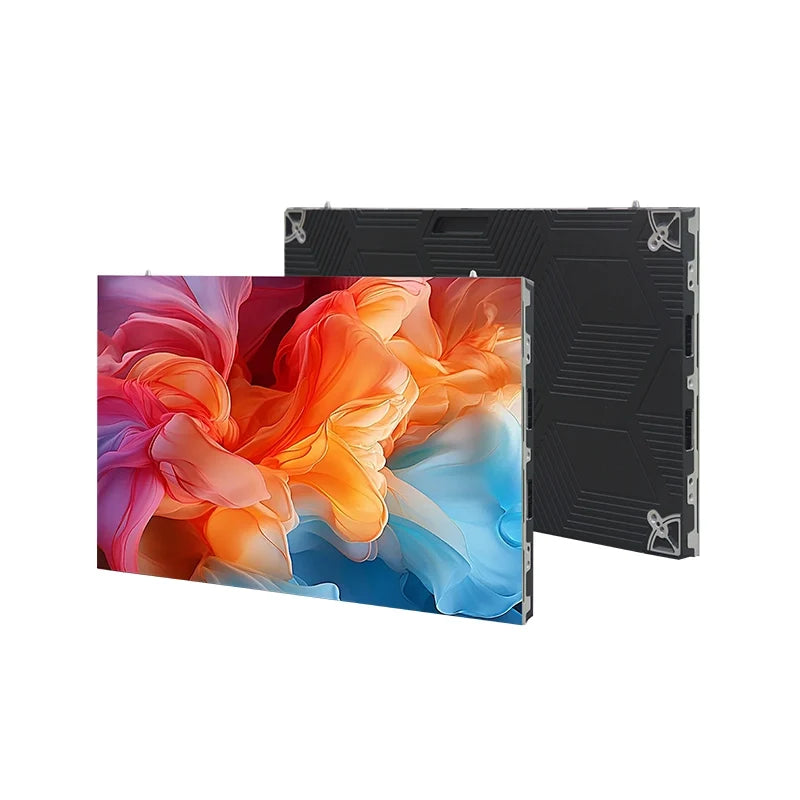

Its 600 × 337.5mm die-cast aluminum cabinets support a modular installation tailored to the available wall space and intended viewing distance.

HDR10 and 7,680Hz refresh rate

Elite Silver is DreamWall's direct-dealer equivalent of Classic Plus, featuring HDR10 compatibility, a 7,680Hz LED refresh rate and a 1/54 scan rate.

HDR10 support enables compatible content and video-processing equipment to reproduce high-dynamic-range imagery. The high LED refresh rate is particularly useful in applications where the display may be photographed or recorded on camera. It is distinct from the incoming video frame rate.

High contrast and wide color reproduction

DreamWall's COB display architecture provides a published 30,000:1 contrast ratio and DCI-P3 wide color gamut, supporting richly saturated colors and separation between bright and dark image areas.

The corresponding 1.25mm COB cabinet specification lists 600–1,000 nits of brightness, making the display suitable for a range of indoor lighting environments. Final image performance depends on the selected processing equipment, calibration and installation conditions.

Five screen sizes for custom installations

The Elite Silver 1.25mm series is available in 108-, 136-, 162-, 189- and 216-inch configurations. All five use a nominal 16:9 format, accommodating movies, television, sports and other widescreen content.

The modular cabinet system allows the display to be incorporated into a dedicated home theater, a multipurpose media room or a larger commercial environment. DreamWall's front-serviceable COB architecture also allows maintenance access from the display side, an important consideration for installations with limited space behind the screen.

DreamWall at The Grid HiFi

The Grid HiFi in Houston, Texas, designs and installs premium DreamWall LED video walls for luxury residences and commercial projects. Our team can integrate Elite Silver with high-performance surround sound, premium video sources, architectural lighting and Control4 automation. From screen-size selection and structural planning to system control and final calibration, we develop complete entertainment systems around the room and the way it will be used.

Technical specifications

DreamWall Video Wall Installation at The Grid HiFi

The Grid HiFi in Houston, Texas, designs and installs premium video wall systems for luxury residences, dedicated home theaters and commercial spaces. Our team can integrate the DreamWall CooLED Classic Series with high-performance surround sound, video distribution, architectural lighting and Control4 automation. From selecting the appropriate screen size to planning structural support, electrical requirements and system control, we design the installation around your space.
