Overview
Deus Audio Invicta 60 MK2 – 60" 20,000W Infrasonic Powered Subwoofer System
60-inch driver. 20,000 watts peak power handling. 12 Hz at -3 dB. 146 dB peak output.
https://www.instagram.com/reels/DXHxIHxgEVS/ Take a look here at a video!
The Deus Audio Invicta 60 MK2 is a flagship infrasonic subwoofer system built for the most demanding private cinemas, screening rooms, studios, and statement two-channel systems. Its enormous 60-inch carbon-fiber driver handles 20,000 watts peak / 10,000 watts continuous, reaches 12 Hz at -3 dB with DSP, and produces up to 146 dB peak SPL at 1 meter. Deus Audio Machines
Engineered as a complete system, the Invicta 60 MK2 pairs with the dedicated Deus AMP2.6000 DSP amplifier, using one amplifier channel for each voice coil with real-time TrueTemp™ thermal monitoring and Invicta-specific DSP and protection. Deus Audio Machines
Complimentary White Glove Delivery
Complimentary White Glove Delivery is included through The Grid HiFi.
At 924 pounds assembled and more than 70 inches wide and tall, the Invicta requires specialized planning, delivery, placement, and integration. The Grid HiFi can coordinate the Invicta as part of a complete reference cinema or high-performance audio system.
Call The Grid HiFi at (713) 218-8120 to discuss your room, system, and installation.
60-Inch Carbon-Fiber Driver
The Invicta 60 MK2 uses a hand-laid, one-piece carbon-fiber cone over a Nomex honeycomb core. Deus eliminates the conventional driver basket with an ultra-rigid architecture that mechanically couples the motor to the rear structure and the cone assembly to the front through a CNC-machined coupler. Deus Audio Machines
20,000 Watts Peak Power Handling
The dual-voice-coil driver is rated for 20,000W peak / 10,000W continuous power handling, with each coil measuring 1.80Ω DCR. Deus Audio Machines
The companion AMP2.6000 is a two-channel DSP amplifier rated at 6,000W peak per channel into 2 ohms, with one channel dedicated to each voice coil. The 20,000W specification refers to the Invicta driver's peak power handling, not amplifier output. Deus Audio Machines
Infrasonic Extension Below 10 Hz
With its Linkwitz Transform applied, the Invicta reaches 12 Hz–230 Hz at -3 dB, extending to 9.26 Hz at -6 dB and 7.95 Hz at -10 dB. Native response without DSP is 20 Hz–230 Hz at -3 dB. Its sealed alignment provides a 12 dB/octave acoustic rolloff designed to work naturally with room gain. Deus Audio Machines
Up to 146 dB Peak SPL
Maximum output is specified at 146 dB peak / 143 dB continuous at 1 meter under Deus's stated 2π anechoic CTA-2010-B conditions.
Published 1-meter peak output includes 129.5 dB at 12.5 Hz, 135.5 dB at 16 Hz, 141.8 dB at 20 Hz, and 146 dB at 80 Hz. Deus Audio Machines
MASS Drive™ + 66mm Stroke
Deus's MASS Drive™ ultra-linear motor is engineered to maintain controlled BL, KMS, and inductance through the driver's full 66mm stroke. One-way Xmax is 33mm / 1.30 inches at 82% BL, providing the displacement required for extreme infrasonic output while controlling distortion. Deus Audio Machines
TrueTemp™ Thermal Monitoring
TrueTemp™ directly measures voice-coil temperature rather than estimating it. The data feeds the amplifier's protection system, which monitors excursion, voltage, coil temperature, and thermal rate of change in real time. Deus Audio Machines
AMP2.6000 DSP Amplifier
The Invicta system is engineered around the AMP2.6000, featuring:
- 6,000W peak per channel into 2Ω
- Two channels — one per Invicta voice coil
- Analog Devices DSP
- Invicta-specific correction filters and limiters
- Wi-Fi DSP tuning
- Balanced XLR inputs and XLR passthrough
- Neutrik SpeakOn NL4 and high-current Phoenix outputs
- 12V trigger input/output
- Front touchscreen with real-time TrueTemp monitoring
- 100–240V operation, with 220V recommended for best performance
- 2U rack-mount chassis with crossflow cooling Deus Audio Machines
Technical Specifications
| Specification | Deus Audio Invicta 60 MK2 |
|---|---|
| System Type | Powered Infrasonic Subwoofer System |
| Driver Size | 60 inches |
| Peak Power Handling | 20,000 W |
| Continuous Power Handling | 10,000 W |
| Voice Coils | Dual |
| Impedance | 1.80Ω DCR per coil |
| Sensitivity | 105.0 dB, 2.83V/1m, 2π anechoic |
| Maximum Peak SPL | 146.0 dB @ 1m |
| Maximum Continuous SPL | 143.0 dB @ 1m |
| Native Frequency Response | 20–230 Hz (-3 dB) |
| DSP Frequency Response | 12–230 Hz (-3 dB) |
| Low-Frequency Extension | 12.00 Hz (-3 dB) |
| Low-Frequency Extension | 9.26 Hz (-6 dB) |
| Low-Frequency Extension | 7.95 Hz (-10 dB) |
| Cone Breakup Frequency | 265 Hz |
| Xmax | 33 mm / 1.30 in one-way @ 82% BL |
| Full Stroke | 66 mm |
| Group Delay at F3 | 19.2 ms |
| System Qtc | 0.55 |
| Enclosure | Sealed |
| Acoustic Rolloff | 12 dB/octave |
| Cone | Hand-laid carbon fiber / Nomex honeycomb core |
| Motor | MASS Drive™ ultra-linear motor |
| Thermal Monitoring | TrueTemp™ direct voice-coil measurement |
| Architecture | Ultra-rigid no-basket driver/enclosure system |
| Audio Connections | Dual Neutrik SpeakOn NL4 |
| Thermal Connection | XLR |
| Included Cables | Dual 50' 4-conductor 12ga Neutrik SpeakOn NL4 cables |
| Mounting | Floor standing |

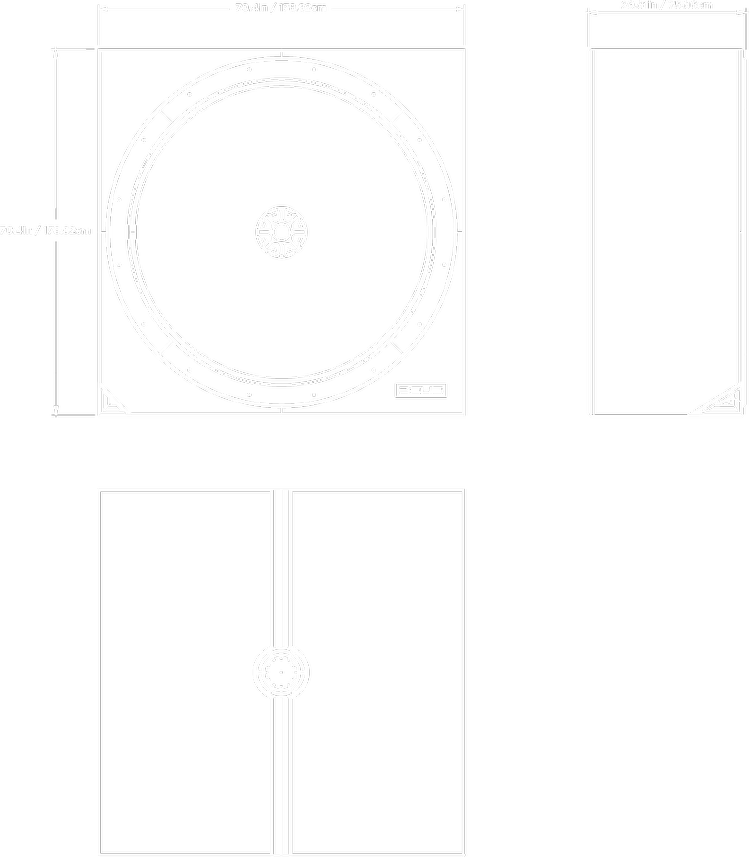

| Dimensions (D × W × H) | 29.49 × 70.39 × 70.39 in |
| Metric Dimensions | 749 × 1,788 × 1,788 mm |
| Assembled Weight | 924 lb / 420 kg |
| Crated Dimensions | 35.43 × 74.80 × 74.80 in |
| Crated Weight | 1,056 lb / 480 kg |
| Warranty | 3 years / 5 years with registration |
CTA-2010-B Output
| Frequency | 1m Peak SPL |
|---|---|
| 12.5 Hz | 129.5 dB |
| 16 Hz | 135.5 dB |
| 20 Hz | 141.8 dB |
| 25 Hz | 144.5 dB |
| 31.5 Hz | 144.1 dB |
| 40 Hz | 143.1 dB |
| 50 Hz | 143.1 dB |
| 63 Hz | 144.4 dB |
| 80 Hz | 146.0 dB |
Deus measured at 4 meters and calculated the other distances, with the voice coils wired in parallel as a 0.9Ω load, driven by a 20kW test amplifier at up to 140V RMS with a 10 Hz high-pass filter. Deus Audio Machines
What's Included
The powered package combines the Invicta 60 MK2 with the Deus AMP2.6000 DSP amplifier, using both amplifier channels—one per voice coil. The Invicta also includes dual 50-foot, 4-conductor 12-gauge Neutrik SpeakOn NL4 cables. Deus Audio Machines
Invicta 60 MK2 at The Grid HiFi
A 60-inch, 924-pound infrasonic system isn't simply added to a room—it should be engineered into it.
The Grid HiFi can integrate the Invicta 60 MK2 into a complete reference private cinema or statement audio system, including placement, electrical requirements, structural considerations, DSP, bass management, acoustics, isolation, amplification, projection, and calibration.
Complimentary White Glove Delivery is included.
Ready to build something extraordinary? Call The Grid HiFi at (713) 218-8120 to design your Invicta 60 MK2 system.
