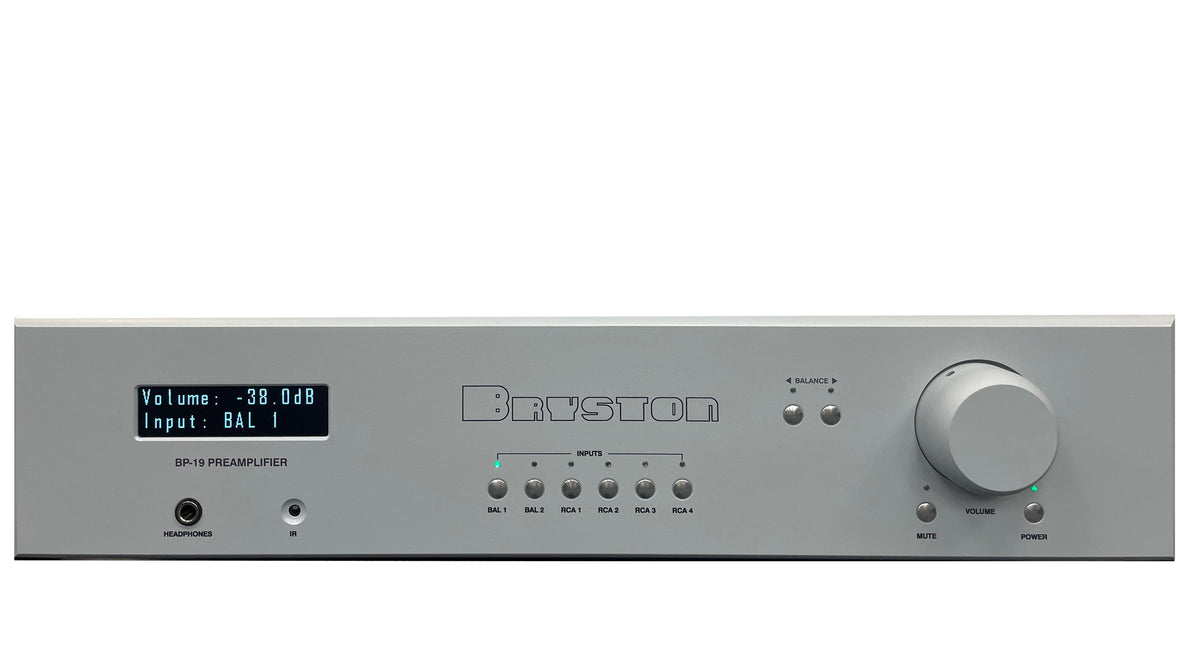

Bryston BP-19 Reference Analog Preamplifier

The Bryston BP-19 is for the listener who wants a serious analog preamplifier without paying for digital features they don't need.

Developed using many of the circuit innovations created for Bryston's award-winning BR-20, the BP-19 strips the concept back to its analog core: a fully balanced signal path, discrete Class A circuitry, oversized toroidal power supply and exceptionally low noise and distortion.

The result is a preamplifier designed to disappear from the signal path and let the source, amplifier and loudspeakers do their jobs.

For vinyl systems, the BP-19 can also be configured with Bryston's acclaimed BP-2 Moving Magnet phono stage, with a Moving Coil transformer option available for low-output MC cartridges.

Fully Balanced Analog Design

The BP-19 uses a fully balanced signal path from input to output.

Bryston uses tightly matched components and a compact circuit architecture to reduce noise while improving common-mode rejection and channel performance.

At the heart of the design is Bryston's optimized discrete operational amplifier, developed during the BR-20 program.

Measured THD+N is less than 0.0006% from 20Hz to 20kHz, while intermodulation distortion is rated at no more than 0.0003%.

Those are exceptionally low figures for an analog preamplifier.

Six Analog Inputs

The BP-19 provides plenty of connectivity for a serious analog system:

• 2 pairs balanced XLR inputs
• 4 pairs RCA inputs

That gives you six analog source inputs for components such as a DAC, streamer, CD player, tuner, tape source or turntable when equipped with the optional phono stage.

Optional BP-2 Moving Magnet Phono Stage

For the first time, Bryston offers its BP-2 Moving Magnet phono circuit as an internal option in the BP-19.

The phono module converts RCA Input 1 into a dedicated MM phono input, allowing a compatible turntable and cartridge to connect directly to the BP-19.

The BP-2 circuit is designed around extremely low noise, low distortion and substantial overload headroom—exactly what you want from a phono stage handling the very small signal coming from a cartridge.

Moving Coil Option

Low-output Moving Coil cartridges can also be accommodated.

Bryston offers a specially designed Moving Coil transformer module with selectable 20dB or 30dB gain.

This gives serious vinyl listeners another path for building the BP-19 around their preferred cartridge rather than automatically requiring an entirely separate phono preamplifier.

The Grid can help determine the correct phono configuration based on your turntable and cartridge.

Variable & Fixed Outputs

The BP-19 provides both balanced and single-ended outputs:

• 1 pair variable balanced XLR outputs
• 1 pair fixed balanced XLR outputs
• 1 pair variable RCA outputs
• 1 pair fixed RCA outputs

The variable outputs feed your power amplifier in a conventional two-channel system, while the fixed outputs provide additional flexibility for recording or other system configurations.

Remote & System Control

The BP-19 includes an infrared remote, with direct access to all six analog inputs.

For professionally integrated systems, Bryston also provides:

• RS232 control
• IP control via Ethernet
• 12V trigger control
• Remote standby operation
• Available HEX codes for universal remote systems

That makes the BP-19 equally comfortable in a traditional two-channel listening room or a professionally integrated high-end audio system.

Key Specifications

• Type: Fully Balanced Analog Preamplifier
• Analog Inputs: 2 pairs XLR + 4 pairs RCA
• Balanced Outputs: 1 variable + 1 fixed
• RCA Outputs: 1 variable + 1 fixed
• Frequency Response: 20Hz–20kHz ±0.05dB
• THD+N: <0.0006%, 20Hz–20kHz
• IMD: ≤0.0003%
• Signal-to-Noise Ratio: -110dBr balanced
• Signal-to-Noise Ratio: -110dBr single-ended
• Optional MM Phono: Bryston BP-2
• Optional MC Transformer: 20dB / 30dB
• RS232 Control: Yes
• Ethernet/IP Control: Yes
• Remote Control: Included
• Standby Consumption: 0.5W
• Idle Consumption: 12W
• Operating Consumption: 12W
• Width: 17" or 19"
• Height: 4.6"
• Depth: 13"
• Weight: 12 lbs.
• Warranty: 10 years
• Handcrafted in Canada

Faceplate Options

The BP-19 is available in 17-inch or 19-inch widths, with standard silver or black faceplates.

A 19-inch professional rackmount version is also available.

Bryston goes a step further by offering custom faceplate colors, allowing the BP-19 to be matched to the rest of a Bryston system or customized for a particular listening room or installation.

BP-19 or BR-20?

The choice between these two Bryston preamplifiers is actually pretty straightforward.

The BR-20 is the system hub. It combines an analog preamplifier with a DAC, network streamer, headphone amplifier and extensive digital connectivity.

The BP-19 is the purist analog option.

If you already have the DAC or streamer you want—or you're building a system primarily around analog sources—the BP-19 lets you concentrate on the preamplifier itself without adding digital circuitry you may never use.

Pair it with a Bryston 3B³, 4B³, 14B³ or Bryston monoblocks, and you have the foundation for an exceptionally clean Bryston two-channel system.

Experience Bryston at The Grid HiFi

The Grid HiFi is your Bryston and high-end audio expert in Houston, Texas.

The BP-19 is especially interesting because it gives us several ways to build the analog front end around your actual system.

The Grid can help determine whether you need the standard BP-19, internal BP-2 MM phono stage, or Moving Coil capability, and properly match the preamplifier with your Bryston power amplifier, turntable and cartridge, DAC, streamer, loudspeakers, subwoofers and cabling.

If you want the flexibility of the BR-20, we'll build around that. If you already have your digital front end handled and want a dedicated analog preamplifier, the BP-19 may be the better choice.

Contact The Grid HiFi for Bryston BP-19 availability, phono configuration recommendations, demonstrations, system matching and professional setup.
