Bryston Bi-200 Integrated Amplifier

The Bryston Bi-200 takes two of Bryston's most important components—the BP-19 analog preamplifier and 3B power amplifier—and combines them into one integrated amplifier.

That gives you a fully balanced discrete preamplifier, dual-mono power amplification, headphone output, six analog source inputs and 200 watts per channel into 8 ohms without requiring separate components or another pair of interconnects.

For someone who wants the performance and build quality of Bryston separates in a simpler system, the Bi-200 makes a lot of sense.

Three Versions Available

The Bryston Bi-200 is available from The Grid in three configurations:

• Bi-200 Standard
• Bi-200 with MM Phono
• Bi-200 with MM/MC Phono

The standard version is ideal for systems using digital sources or an external phono preamplifier.

Choose the MM Phono version if you're using a Moving Magnet or compatible high-output Moving Coil cartridge.

Choose the MM/MC Phono version when you want the Bi-200 to accommodate both Moving Magnet and Moving Coil cartridges.

This lets us configure the amplifier around the system you're actually building rather than making you pay for phono capability you don't need.

BP-19 + 3B in One Chassis

This is the easiest way to understand the Bi-200.

Bryston essentially combines the architecture of its BP-19 preamplifier with its 3B power amplifier.

The result is a true high-performance integrated amplifier rather than a stripped-down amplifier built simply to hit a lower price point.

You get the convenience of one chassis while eliminating the additional space, cabling and connections required by separate preamp and power amp components.

200 Watts Per Channel

The Bi-200's dual-mono amplifier section delivers:

• 200 watts per channel into 8 ohms
• 300 watts per channel into 4 ohms

That's real power for serious loudspeakers.

Rather than limiting the Bi-200 to small bookshelf speakers or highly efficient designs, Bryston gives it enough output to build a substantial full-range two-channel system around it.

Dual-Mono Amplifier Architecture

The Bi-200 uses a dual-mono amplifier design.

Keeping the two channels electrically independent helps improve channel separation and allows each side of the amplifier to respond to the demands of its respective loudspeaker.

It's the kind of architecture you'd expect from Bryston's separate power amplifiers, brought into an integrated platform.

Fully Balanced Discrete Signal Path

The Bi-200 uses a fully balanced discrete circuit path through the preamplifier section.

Bryston also uses an analog volume-control architecture that is digitally controlled.

That distinction is important.

The music isn't being converted into digital audio just so you can adjust the volume. The signal remains in the analog domain while digital control provides precise adjustment and repeatability.

Six Analog Sources

The Bi-200 can accommodate up to six analog sources, making it easy to build a complete two-channel system around one amplifier.

Depending on the system, those sources could include:

• DAC or network streamer
• CD player
• Turntable
• Tuner
• Tape deck
• Music server with analog output
• Other analog source components

Add the appropriate phono option and a turntable can become part of the system without requiring another chassis.

Optional MM or MM/MC Phono

For vinyl listeners, The Grid offers the Bi-200 in two phono-equipped configurations.

MM Phono

The MM Phono version adds a dedicated Moving Magnet phono stage.

This is the right choice for most conventional MM cartridges and compatible high-output Moving Coil designs.

MM/MC Phono

The MM/MC version expands the analog capability for systems using either Moving Magnet or Moving Coil cartridges.

If you're building a serious vinyl front end—or expect to move to a low-output MC cartridge later—the MM/MC configuration gives you more flexibility without adding an external phono preamplifier.

The Grid can help determine which version makes sense based on your cartridge and turntable.

Independent Headphone Amplifier

The Bi-200 also includes an independent buffered headphone output.

That gives headphone listeners a dedicated output rather than simply tapping the speaker amplifier through a resistor network.

For a system where both loudspeaker and headphone listening matter, that's one less component you may need to add.

Channel Balance Control

Bryston includes channel balance adjustment, allowing the relative level between the left and right channels to be corrected when necessary.

It's a small feature until you need it—and one that's increasingly uncommon on minimalist high-end integrated amplifiers.

Built for Real-World Systems

The Bi-200 isn't designed only for a rack where everything is operated manually.

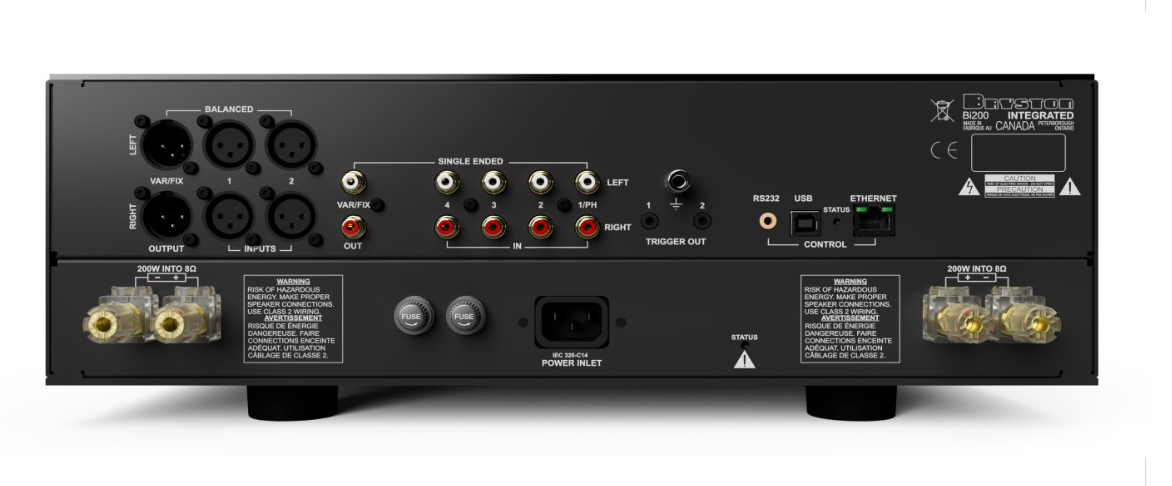

System integration features include:

• Ethernet control
• USB control
• 2-way RS232
• 12V DC trigger output
• BR-4 remote compatibility

That makes the Bi-200 equally comfortable in a dedicated listening room or as part of a professionally integrated control system.

No Cooling Fans

Despite its substantial power output, the Bi-200 is fully convection cooled.

There are no internal fans creating mechanical noise in the listening room.

Soft-Start Protection

A large high-current amplifier can draw substantial current when first switched on.

Bryston's microprocessor-controlled Soft-Start system manages startup to help prevent the amplifier from unnecessarily tripping household circuit breakers.

It's another example of Bryston designing the amplifier for actual long-term ownership rather than just impressive specifications.

Key Specifications

• Type: High-Power Integrated Amplifier
• Architecture: BP-19 Preamplifier + 3B Power Amplifier
• Circuit Path: Fully Balanced Discrete
• Amplifier Configuration: Dual Mono
• Power Output into 8Ω: 200W per channel
• Power Output into 4Ω: 300W per channel
• Analog Sources: Up to 6
• Phono: Optional MM or MM/MC
• Volume Control: Analog with Digital Control
• Headphone Output: Independent Buffered
• Channel Balance: Adjustable
• Frequency Response: 20Hz–20kHz ±0.05dB
• IMD: ≤0.0005%
• Cooling: Passive Convection — No Fans
• Control: Ethernet, USB and 2-Way RS232
• Remote: Compatible with Bryston BR-4
• Trigger: DC Trigger Output
• Standby Consumption: <0.5W
• Idle Consumption: ≤60W
• Dimensions: 17" or 19" W × 4.6" H × 13" D
• Weight: 37 lbs. / 16.8 kg
• Warranty: Bryston 10-Year Analog Warranty
• Made in Canada

Standard, MM or MM/MC?

This decision is really about your turntable.

Choose Standard if you don't use vinyl or already own a dedicated phono preamplifier.

Choose MM Phono if you're using a Moving Magnet or compatible high-output Moving Coil cartridge and want to connect the turntable directly to the Bi-200.

Choose MM/MC Phono if you're using—or expect to use—a Moving Coil cartridge and want the greatest flexibility built directly into the amplifier.

If you're not sure, tell us which turntable and cartridge you're using. We'll match the correct Bi-200 configuration to it.

Why the Bi-200?

The attraction of the Bi-200 is pretty simple.

You can build a serious Bryston system without building a rack full of Bryston components.

You get the core architecture of a BP-19 and 3B, substantial power, a balanced discrete signal path, headphone capability and optional phono—all in one chassis.

Add a good source and the right pair of loudspeakers and you have the foundation of an extremely capable two-channel system.

Experience the Bryston Bi-200 at The Grid HiFi

The Grid HiFi is your Bryston and high-end two-channel audio expert in Houston, Texas.

An integrated amplifier still has to be properly matched to the rest of the system. Speaker impedance and sensitivity, room size, listening distance, source components and cartridge choice can all determine whether an amplifier is the right fit.

The Grid can help configure the Standard, MM or MM/MC Bi-200, match it with the right turntable, cartridge, streamer, DAC, CD player and loudspeakers, and put together the complete system around it.

For vinyl systems, we can also handle professional cartridge installation and alignment, tracking force, VTA, azimuth and phono-stage matching where applicable.

Contact The Grid HiFi for Bryston Bi-200 availability, phono configuration, demonstrations and complete system matching.
