Overview

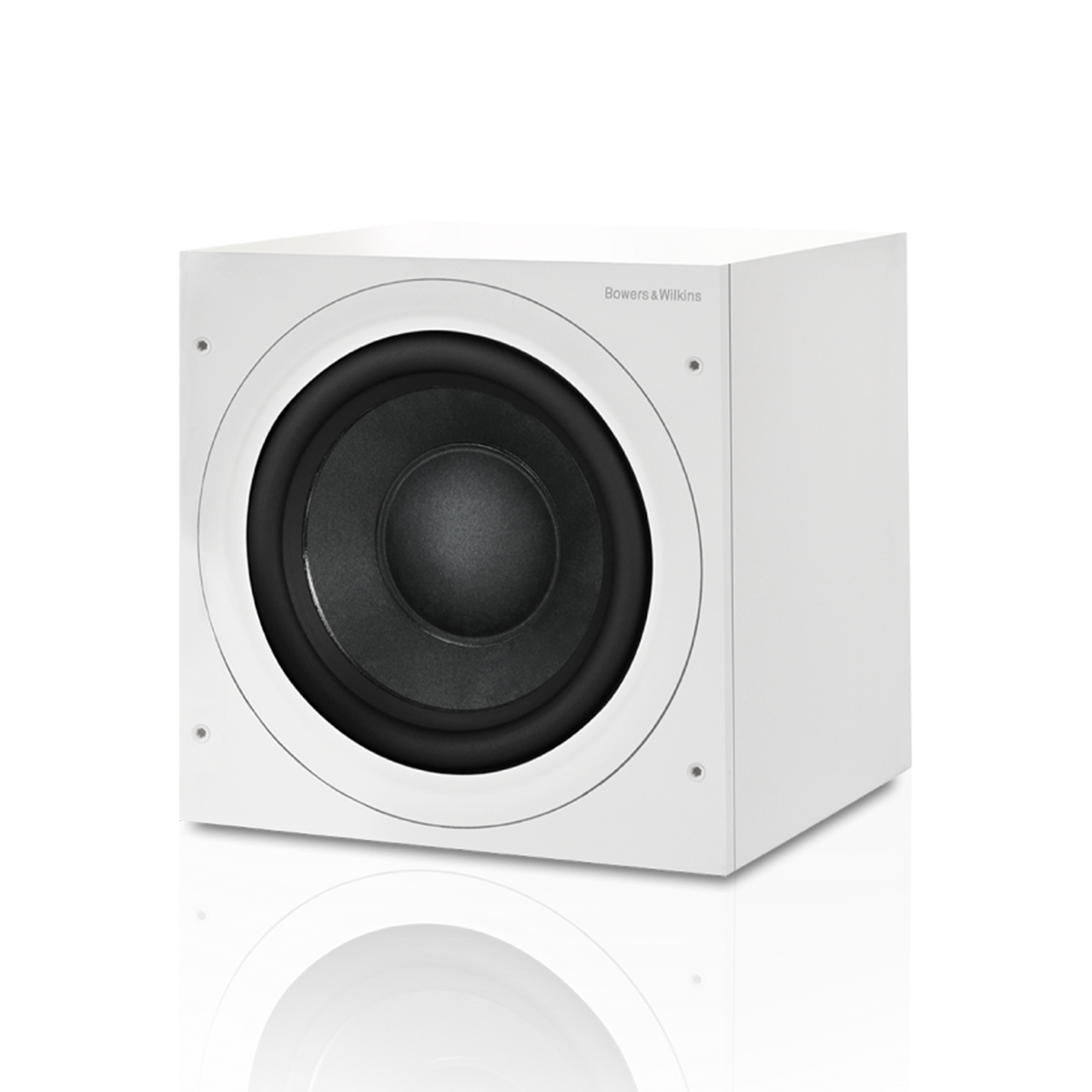

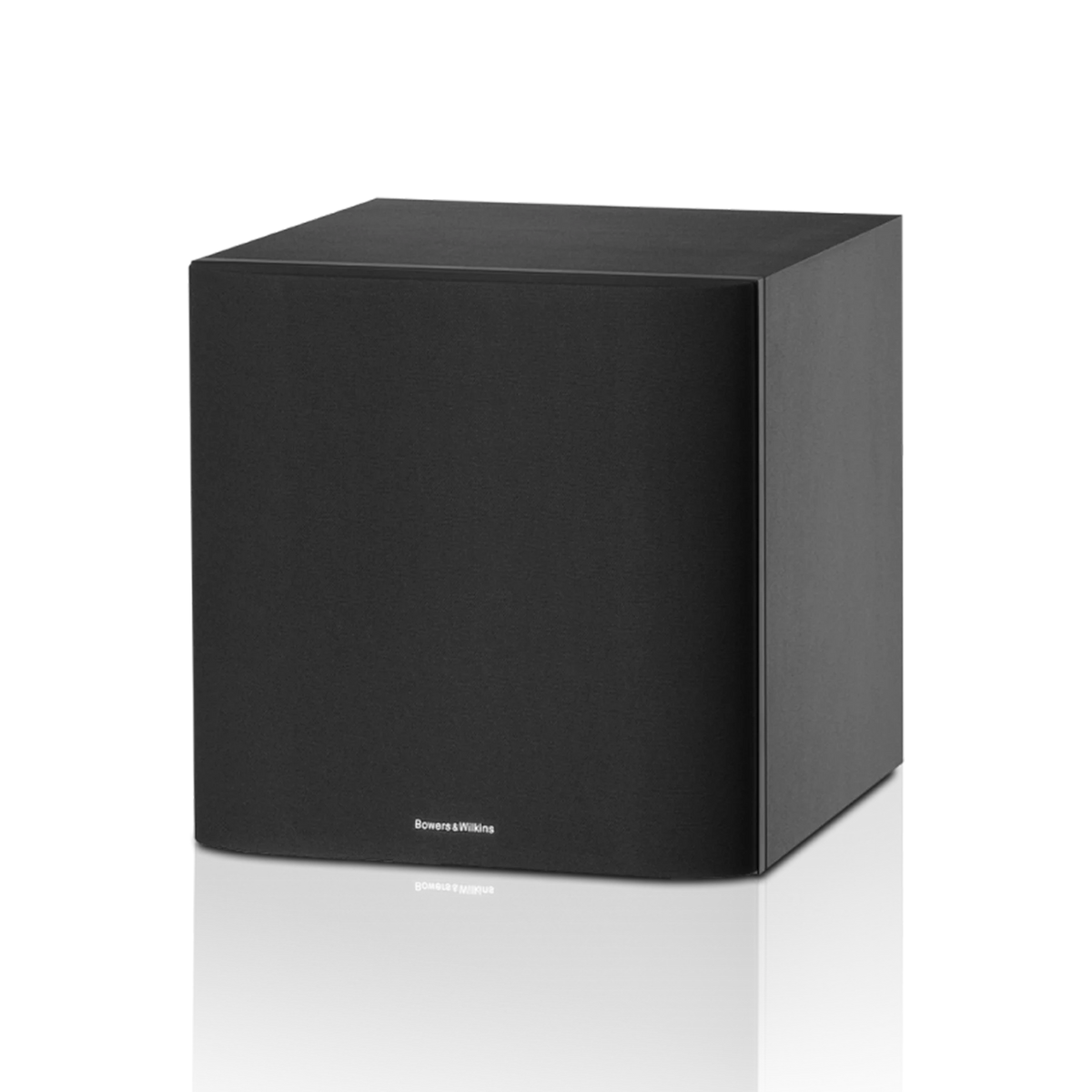

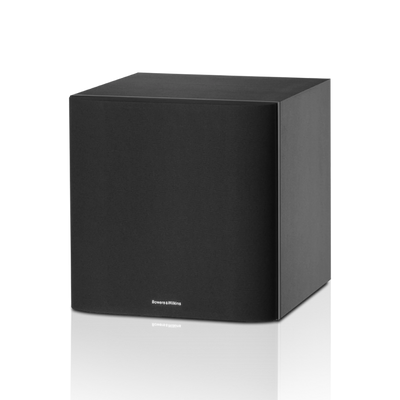

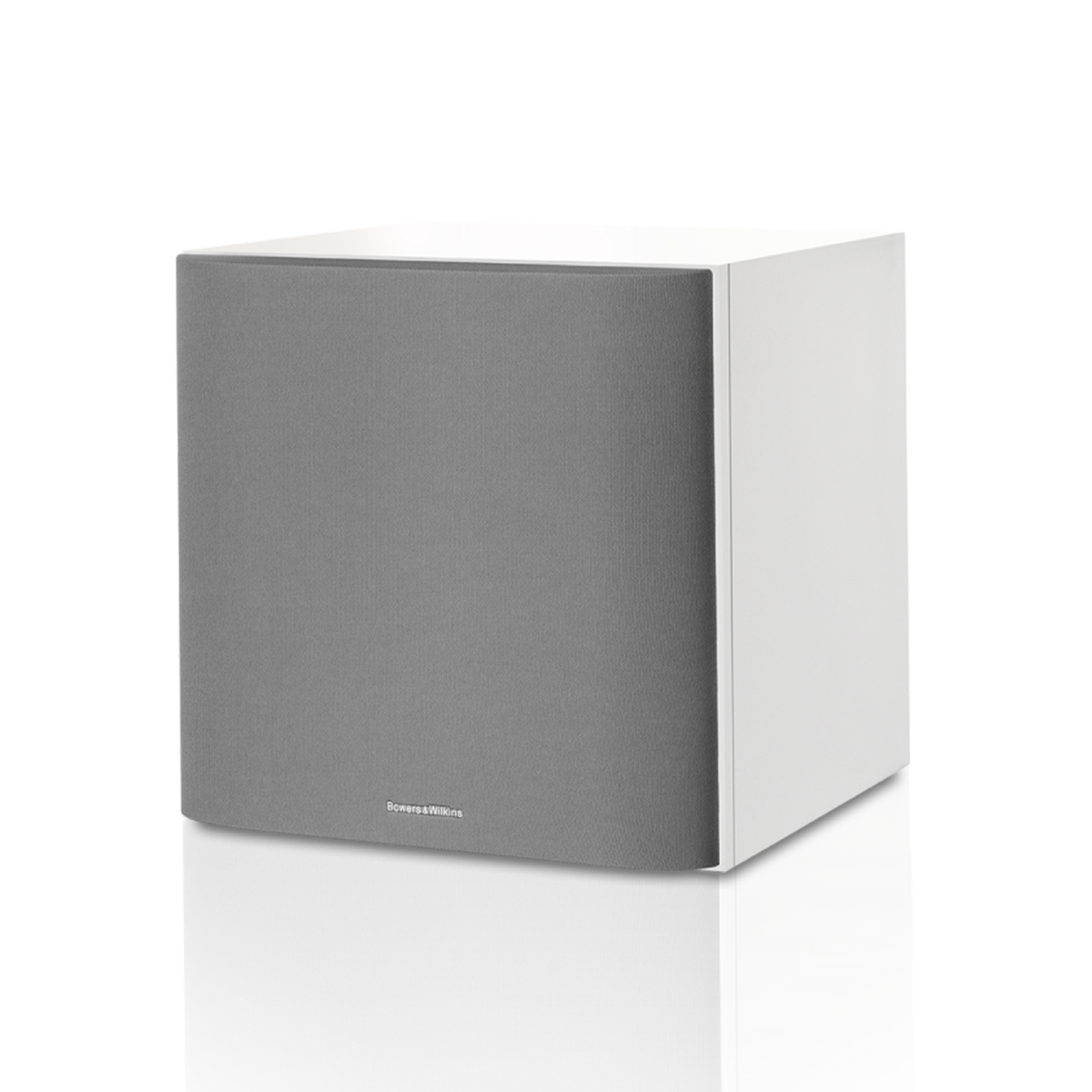

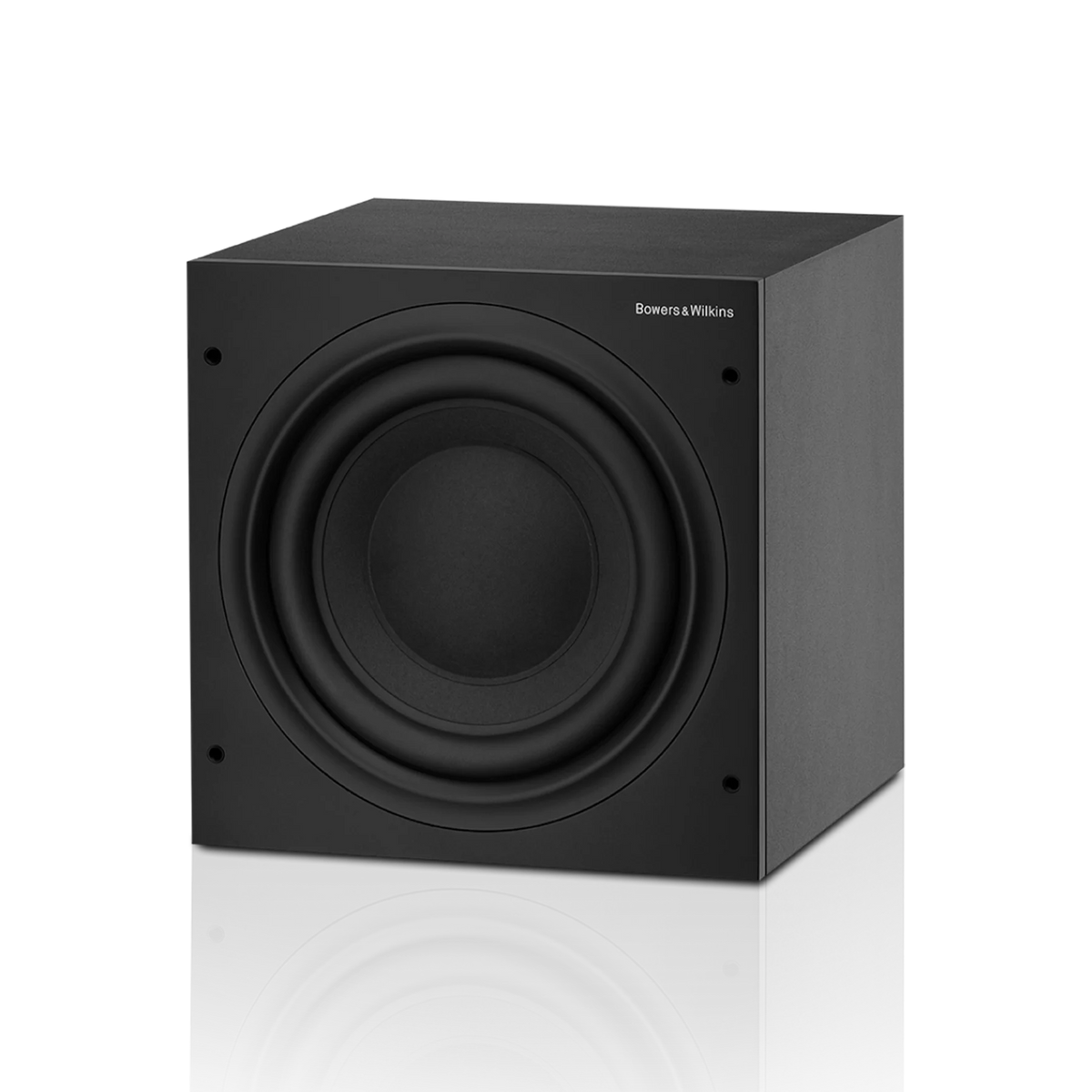

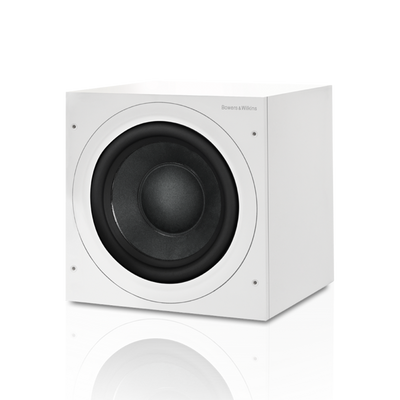

Bowers & Wilkins ASW610XP – 10-Inch 500W Powered Subwoofer
The Bowers & Wilkins ASW610XP is a high-performance 10-inch powered subwoofer engineered to deliver deep, powerful, and controlled bass for premium stereo systems and home theaters. Featuring a long-throw Paper/Aramid Fibre cone driver, a 500-watt ICEpower Class D amplifier, and a rigid sealed-box enclosure, the ASW610XP combines substantial low-frequency output with the precision required for critical music listening.
As the most powerful model in the Bowers & Wilkins ASW Series, the ASW610XP is designed for larger listening spaces and demanding soundtracks. Adjustable bass extension, crossover settings, and phase controls allow precise integration with bookshelf speakers, floorstanding loudspeakers, and multichannel home theater systems.
Key Features
-
10-Inch Long-Throw Woofer: A 250mm Paper/Aramid Fibre cone combines stiffness and controlled movement for accurate, low-distortion bass reproduction.
-
500-Watt ICEpower Amplifier: High-efficiency Class D amplification delivers substantial dynamic headroom and precise woofer control.
-
Sealed-Box Construction: A closed cabinet supports tight transient response, articulate bass, and consistent low-frequency performance.
-
Bass Extension to 18Hz: Reaches 18Hz at -6dB in its deepest extension setting.
-
Adjustable Bass Extension: Three selectable settings allow the subwoofer's low-frequency behavior to be tailored to the room and system.
-
Variable Low-Pass Crossover: Fourth-order adjustable filtering provides flexible integration with different loudspeakers.
-
Line-Level and Speaker-Level Inputs: RCA and binding-post connections support a wide range of stereo amplifiers and AV receivers.
-
12V Trigger Input: Enables convenient power control when connected to compatible equipment.
-
Automatic Standby: Auto-sensing operation helps simplify daily use.
-
Premium Finishes: Available in Matte Black and Matte White.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
ASW610XP |
|
Product Type |
Active sealed-box powered subwoofer |
|
Driver |
1 × 10-inch (250mm) Paper/Aramid Fibre long-throw woofer |
|
Amplifier |
500W ICEpower Class D |
|
Frequency Response |
25Hz–40/140Hz adjustable (±3dB, EQ position A) |
|
Frequency Range |
18Hz–25/140Hz adjustable (-6dB, EQ position A) |
|
Bass Extension A |
18Hz (-6dB) |
|
Bass Extension B |
23Hz (-6dB) |
|
Bass Extension C |
28Hz (-6dB) |
|
Low-Pass Filter |
Active fourth-order, variable cutoff |
|
Audio Inputs |
RCA line-level, speaker-level binding posts |
|
Trigger Input |
12V, 3.5mm |
|
Phase Control |
Selectable phase switch |
|
Power Management |
Auto-sense on/standby |
|
Input Impedance |
33kΩ |
|
Signal-to-Noise Ratio |
Greater than 80dB |
|
Power Consumption |
98W operating / 1W standby |
|
Height |
12.8 in (325mm), excluding feet |
|
Height With Feet |
13.3 in (337mm) |
|
Width |
12.8 in (325mm) |
|
Depth |
13.7 in (348mm), excluding grilles |
|
Depth With Grilles/Controls |
14.8 in (375mm) |
|
Weight |
41.1 lbs (18.65kg) |
|
Cabinet Finishes |
Matte Black, Matte White |
Powerful, Controlled Bass for Music and Movies
The ASW610XP delivers the low-frequency authority required for orchestral recordings, electronic music, and dynamic movie soundtracks. Its Paper/Aramid Fibre cone provides the stiffness needed for controlled bass reproduction, while the 500-watt amplifier supplies the power required for demanding passages.
Unlike subwoofers that rely on a ported enclosure, the ASW610XP uses a sealed cabinet to support accurate transient response and clean integration with high-performance loudspeakers. Adjustable bass extension and crossover controls provide the flexibility to optimize performance for room acoustics, speaker placement, and listening preferences.
