Bryston BIT RM Series Isolation Transformers

High-current AC power isolation and surge protection for reference audio systems, power amplifiers, and premium home theaters. Available in 15-amp and 20-amp configurations.

The Bryston BIT RM Series Isolation Transformers provide a dedicated, low-noise AC power source for high-performance audio and video components. Engineered around a substantial toroidal isolation transformer, the BIT series reduces incoming electrical interference while preserving the instantaneous current demanded by powerful amplifiers.

Available in BIT15 and BIT20 configurations, these power isolation units combine Plitron transformer technology, Narrow Bandwidth Technology (NBT), Series Mode Surge Suppression, and medical-grade AC outlets in a chassis suitable for premium equipment racks.

Toroidal AC Power Isolation

At the heart of every BIT RM unit is a high-capacity toroidal isolation transformer designed to electrically isolate connected equipment from noise on the incoming AC supply.

This architecture helps attenuate interference associated with household appliances, lighting controls, motors, and other equipment sharing the electrical system.

Unlike power conditioners that rely primarily on conventional filtering networks, the BIT RM uses transformer-based isolation to deliver clean power without unnecessarily restricting current availability.

High Instantaneous Current Delivery

Power amplifiers can demand substantial current during musical transients, even when their average power consumption is relatively modest.

The BIT RM Series is engineered with low source impedance to accommodate these short-duration demands.

• BIT15: 15A continuous output with up to 300A instantaneous peak-current capability

• BIT20: 20A continuous output with up to 400A instantaneous peak-current capability

This high-current architecture makes the BIT series suitable for demanding audio systems where conventional current-limiting power conditioners may be undesirable.

Narrow Bandwidth Technology

Bryston's Narrow Bandwidth Technology (NBT) is designed to attenuate high-frequency electrical noise while allowing the fundamental 60Hz AC power signal to pass.

The transformer-based design reduces differential-mode and common-mode interference without depending exclusively on additional external filtering circuits.

NBT helps provide a quieter electrical environment for sensitive digital sources, preamplifiers, DACs, and amplification equipment.

Non-Sacrificial Series Mode Surge Protection

The BIT RM Series incorporates Series Mode Surge Suppression (SMSS) to protect connected equipment against damaging voltage transients.

Unlike conventional metal-oxide varistor (MOV) protection, which can degrade after repeated surge events, the series-mode design is engineered for repeated surge suppression.

Its protection circuitry begins responding to transients approximately 2 volts above the nominal AC peak, without diverting surge energy into the equipment grounding system.

Low-Noise Transformer Engineering

Bryston employs Plitron's LONO low-noise transformer technology to minimize mechanical hum associated with power transformers.

This design helps reduce audible vibration caused by challenging AC line conditions, including DC offset.

The BIT20 additionally incorporates mechanical transformer isolation to further reduce transmitted vibration.

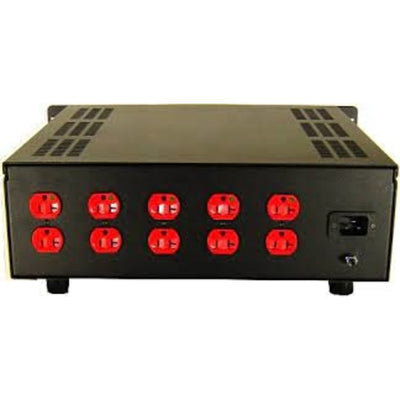

Ten Medical-Grade AC Outlets

Both models provide ten AC outlets, allowing multiple audio and video components to receive isolated power from a single unit.

The North American models use medical-grade receptacles designed for secure electrical contact and dependable connection.

The BIT RM Series can supply compatible components including:

• Stereo and multichannel power amplifiers

• Preamplifiers and integrated amplifiers

• Digital-to-analog converters

• Network music streamers and digital transports

• AV processors and source components

Total connected loads must remain within the selected unit's rated current capacity.

Rack-Mount and Component-Width Options

The BIT RM Series is offered with a choice of front panels to accommodate different installations.

A 17-inch component-style front panel is available in Black or Silver, while the 19-inch rack-mount front panel is intended for equipment-rack installations.

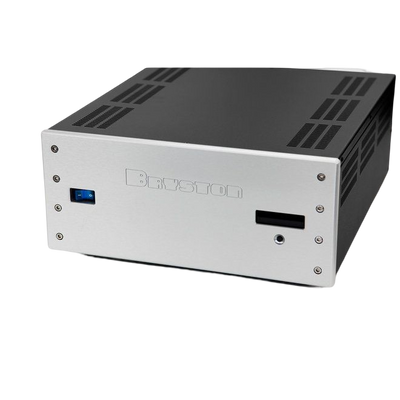

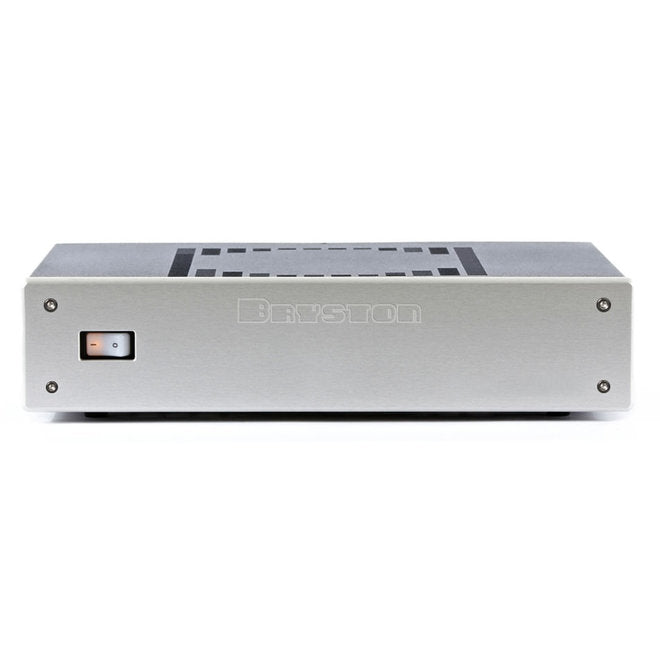

The BIT15 is approximately 4 inches tall, while the higher-capacity BIT20 measures 6.3 inches tall.

Technical Specifications

Choosing Between BIT15 and BIT20

Bryston BIT15 RM: Ideal for source components, DACs, preamplifiers, and audio systems with more modest amplifier power requirements. Its 15-amp output provides transformer isolation and surge protection in a lower-profile chassis.

Bryston BIT20 RM: Designed for more demanding audio and home theater installations. Its 20-amp capacity, higher instantaneous current capability, and additional transformer isolation make it particularly suitable for systems incorporating powerful amplifiers.

The BIT20 requires an appropriately rated electrical circuit and compatible power connection.

Bryston BIT RM Series at The Grid HiFi

The Bryston BIT RM Series Isolation Transformers provide transformer-based power isolation, high-current delivery, and non-sacrificial surge protection for sophisticated audio and home theater systems.

The Grid HiFi specializes in reference two-channel audio, high-performance amplification, premium power management, and complete system integration.

Protect your investment and build your system on a cleaner power foundation. Contact The Grid HiFi at (713) 218-8120 for configuration guidance and availability.
