Barco Njord Projector

$104,995.00

Overview

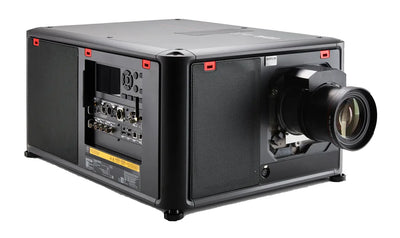

Barco Njord

Njord inherits a lot from its predecessor Wodan, however, the light source and optical engine are completely redesigned, made smaller, more efficient, and most importantly optimized for perfect cinematic colors. Njord not only offers a pleasing uniform image, it also has the power to illuminate large screens or high ambient light environments; like outdoor entertainment spaces and contemporary glass home designs. These environments will all benefit from an unbelievably bright and detailed image with spectacular color fidelity for the most demanding clients.

Single Step Processing SSP™

Pulse is a hardware and software based platform that simplifies the signal allowing it to transmit from source to screen much faster and more efficiently. We use an advanced image processing technique to display the image on the screen without any artefacts and with the lowest possible processing lag (<20ms with all image processing), this is made possible by our Single Step Processing (SSP™).

State of the art electronics

All new Pulse electronics have been designed to process 4K with HDMI^TM 2.0a and HDCP 2.2 and the optical engine utilises the very latest 0.9" DMD DLP chipset, delivering 5,120 x 2,160 pixels to screen. Njord also features HDR, motorised lenses and Barco’s unique RealColor processing, enables simple and accurate calibration to any desired color standard or white point.

Building Blocks

Njord offers 4K UHD resolution for superb image quality. Thanks to its modular design Njord is easy to service. Njord is the most compact rugged projector that offers up to 12,500 lumens light output currently available. One of its most striking features is that as standard it’s equipped with a fully featured-on-demand option for flexible light output between 4,000-12,500 lumens.

Laser Light Source

Outstanding image quality also requires an exceptional light source which is why we designed Njord with a brand new laser engine, significantly improving image uniformity (95%) over its predecessor. Njord is also equipped with custom selected lasers to deliver a DCI/P3 color gamut. Lasers last longer than traditional projector lamps, are not as fragile and offer nearly instant on/off.

Specifications

Download spec sheet

General specifications

Projector type: Three chip DLP

Light source lifetime: Up to 20,000

CLO (constant light output): Yes

Optical dowser: Yes

Technology: 3 x 0.90" DMD™ with sealed core

Integrated web server: Yes

Resolution: 3,840 x 2,160 (4K UHD)

Diagnostics: via Prospector web interface

Aspect ratio: 1.78:1 (16:9)

Light source: Laser phosphor

Light output: Up to 12,500 ANSI Lumens Dimable to 4,000 lumens

Contrast ratio: 20,000:1 (with DynaBlack enabled), 2,000:1 Sequential 600:1 ANSI

Brightness uniformity: >90%

Input resolutions: HDMI^TM: Up to 4,096 x 2,160 @ 24/25/30/50/60Hz DisplayPort (Single Input): Up to 4,096 x 2,160 @ 24/30/50/60Hz via Optional Quad DP1.2 Input Card DisplayPort (Layout Mode: 2 x 2) *: Up to 1,920 x 1,080 @ 120Hz Up to 2,048 x 1,080 @ 120Hz DisplayPort (Layout Mode: 4 x 1) *: Up to 960 x 2,160 @ 120Hz * Specialist GFX cards may be required

Lens range: (R9801661) - TLD+ (0.41:1) - 90 Degree Lens (R9862001) - TLD+ (0.73 - 0.94:1) - 90 Degree Lens (R9801414) - TLD+ (0.92 - 1.33:1) (R9862005) - TLD+ (1.24 - 1.56:1) (R9862010) - TLD+ (1.49 - 2.02:1) * (R9862020) - TLD+ (2.01 - 2.76:1) * (R9862030) - TLD+ (2.69 - 4.41:1) * (R9862040) - TLD+ (4.37 - 7.35:1) * (R9829997) - TLD+ (6.95 - 10.83:1) * Standard Lens Option(s)

Latency: TBD

Optical lens shift: Up to 73% vertical lens shift & up to 28% horizontal lens shift (depending on lens selection) Visit the Barco Residential Lens Calculator for further information Download Lens & Airflow Data Here

Color correction: P7 RealColor™

Color gamut: Up to DCI (P3)

Image processing: Embedded Warp & Blend Engine

WARP: 4-Corner Warp & Bow Correction via Warp Engine

Orientation: 360° Rotation

Network connection: 10/100 Ethernet via RJ45 connection

Operational humidity: 0 to 80% (relative humidity)

HDR: HDR10

3D: Active Stereoscopic 3D Additional hardware required please contact an authorized Barco representative for details

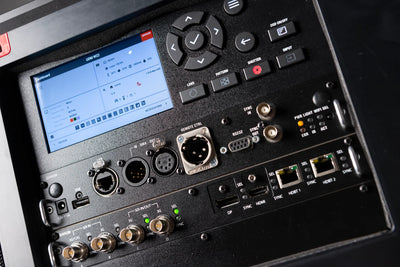

Inputs: 1 x HDMITM 2.0 (HDCP 2.2) 2 x HDBaseT (HDCP 1.4 - 9Gbps only) 1 x Display Port 1.2 Quad 3G / 12G SDI / BarcoLink 1 x RJ45 Ethernet 1 x RS232 1 x USB 2 x DMX (1 x Input / 1 x Output) 1 x XLR for Wired Remote 2 x 3D Sync (1 x Input / 1 x Output) Optional Upgrade: Quad DP1.2

Shipping Dimensions: Including Pallet - Excluding Lens (Packaged Separately) 850 x 665 x 613 mm 33.46 x 26.18 x 24.13 in.

Control: IR, RS232, IP, 12v Trigger Driver modules available for: Crestron, Control4, RTI & Savant WiFi (Optional), XLR Wired Remote, GSM (Optional)

Shipping weight: TBD

Power requirements: 110 - 130V / 200 - 240V / 50 - 60Hz

Standard accessories: Power Card / Remote control

Certifications: CE, FCC Class A and cCSAus

Power consumption: 1,723 W Max

Noise level (typical at 25°C/77°F): 43 dB(A)

Operating temperature: 0 to 40 °C at Sea Level Optimal Set Point: 20 °C

*: Firmware upgradable Please contact an authorized Barco representative for details

BTU per hour: Max. 5,876 BTU/h @ 200 - 240V Max. 4,811 BTU/h @ 110 - 130V

Airflow requirements: Air Inlet (from Rear w/Feet Down): Front / Top / Right Exhaust (from Rear w/Feet Down): Rear Clearance Requirements: Front: 40cm Left: 1cm Right: 40cm Rear: 40cm Top: 40cm

Exhaust airflow: 152 ft³/min @ 25 °C 258 m³/hour @ 25 °C Download Lens & Airflow Data Here

Dimensions (WxLxH): Excluding Lens 540 x 725 x 355 mm 21.26 x 28.54 x 14 in.

Weight: Excluding Lens 48kg / 105bs

Warranty: Limited 3 years parts and labor Extendable up to 5 years

Safety requirements: This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 2.3 is installed. Refer to the installation manual for further information.
