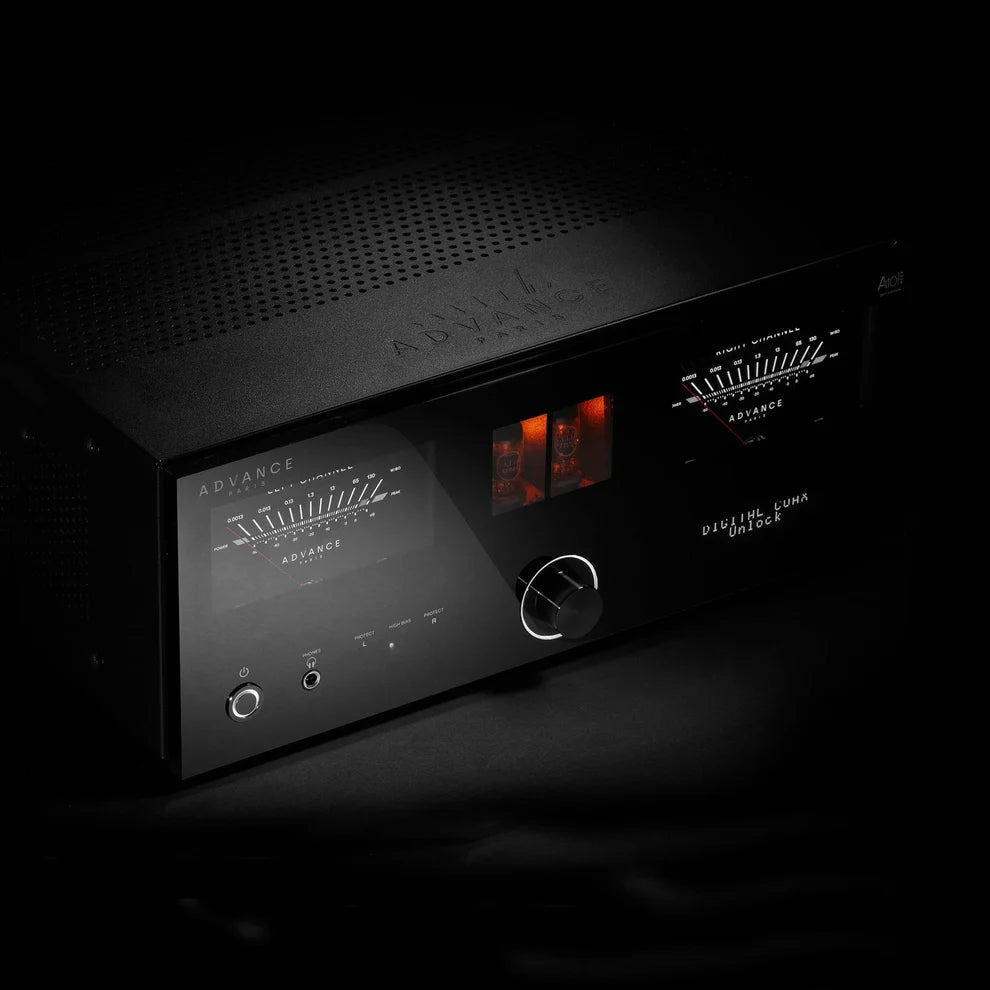

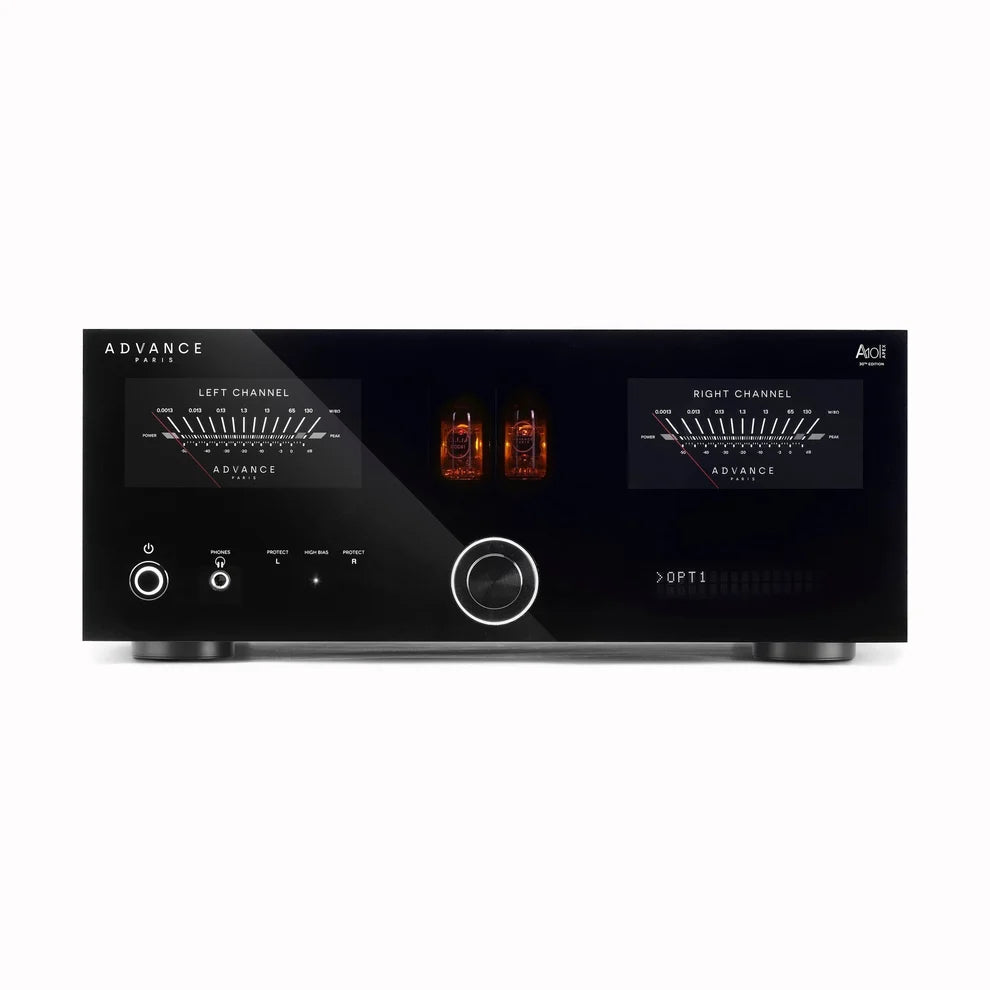

Advance Paris A10 APEX Hybrid Integrated Amplifier

The Advance Paris A10 APEX combines tube preamplification, powerful solid-state amplification, high-resolution digital audio, HDMI eARC and extensive analog connectivity in one beautifully designed integrated amplifier.

At its heart are two ECC81/12AT7 tubes in the preamplifier stage, feeding a high-current Class A/B power amplifier rated at 130 watts per channel into 8 ohms and 198 watts per channel into 4 ohms.

Add an ESS9018 DAC, MM phono stage, USB audio, balanced XLR input, dual subwoofer outputs and selectable High-Bias operation, and the A10 APEX becomes an extremely versatile centerpiece for a serious two-channel HiFi system.

Tube Preamplification + Class A/B Power

The A10 APEX uses two ECC81/12AT7 tubes in its preamplifier stage, bringing tube character into the signal path before handing amplification duties over to its powerful solid-state output stage.

Power output is rated at:

• 130W per channel into 8Ω
• 198W per channel into 4Ω
• 120W per channel into 8Ω from 20Hz–20kHz at less than 0.07% THD+N
• 183W per channel into 4Ω from 20Hz–20kHz at less than 0.07% THD+N

A substantial 380VA toroidal transformer provides the power supply foundation for the amplifier.

High-Bias Operation

The A10 APEX includes Advance Paris' selectable High-Bias mode, which doubles the Class A bias.

This allows the amplifier to remain in Class A operation at higher output levels before transitioning into Class A/B, giving listeners another way to get the smoothness and refinement associated with Class A while retaining the power and efficiency of a Class A/B amplifier when more output is needed.

ESS9018 DAC

Digital sources can connect directly to the A10 APEX through its built-in ESS9018 DAC.

Digital connectivity includes:

• 3 optical inputs
• 1 coaxial digital input
• USB Audio
• HDMI eARC
• Optional Bluetooth

Optical and coaxial inputs support PCM playback up to 24-bit/192kHz, while USB Audio supports 24-bit/192kHz PCM plus DSD64 and DSD128.

HDMI eARC for TV Audio

The inclusion of HDMI eARC makes the A10 APEX an excellent option for someone who wants a serious two-channel music system that can also handle television audio.

With a compatible television connected through HDMI eARC, switching on the TV can automatically start the A10 APEX, while television volume commands control the amplifier.

Instead of adding a separate soundbar or home theater receiver, your main HiFi system can handle both music and television.

Built-In MM Phono Stage

Vinyl listeners can connect a turntable equipped with a compatible Moving Magnet cartridge directly to the A10 APEX through its dedicated MM phono input.

For higher-performance analog systems using a moving-coil cartridge, The Grid can match the A10 APEX with an appropriate external MC phono preamplifier.

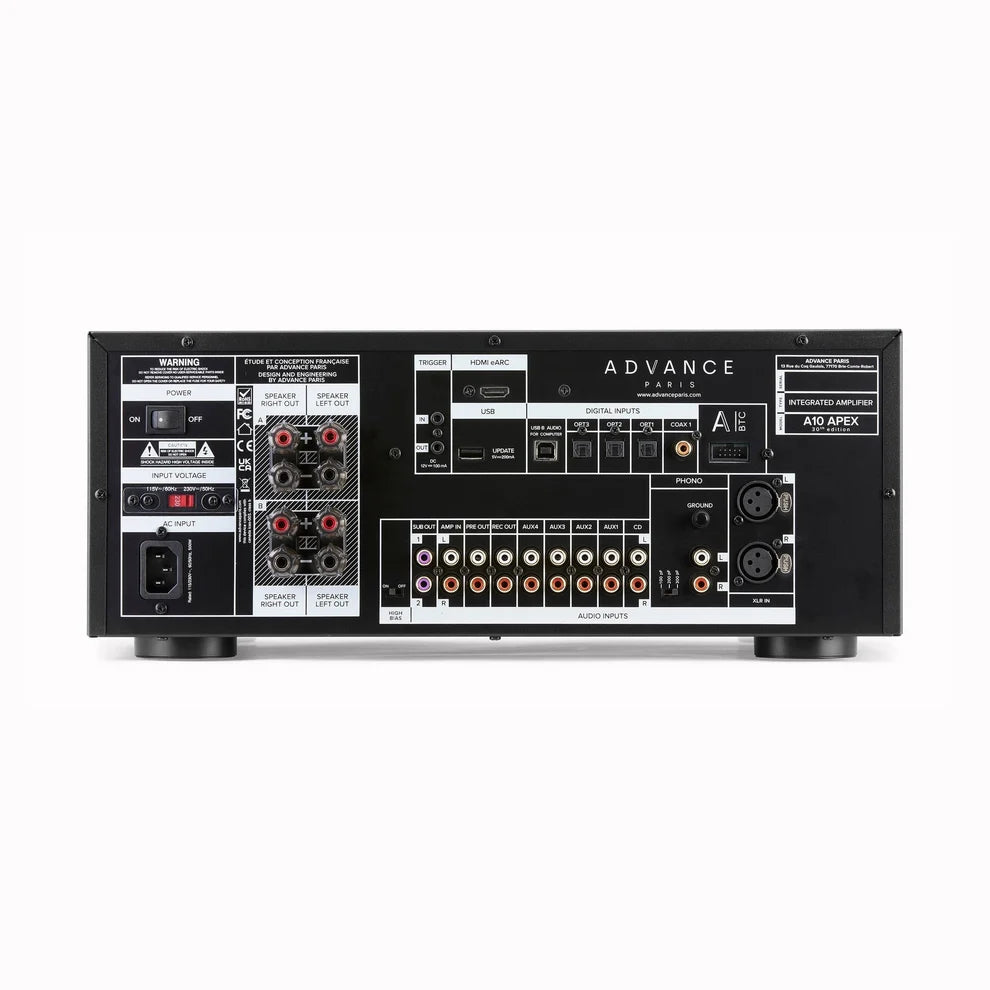

Extensive System Connectivity

The A10 APEX provides enough connectivity to become the control center for a complete audio system.

Analog connections include:

• 5 RCA line-level inputs
• 1 balanced XLR input
• MM phono input with ground
• RCA preamp output
• 2 subwoofer outputs
• AMP-IN
• Fixed REC-OUT
• Speaker Zones A and B
• 12V trigger input and output
• 6.35mm headphone output

The separate PRE-OUT and AMP-IN connections also provide additional flexibility if the system expands in the future.

Optional Two-Way Bluetooth

Advance Paris offers its optional A-BTC Bluetooth module for the A10 APEX.

The module provides Bluetooth aptX HD / Low Latency capability and can work in both directions—allowing music to be sent from a compatible phone, tablet or computer to the amplifier, or allowing audio from a source connected to the A10 APEX to be transmitted to compatible Bluetooth headphones.

Key Specifications

• Type: Hybrid Integrated Amplifier
• Preamplifier Tubes: 2 × ECC81 / 12AT7
• Amplifier: Class A/B
• Power at 8Ω: 130W × 2
• Power at 4Ω: 198W × 2
• Transformer: 380VA toroidal
• DAC: ESS9018
• Frequency Response: 20Hz–80kHz ±1dB
• Signal-to-Noise Ratio: 106dB
• Phono Input: Moving Magnet (MM)
• RCA Line Inputs: 5
• Balanced XLR Inputs: 1
• Optical Inputs: 3
• Coaxial Inputs: 1
• USB Audio: Yes
• HDMI eARC: Yes
• Subwoofer Outputs: 2
• Preamp Output: Yes
• AMP-IN: Yes
• Speaker Zones: A and B
• High-Bias Mode: Yes
• Optional Bluetooth: aptX HD / Low Latency
• Dimensions: 16.9" W × 6.9" H × 13.8" D
• Net Weight: 28.4 lbs.
