Overview

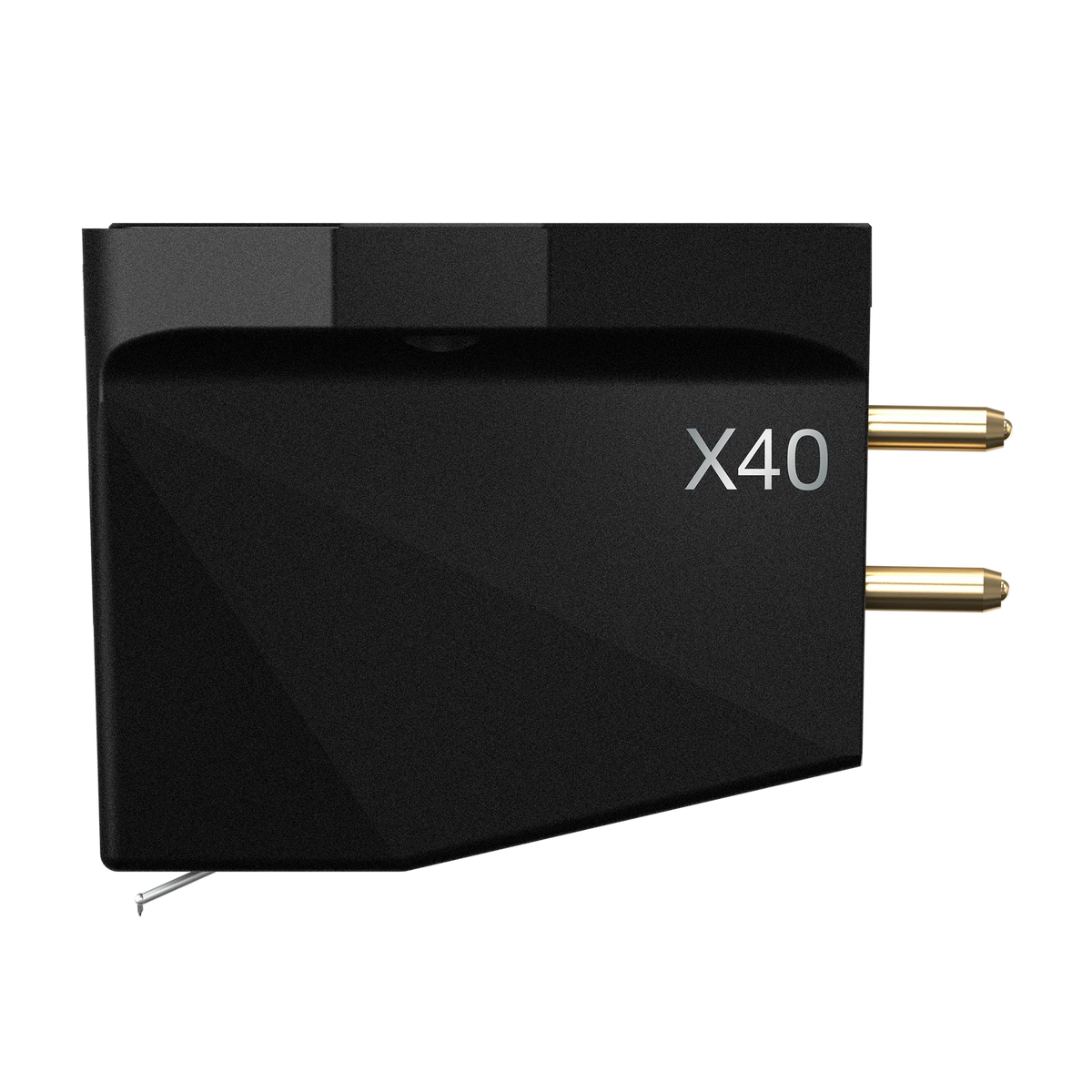

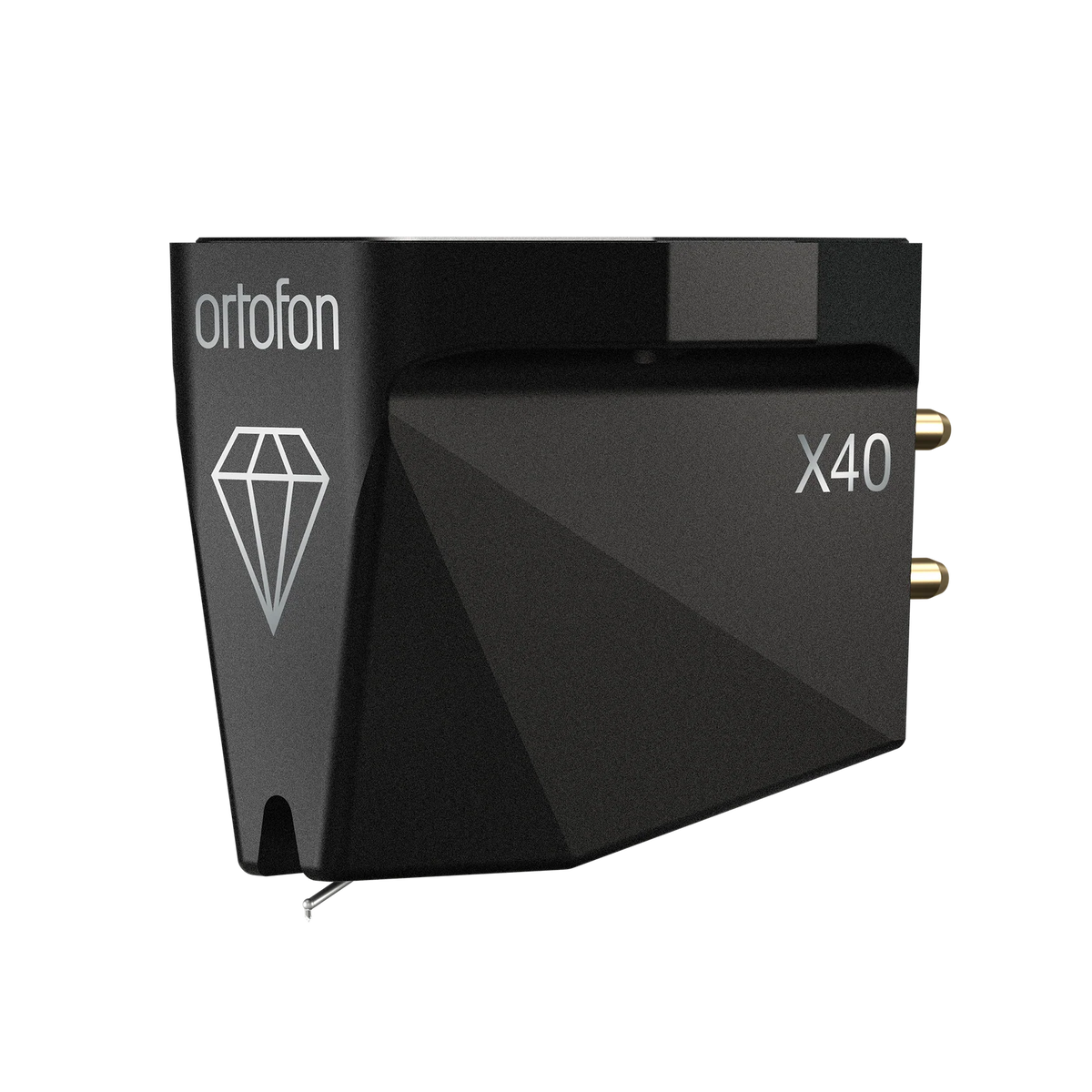

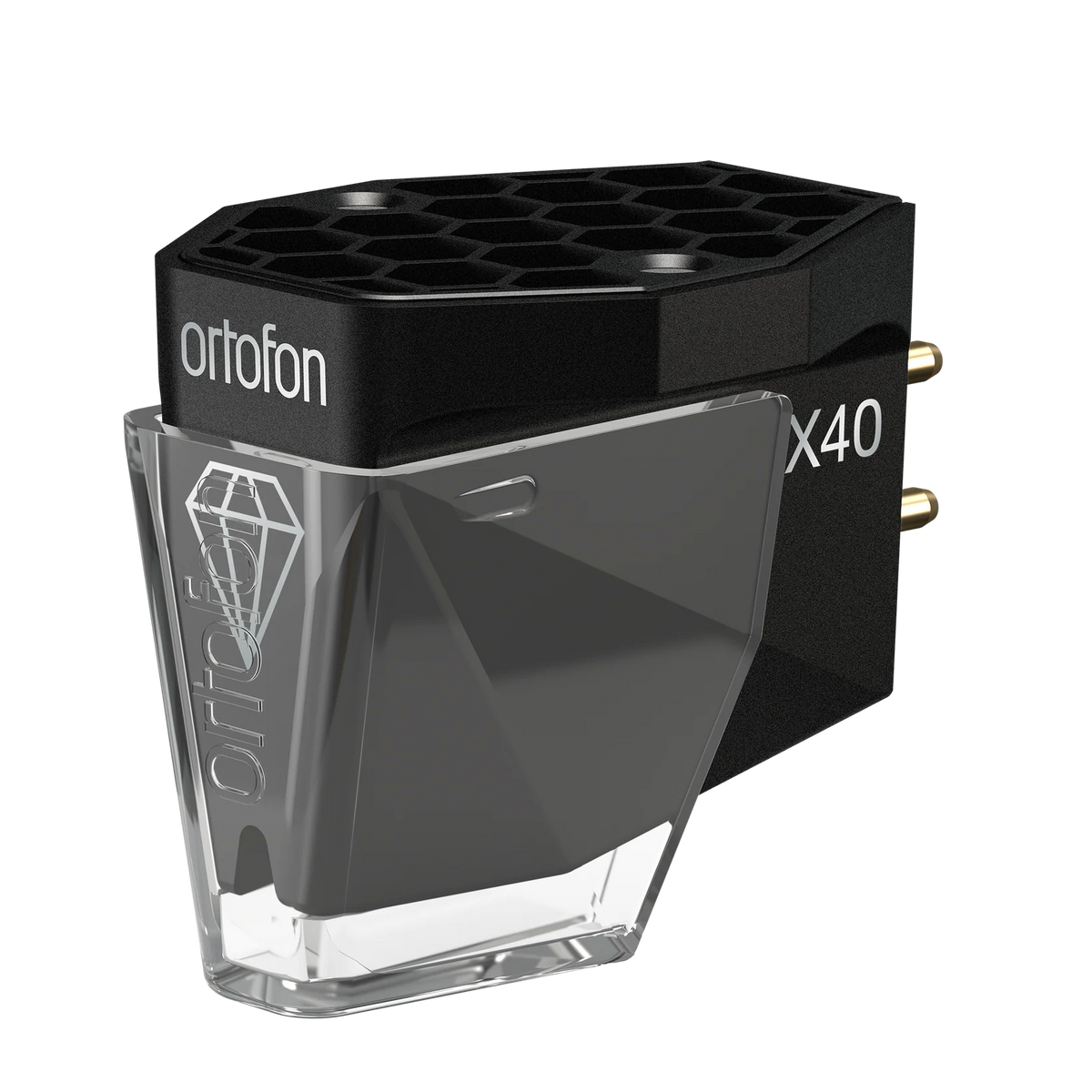

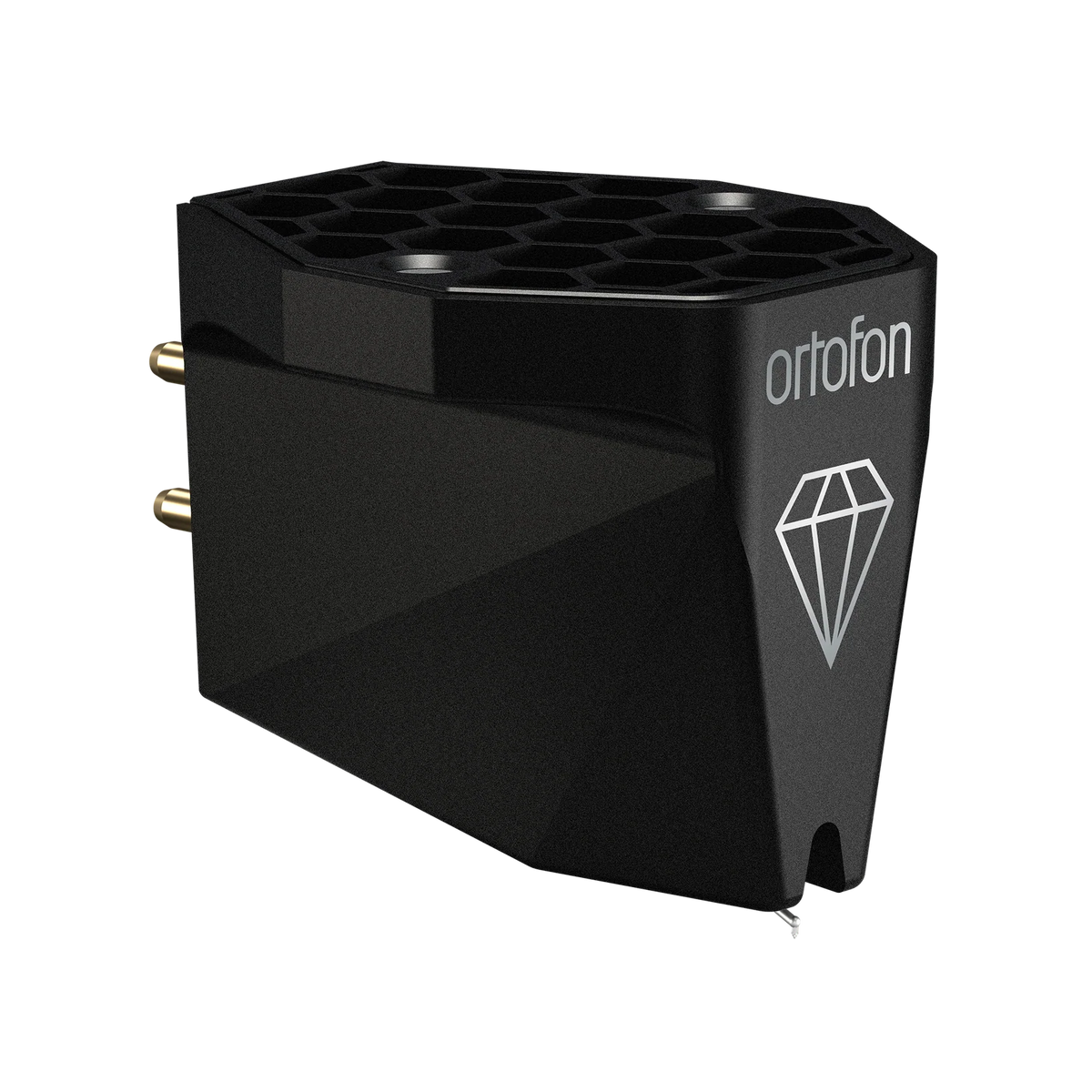

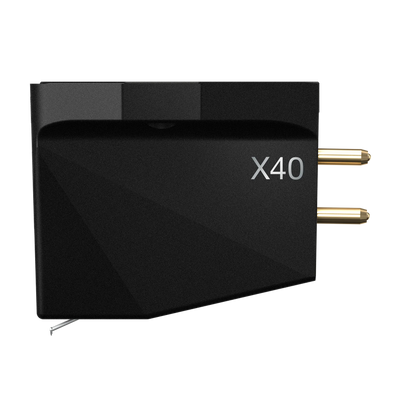

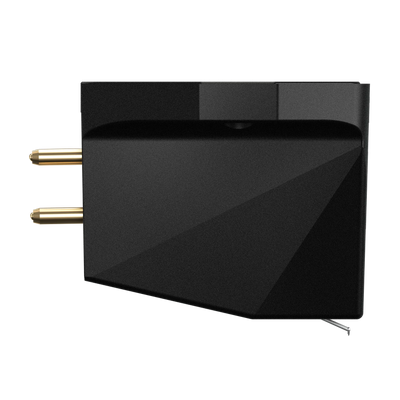

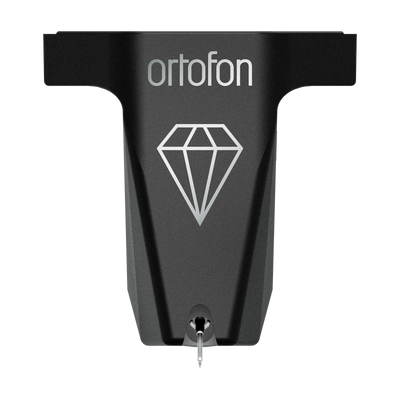

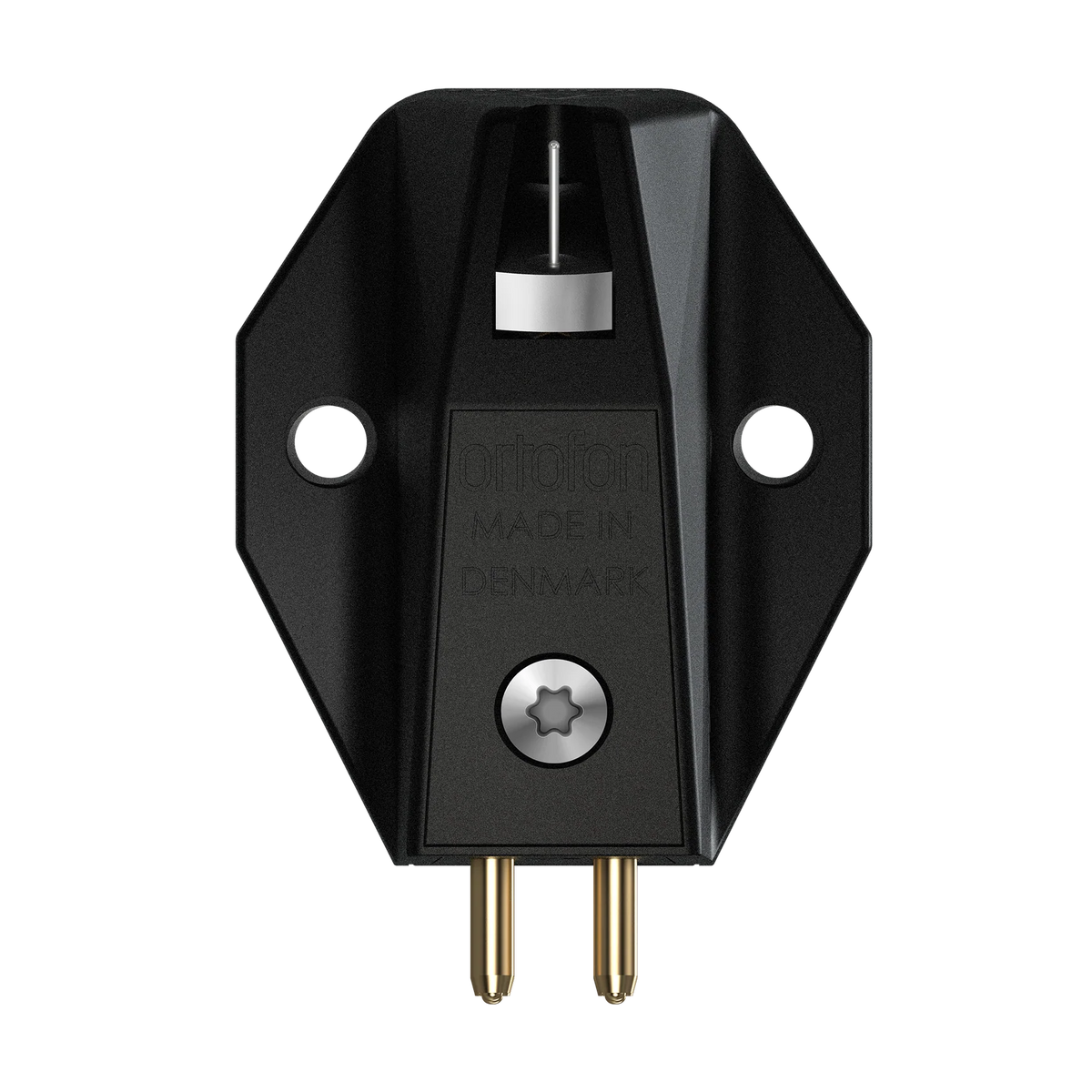

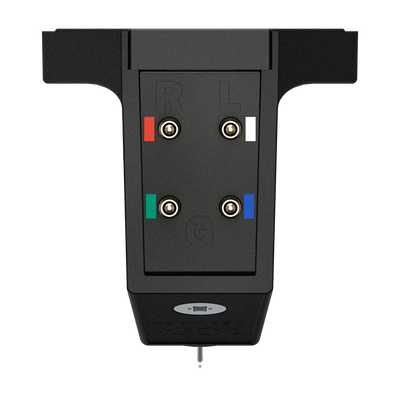

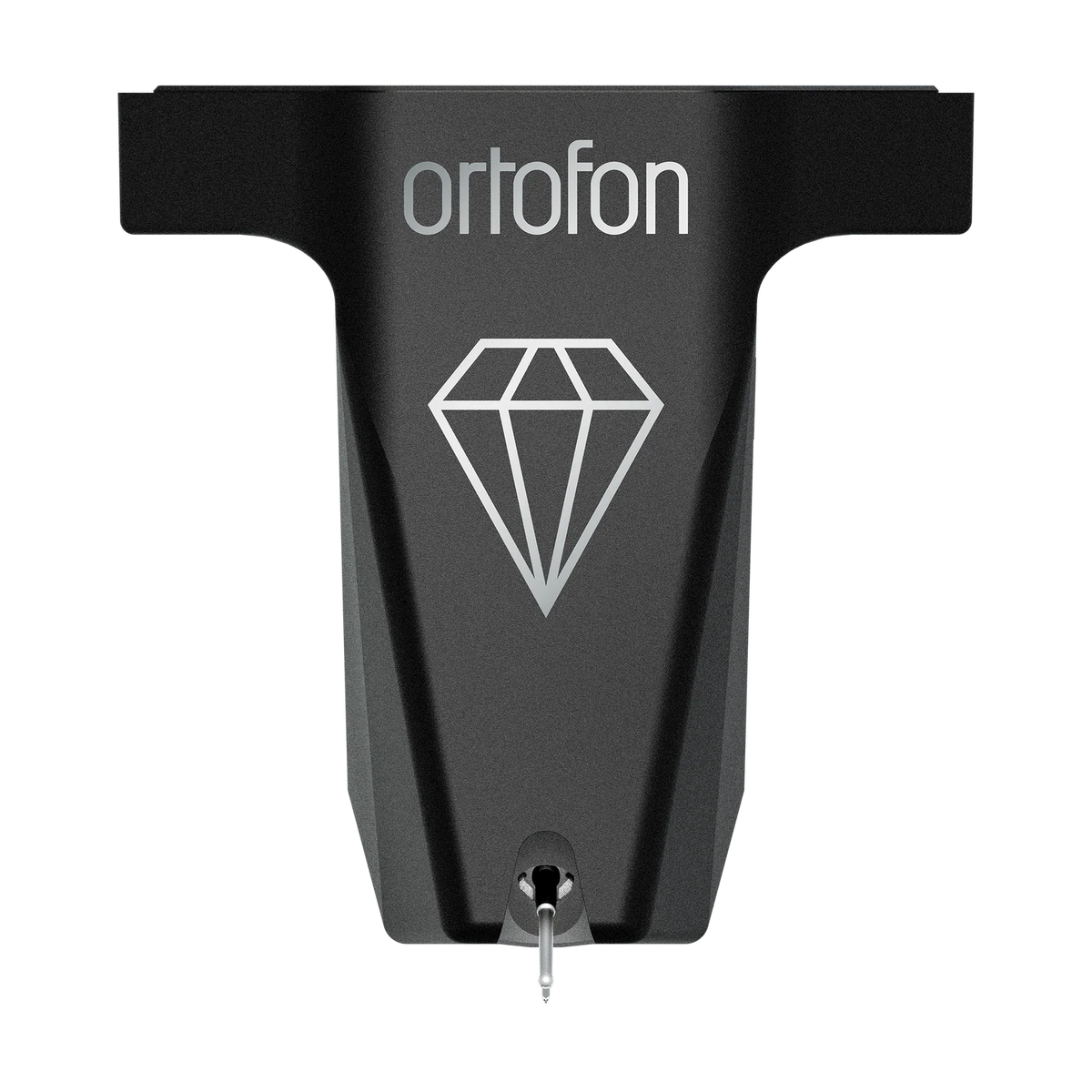

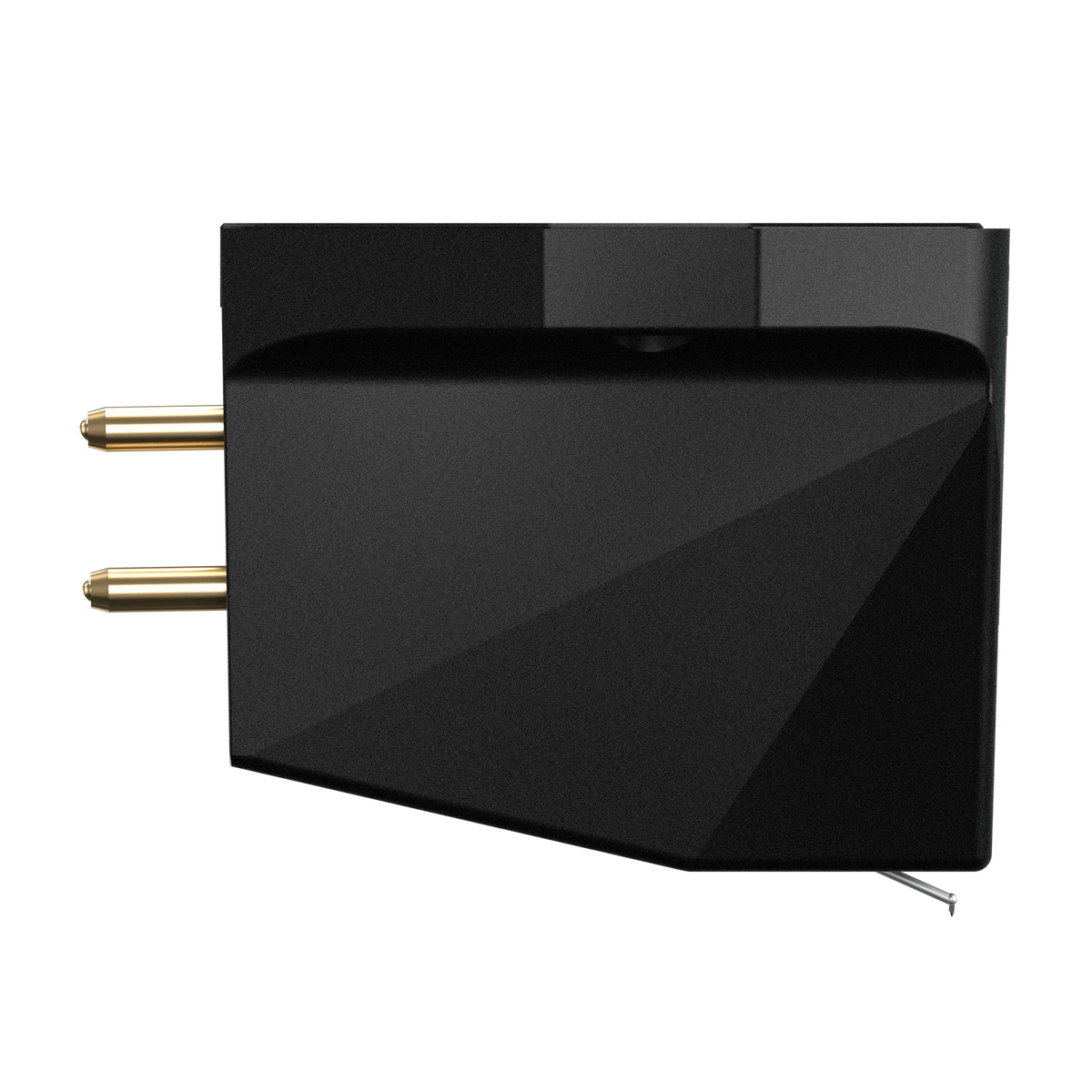

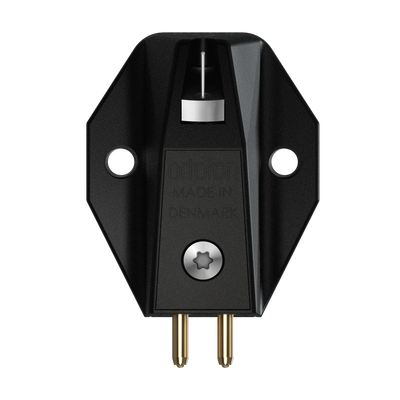

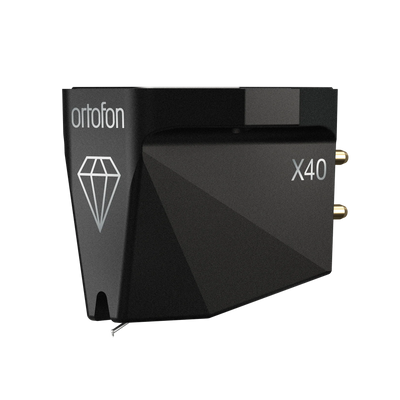

Ortofon MC X40 Moving Coil Phono Cartridge
Nude Shibata stylus. Boron cantilever. High-purity silver coils.
The Ortofon MC X40 is the flagship of the four-model MC X Series, combining a Nude Shibata diamond stylus with a lightweight, rigid boron cantilever. This advanced stylus assembly is engineered for precise groove tracking, exceptional detail retrieval, and a spacious, natural presentation.
The MC X40 also features Ortofon’s high-purity silver quad-coil system, optimized magnetic circuit, and honeycomb-structured stainless-steel frame. Custom-developed rubber dampers help control unwanted vibration and maintain stable stylus movement.
With a 0.4 mV output, the MC X40 is designed for a compatible moving coil phono stage.
Key Features
-
Nude Shibata diamond stylus: 6/50 µm profile for precise groove contact.
-
Boron cantilever: Lightweight, rigid construction for responsive tracking.
-
High-purity silver coils: Quad-coil moving coil generator.
-
Optimized magnet system: One-piece pole cylinder integrated with a rear magnet yoke.
-
Custom rubber dampers: Developed by Ortofon to stabilize coil movement.
-

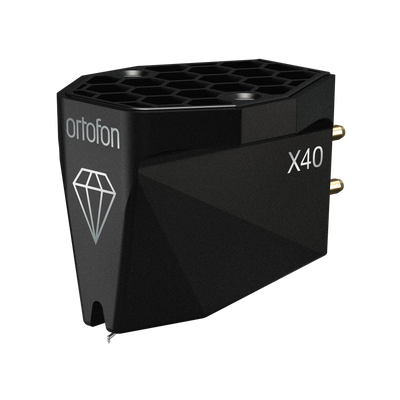

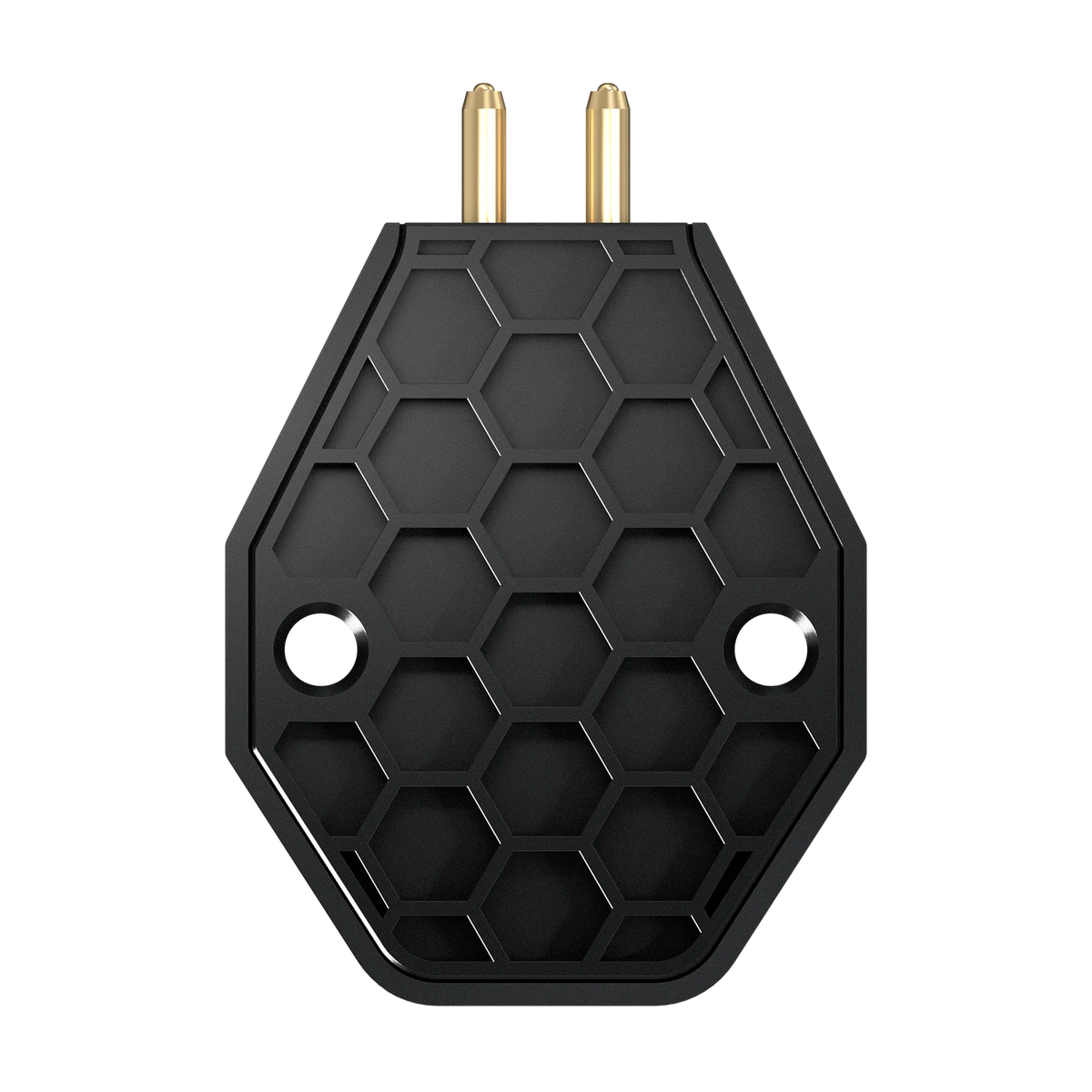

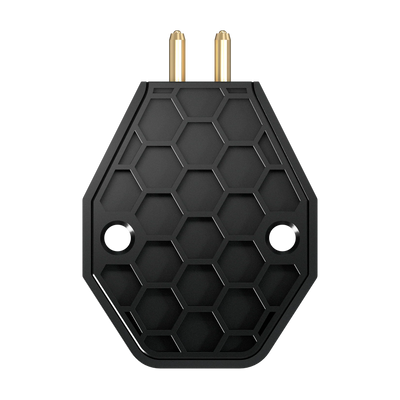

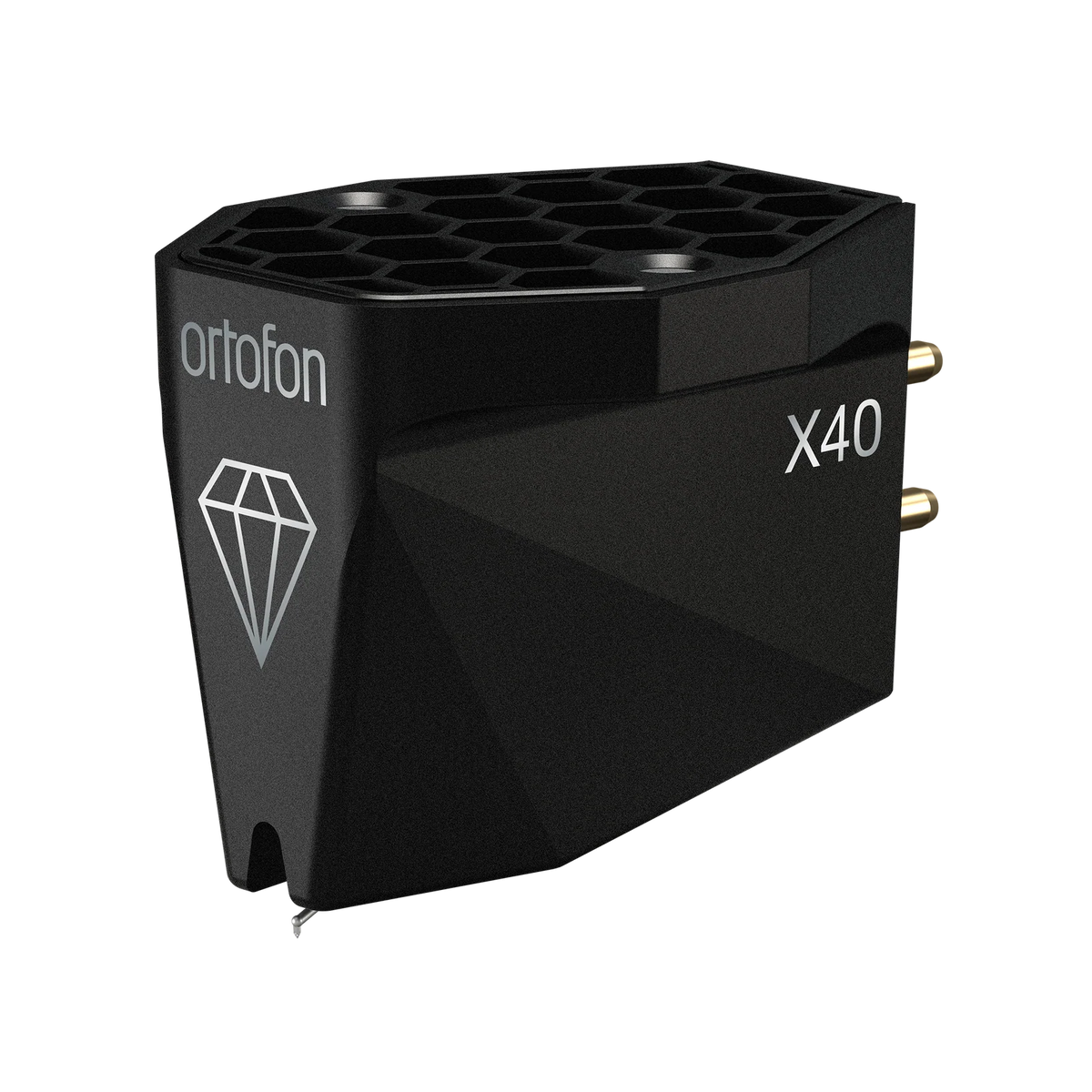

Stainless-steel frame: Honeycomb structure manufactured using Metal Injection Molding (MIM).
-
PVD surface treatment: Applied to the frame for appearance and material integrity.
-

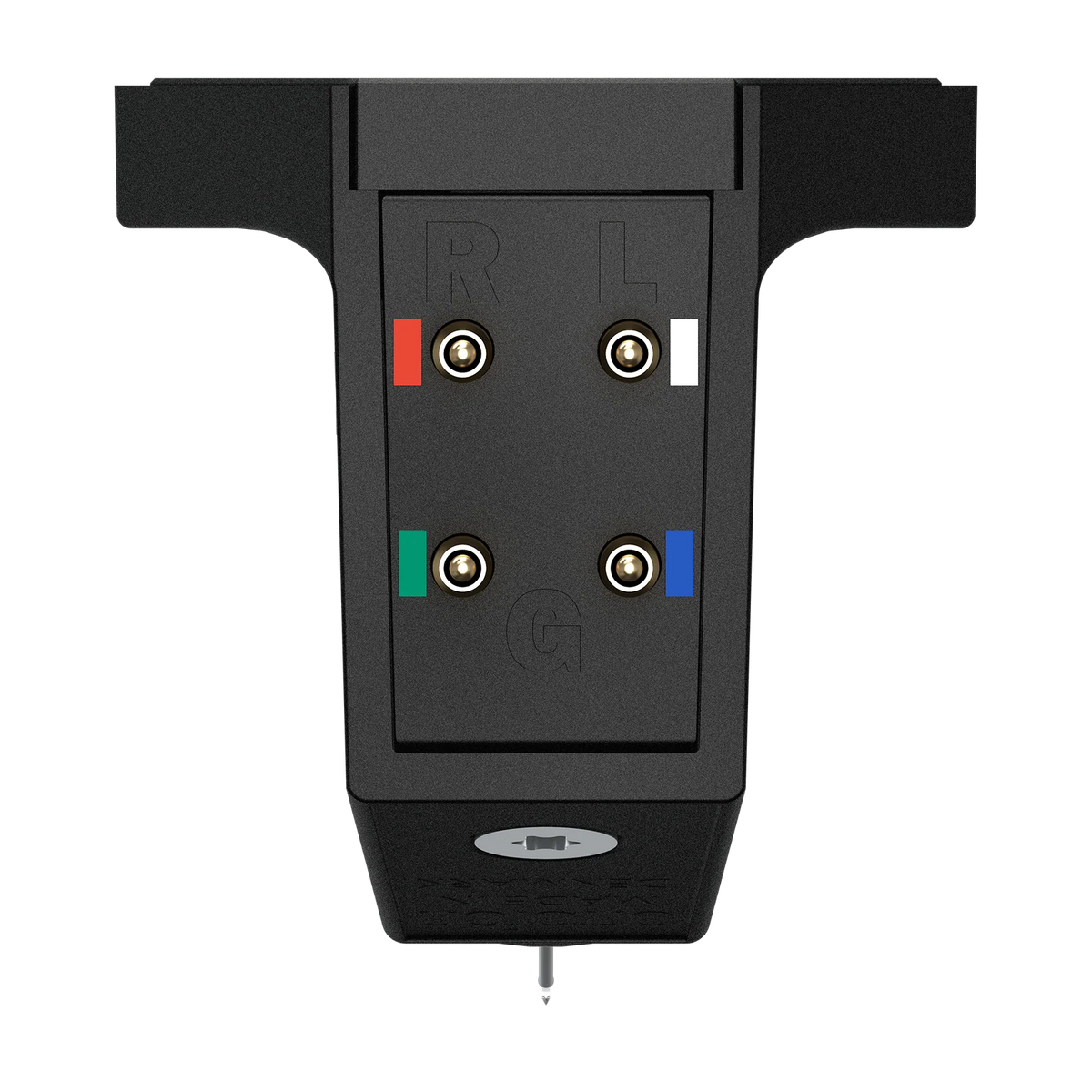

Standard ½-inch mounting: Compatible with suitably matched tonearms.
Complete Technical Specifications
|
Specification |
Ortofon MC X40 |
|---|---|
|
Cartridge type |
Moving coil (MC) |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Nude Shibata |
|
Stylus tip radius |
r/R 6/50 µm |
|
Cantilever material |
Boron |
|
Stylus suspension |
Ortofon exclusive |
|
Coil system |
Quad coils |
|
Coil wire material |
High-purity silver |
|
Magnet system |
One-piece pole cylinder integrated with rear magnet yoke |
|
Cartridge frame |
MIM stainless steel with honeycomb core structure |
|
Surface treatment |
Physical Vapor Deposition (PVD) |
|
Output voltage at 1 kHz, 5 cm/sec |
0.4 mV |
|
Channel balance at 1 kHz |
0.5 dB |
|
Channel separation at 1 kHz |
26 dB |
|
Frequency response, 20 Hz–20 kHz |
±1 dB |
|
Dynamic lateral compliance |
15 µm/mN |
|
Recommended tracking force |
2.0 g |
|
Internal impedance / DC resistance |
6 Ω |
|
Recommended load resistance |
Greater than 50 Ω |
|
Cartridge weight |
8.6 g |
|
Cartridge color |
Black |
What Makes the MC X40 Different?
The MC X40 introduces two important changes over the MC X30: a Nude Shibata stylus in place of the Nude Fine Line design and a boron cantilever in place of aluminum.
The Shibata stylus features a 6/50 µm profile designed to trace fine groove information. Its lightweight, rigid boron cantilever supports responsive movement and accurate tracking. Together, these components distinguish the MC X40 from the other models in the series.
Ortofon MC X Series Comparison
|
Model |
Stylus |
Cantilever |
Output |
|---|---|---|---|
|
MC X10 |
Elliptical |
Aluminum |
0.4 mV |
|
MC X20 |
Nude Elliptical |
Aluminum |
0.4 mV |
|
MC X30 |
Nude Fine Line |
Aluminum |
0.4 mV |
|
MC X40 |
Nude Shibata |
Boron |
0.4 mV |
The four cartridges share the MC X Series’ silver-coil and magnetic-system architecture, with the stylus and cantilever configurations providing the principal model distinctions.
Compatibility & Installation
The MC X40 uses standard ½-inch mounting and requires a compatible tonearm. Its low 0.4 mV output calls for a suitable moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier.
Ortofon specifies a recommended load resistance greater than 50 ohms and a tracking force of 2.0 grams.
Discover Ortofon at The Grid HiFi. Our Houston team can assist with cartridge selection, turntable compatibility, and moving coil phono stage matching.
