Overview

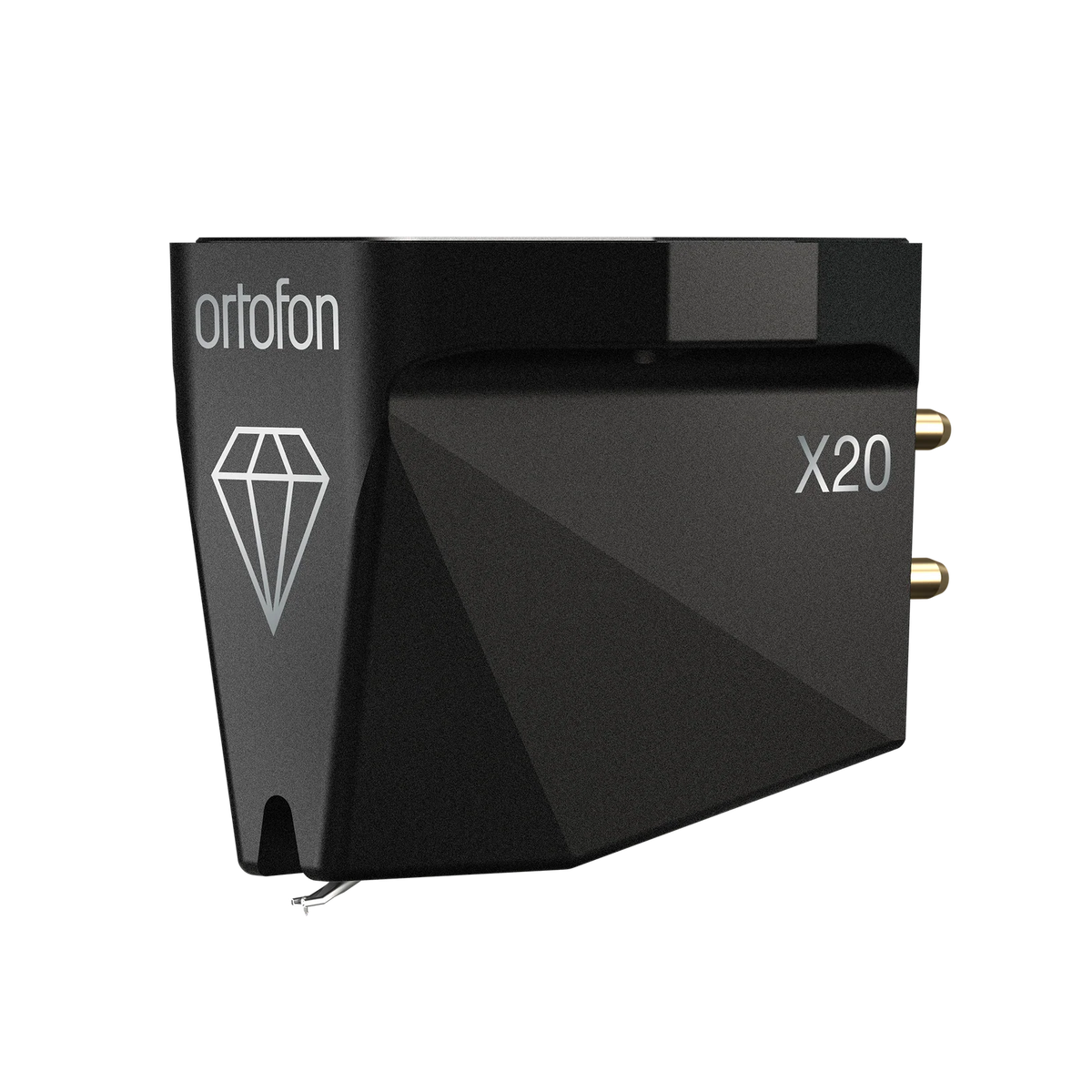

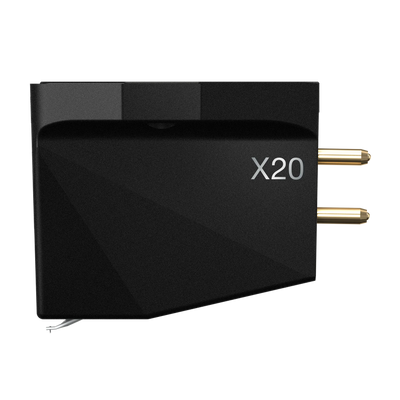

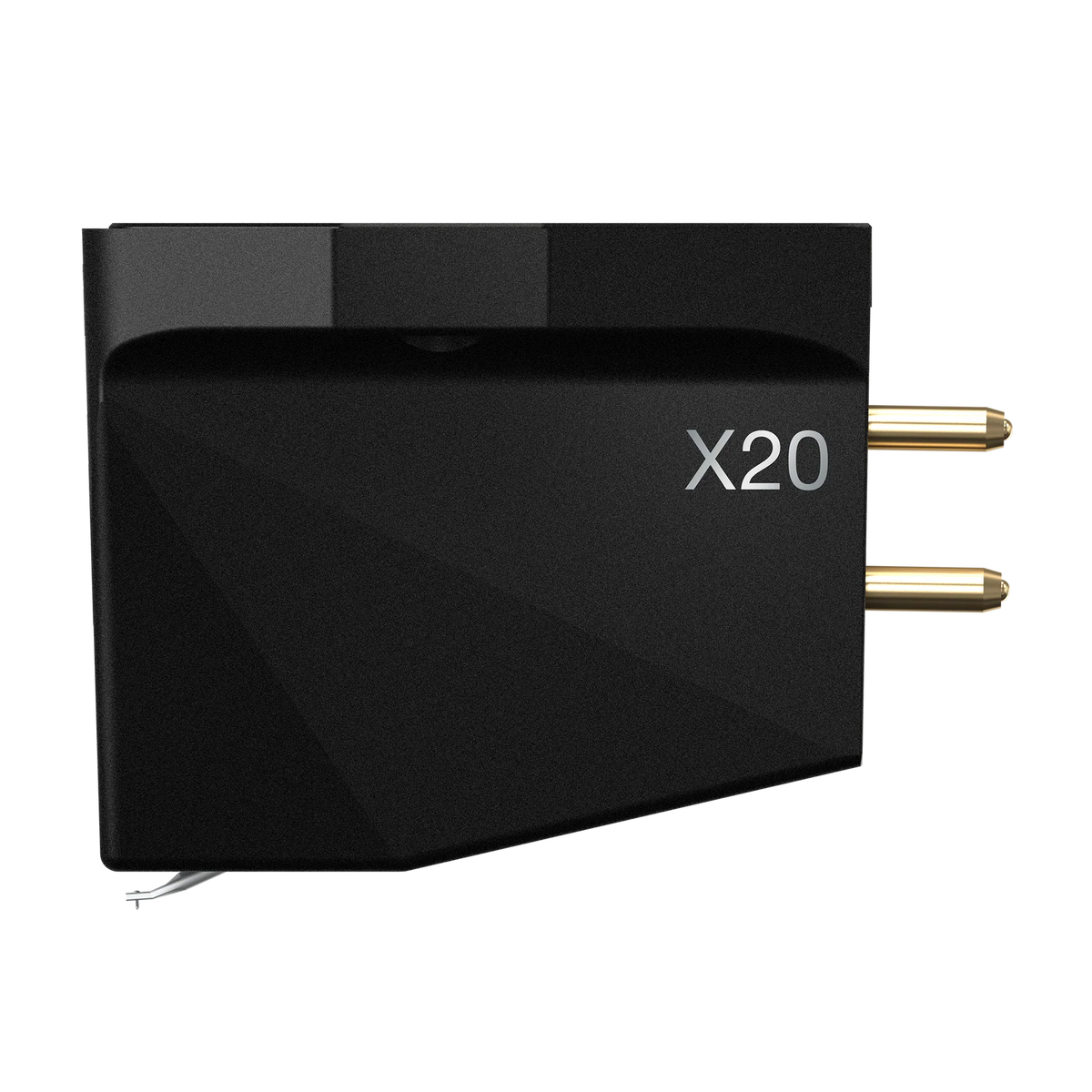

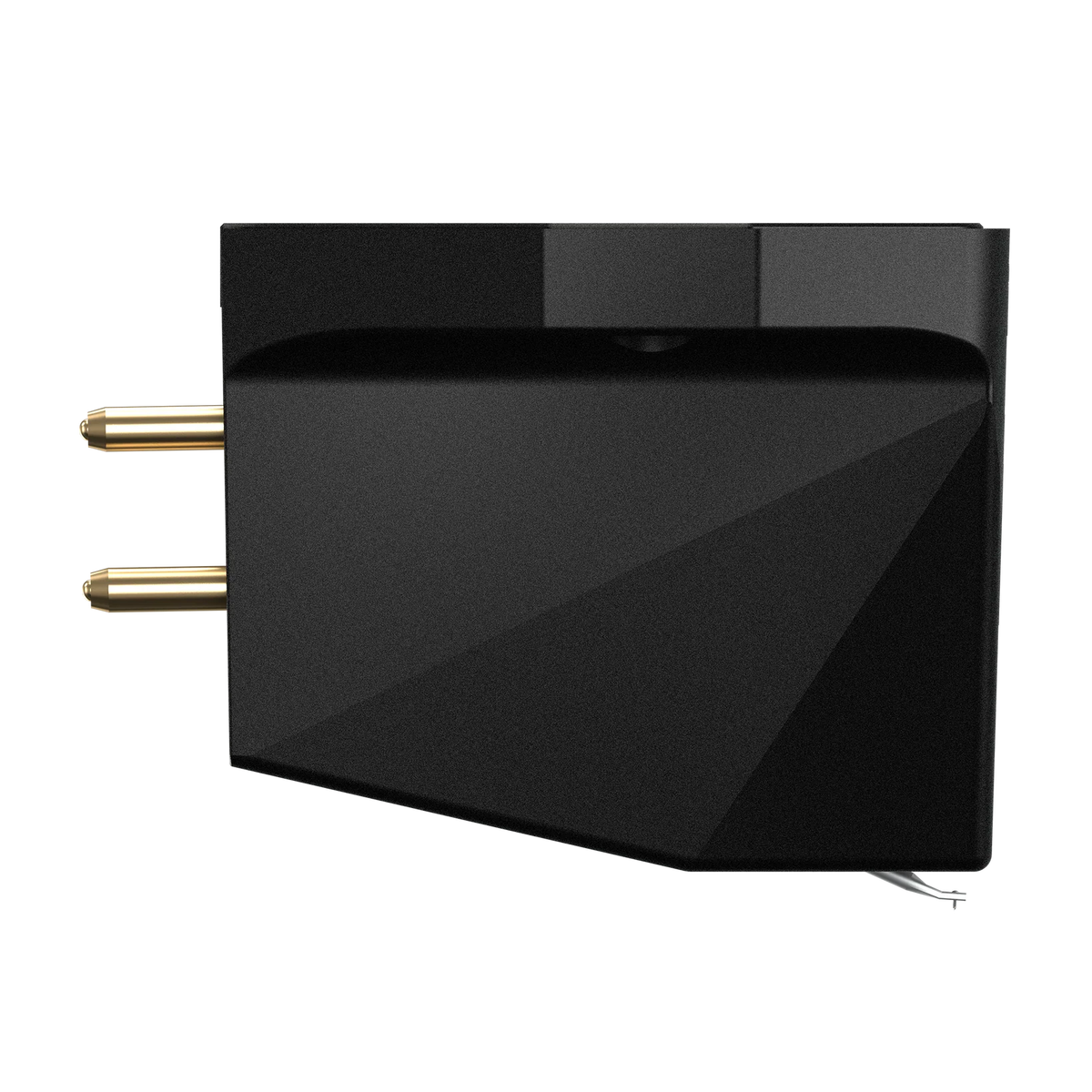

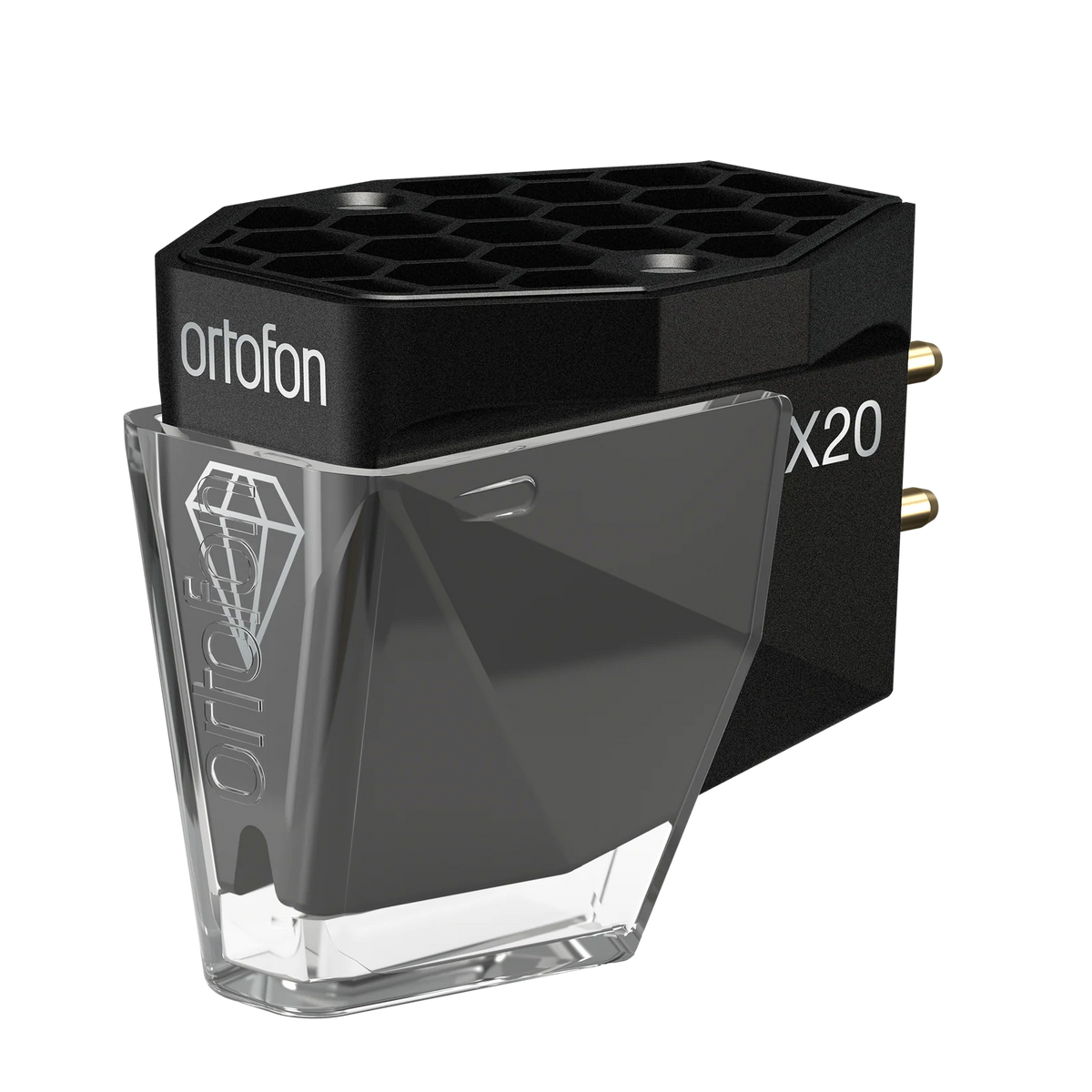

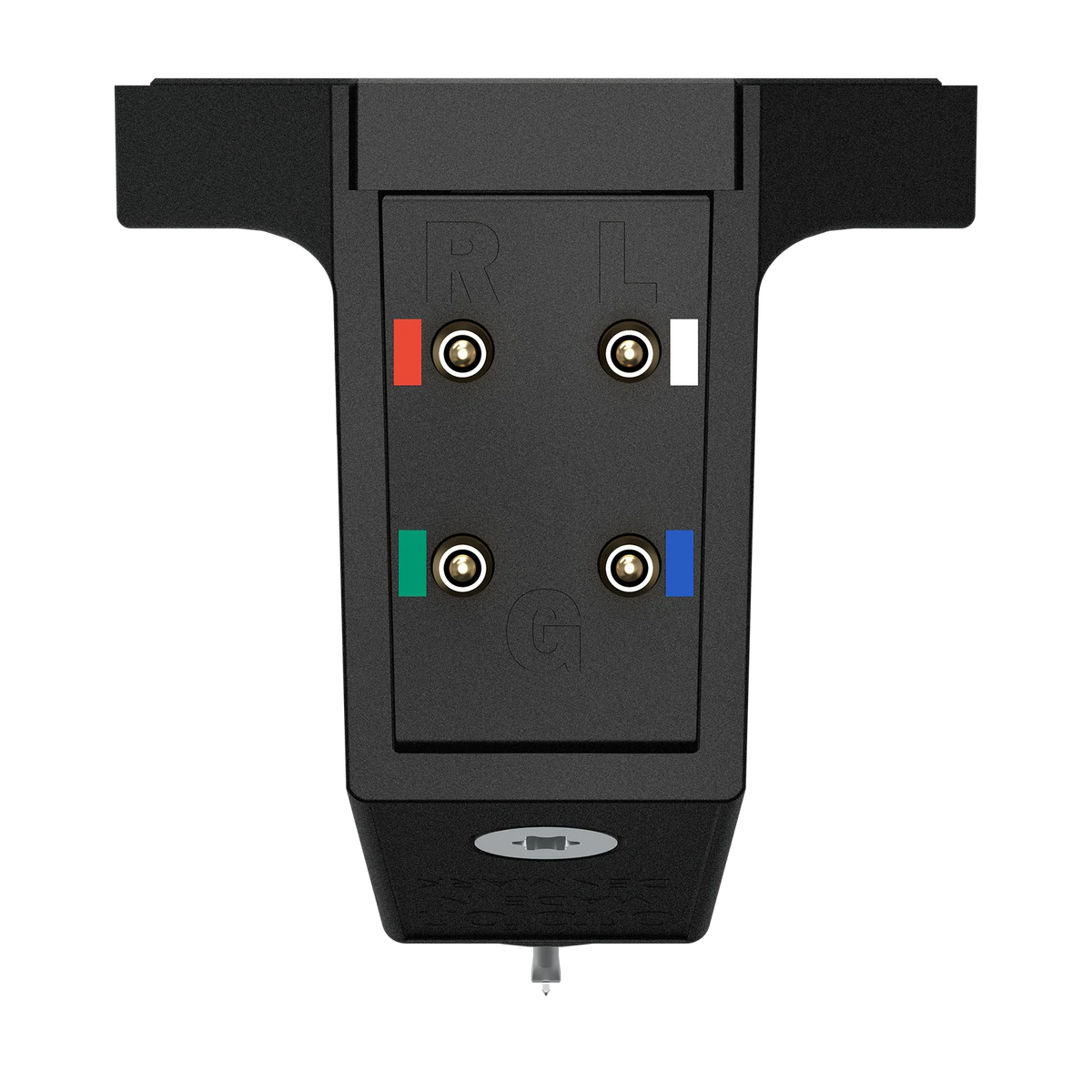

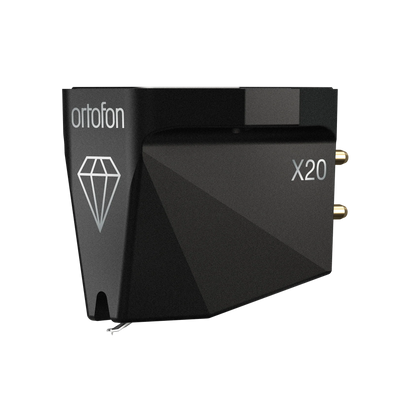

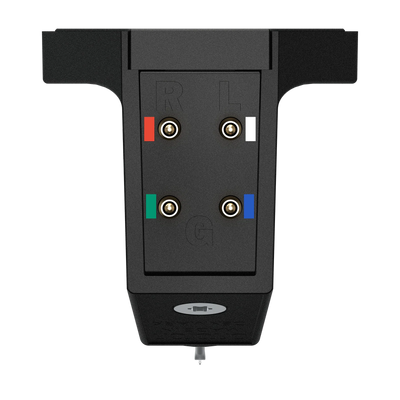

Ortofon MC X20 Moving Coil Phono Cartridge
Nude Elliptical stylus. High-purity silver coils. 0.4 mV output.
The Ortofon MC X20 takes the MC X Series a step further with a Nude Elliptical diamond stylus, designed to improve groove contact, detail retrieval, and tracking precision.
Its aluminum cantilever, high-purity silver quad-coil system, and optimized magnetic circuit work together to preserve delicate musical information. A honeycomb-structured stainless-steel frame provides mechanical stability, while Ortofon's custom-developed rubber suspension controls unwanted vibration.
With a 0.4 mV output, the MC X20 is designed for use with a compatible moving coil phono stage.
OUTPUT
0.4 mV
TRACKING FORCE
2.0 g
WEIGHT
8.6 g
Key Features
-
Nude Elliptical diamond stylus with an 8/18 µm profile.
-
Aluminum cantilever for precise groove tracking.
-
Quad-coil system wound with high-purity silver wire.
-

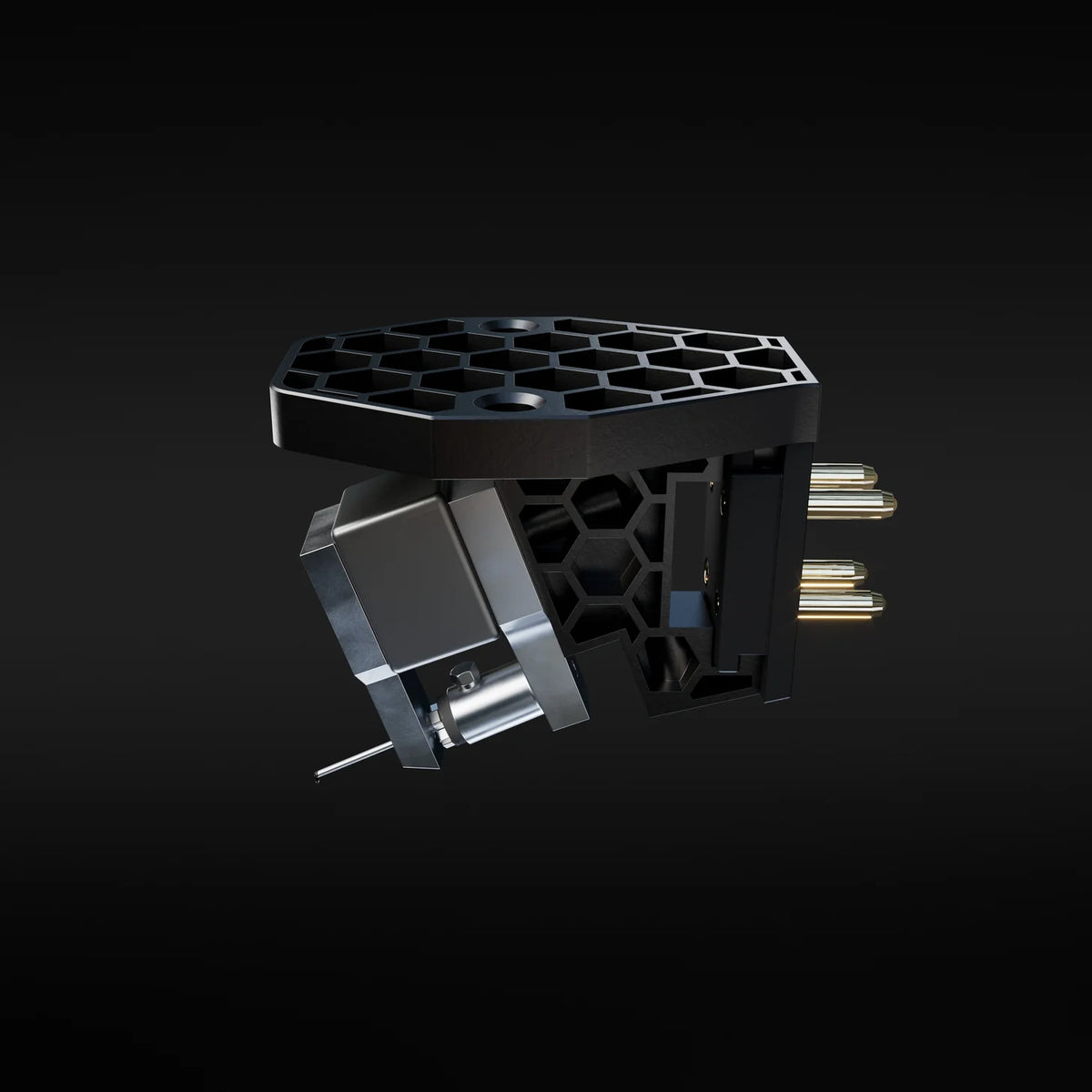

Optimized magnet system with an integrated pole cylinder and rear magnet yoke.
-
Proprietary rubber suspension for controlled stylus movement.
-

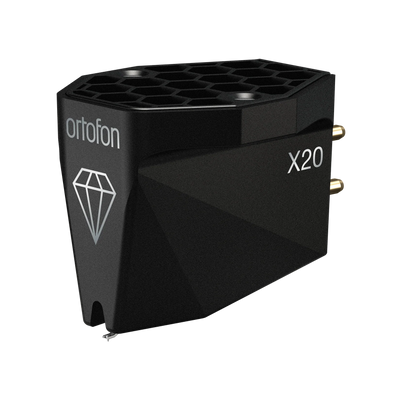

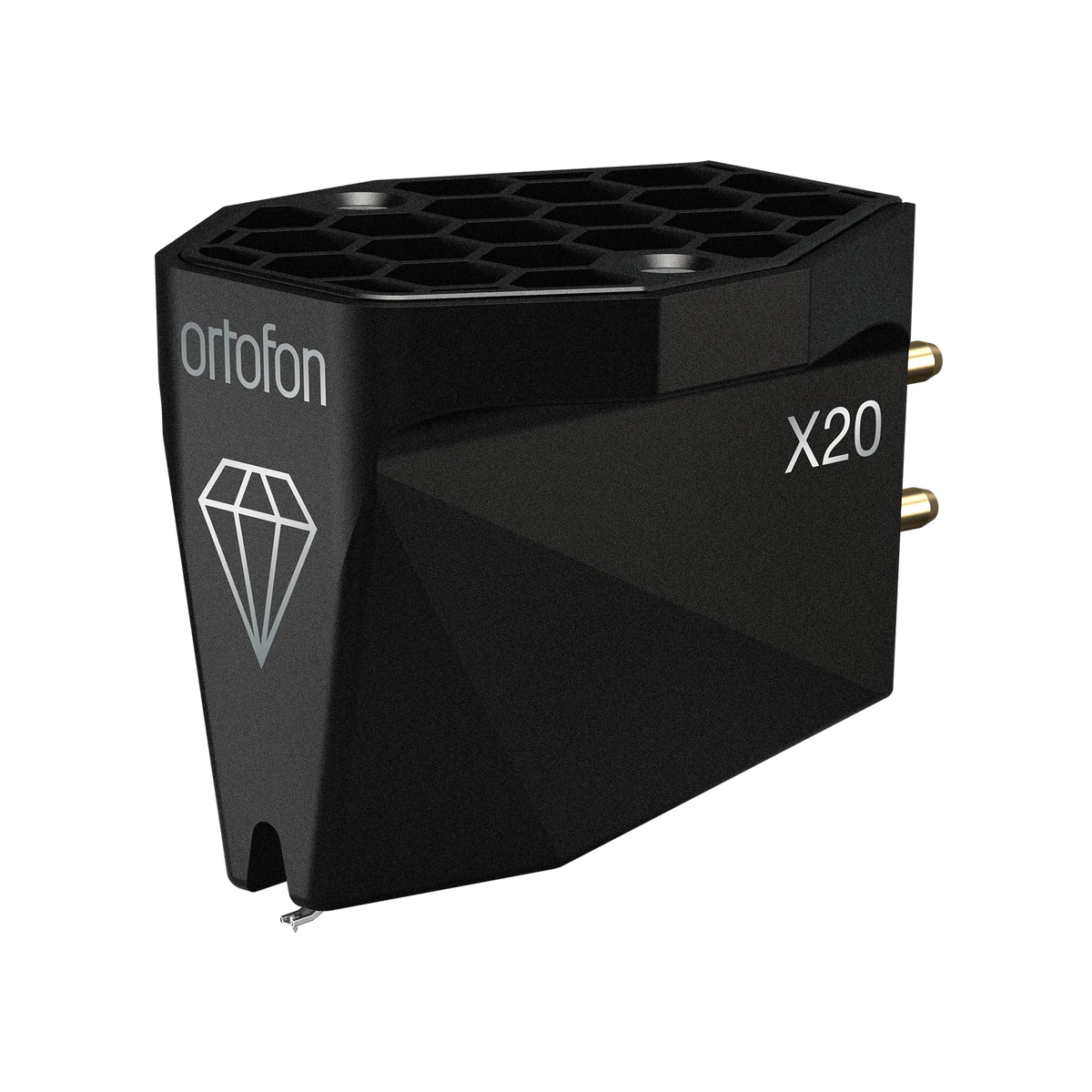

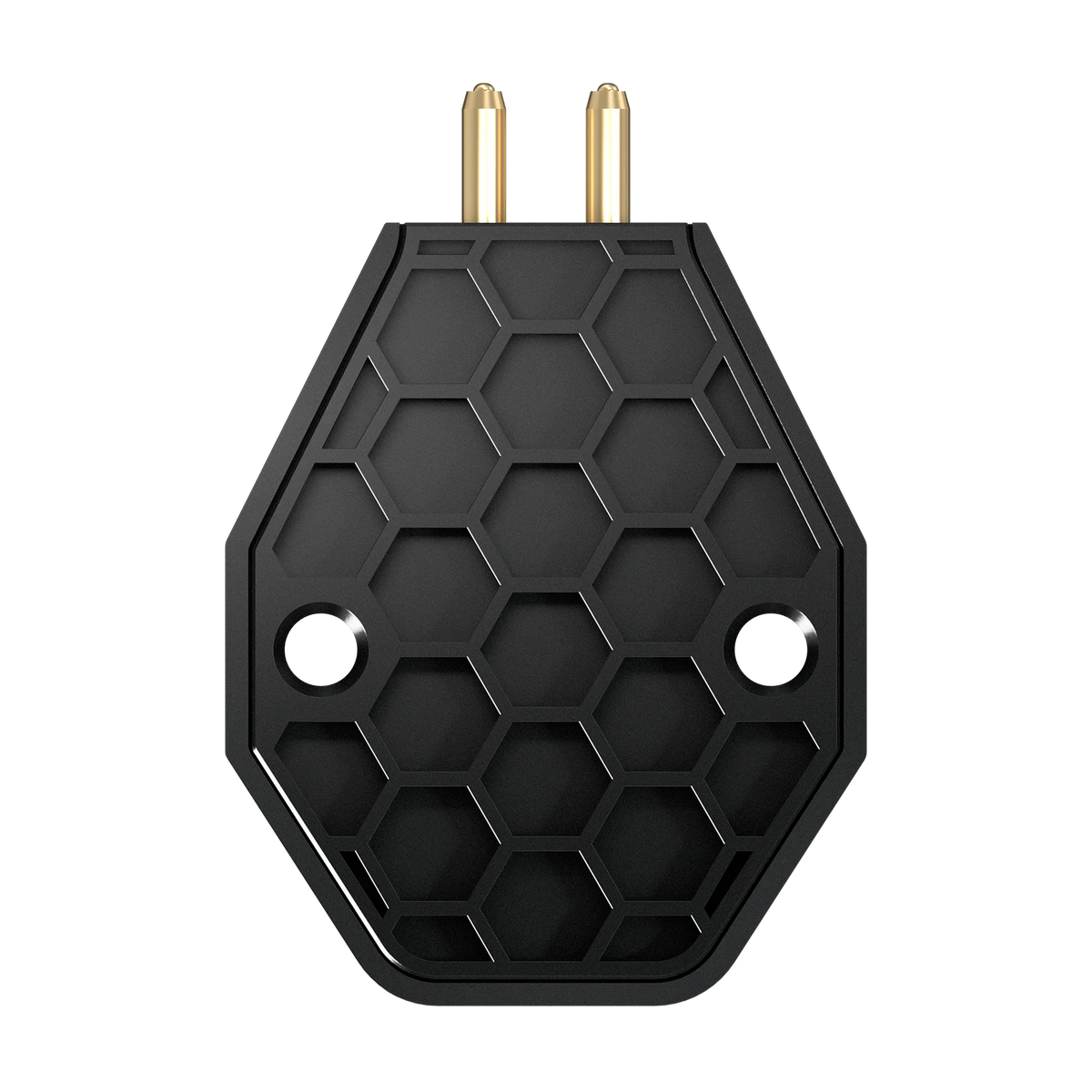

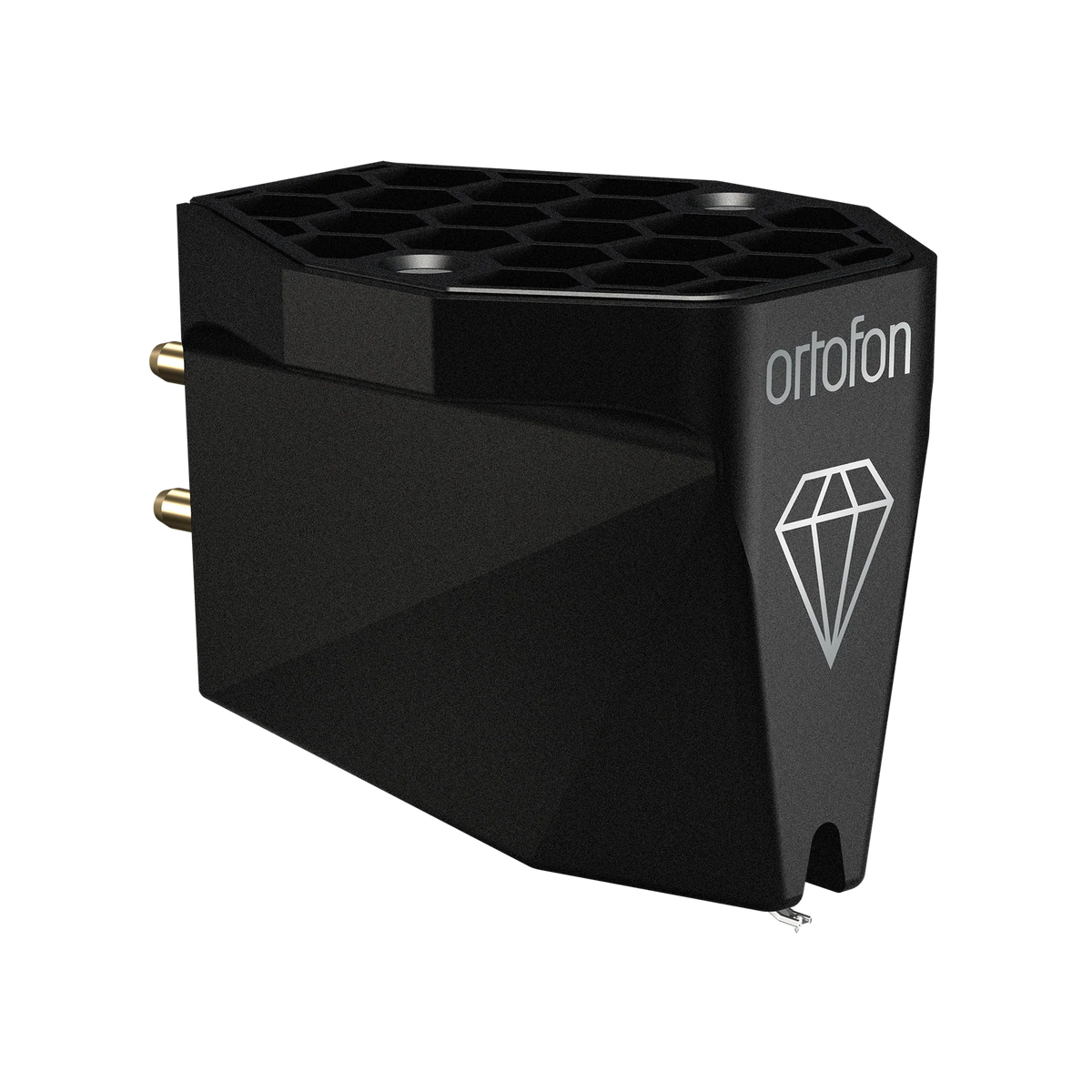

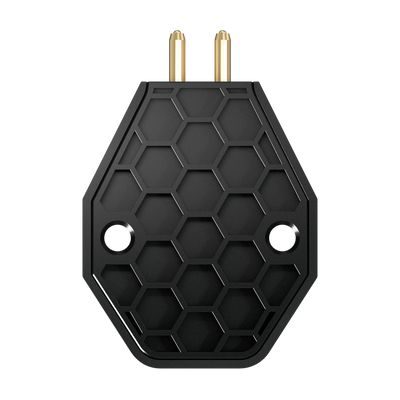

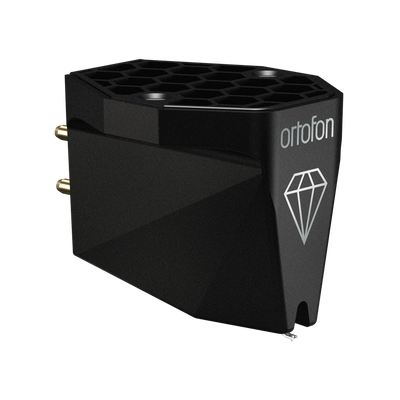

Honeycomb-structured stainless-steel frame manufactured using Metal Injection Molding (MIM).
-
Physical Vapor Deposition (PVD) surface treatment.
-

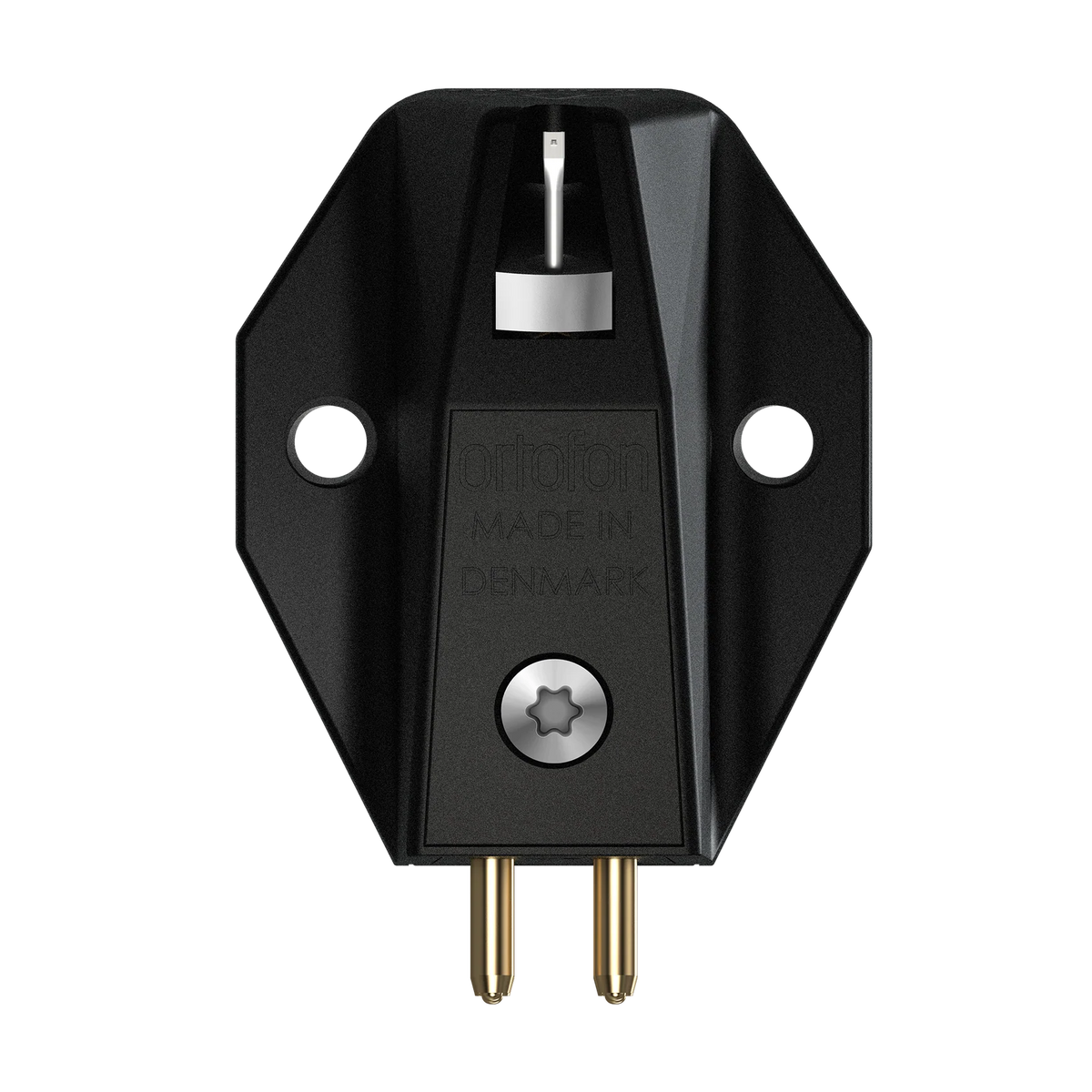

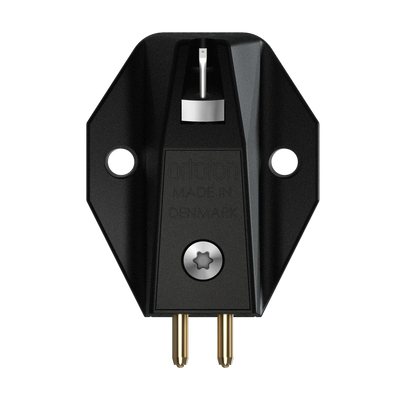

Standard ½-inch mounting for compatible turntables.
Complete Technical Specifications
|
Specification |
Ortofon MC X20 |
|---|---|
|
Cartridge type |
Moving coil (MC) |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Nude Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Cantilever material |
Aluminum |
|
Stylus suspension |
Ortofon proprietary suspension |
|
Coil system |
Quad coils |
|
Coil wire material |
High-purity silver |
|
Magnet system |
Optimized magnetic circuit with integrated pole cylinder and rear magnet yoke |
|
Cartridge frame |
Honeycomb-structured stainless steel |
|
Frame manufacturing |
Metal Injection Molding (MIM) |
|
Surface treatment |
Physical Vapor Deposition (PVD) |
|
Output voltage at 1 kHz, 5 cm/sec |
0.4 mV |
|
Channel balance at 1 kHz |
0.5 dB |
|
Channel separation at 1 kHz |
25 dB |
|
Frequency response, 20 Hz–20 kHz |
±1 dB |
|
Dynamic lateral compliance |
15 µm/mN |
|
Recommended tracking force |
2.0 g |
|
Internal impedance / DC resistance |
6 Ω |
|
Recommended load resistance |
Greater than 50 Ω |
|
Cartridge weight |
8.6 g |
|
Cartridge color |
Black |
Ortofon MC X Series: Which Model Is Different?
The MC X10, X20, X30, and X40 share a common engineering platform, including high-purity silver coils, a redesigned magnetic system, and stainless-steel frame construction. Their principal differences are the stylus and cantilever designs.
|
Model |
Stylus |
Cantilever |
Output |
|---|---|---|---|
|
MC X10 |
Elliptical |
Aluminum |
0.4 mV |
|
MC X20 |
Nude Elliptical |
Aluminum |
0.4 mV |
|
MC X30 |
Nude Fine Line |
Aluminum |
0.4 mV |
|
MC X40 |
Nude Shibata |
Boron |
0.4 mV |
The MC X20's defining upgrade over the X10 is its Nude Elliptical stylus. Unlike a bonded diamond, a nude diamond is mounted directly to the cantilever, reducing the mass of the stylus assembly and supporting more responsive groove tracking.
Compatibility & Installation
The MC X20 uses standard ½-inch mounting and requires a compatible tonearm. Its low 0.4 mV output requires a suitable moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier.
Ortofon specifies a recommended load resistance greater than 50 ohms.
Explore Ortofon at The Grid HiFi. Our Houston team can help with cartridge selection, turntable setup, and moving coil phono stage matching.
