Overview

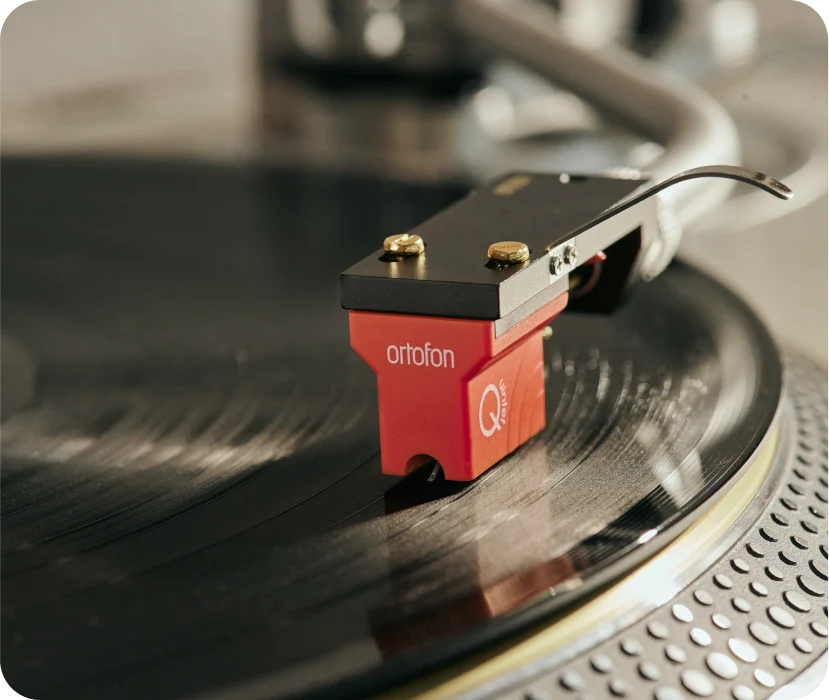

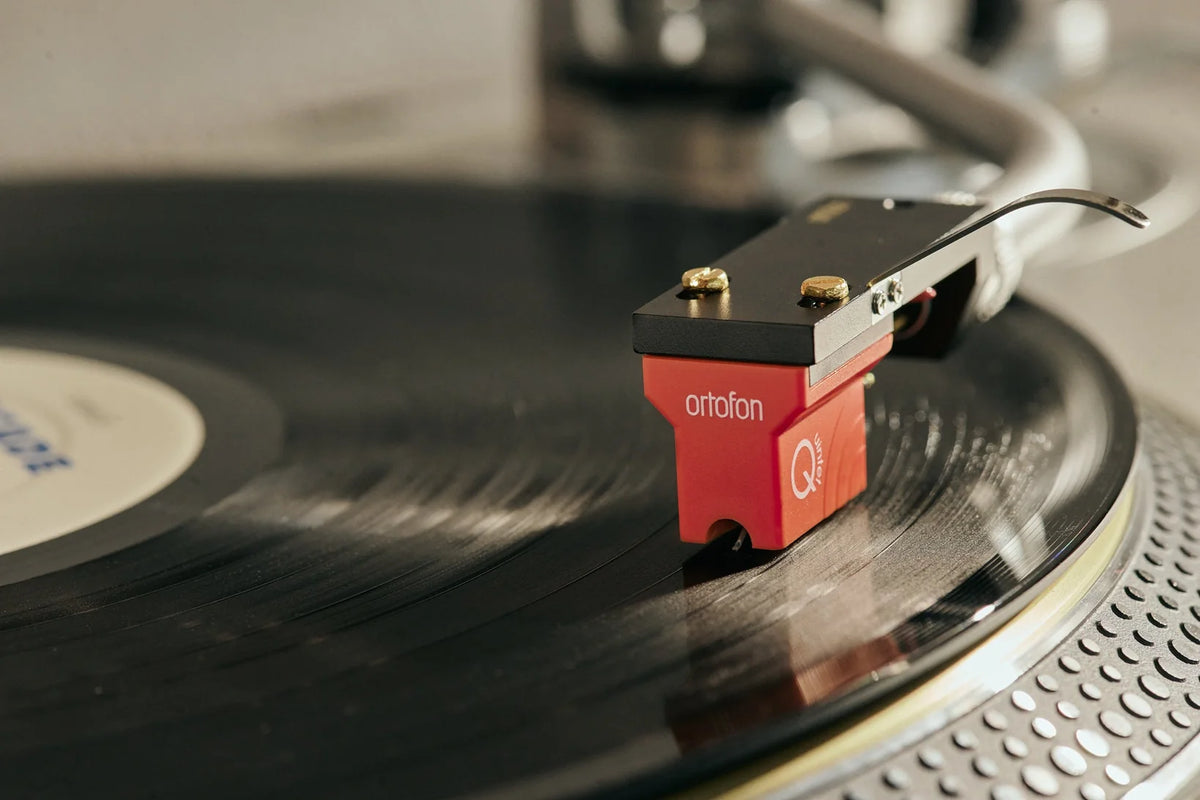

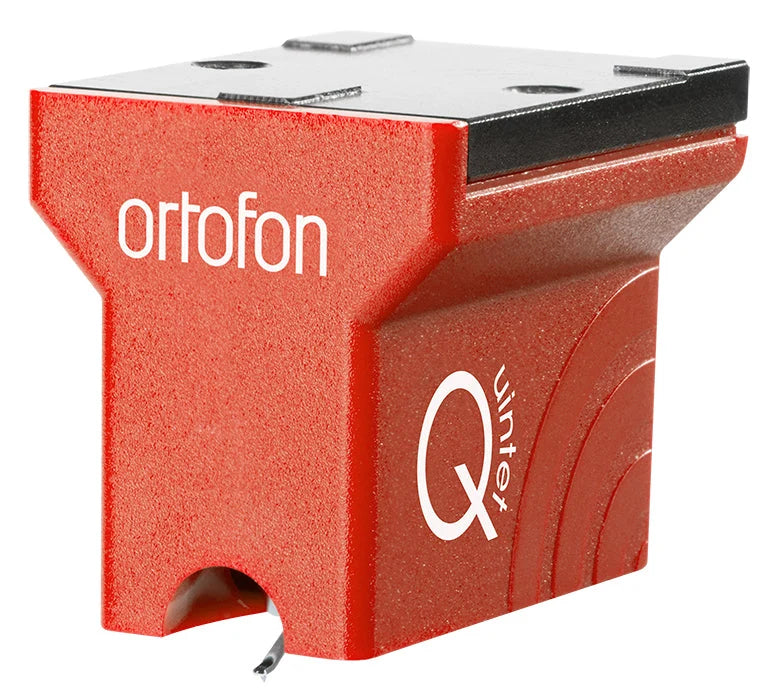

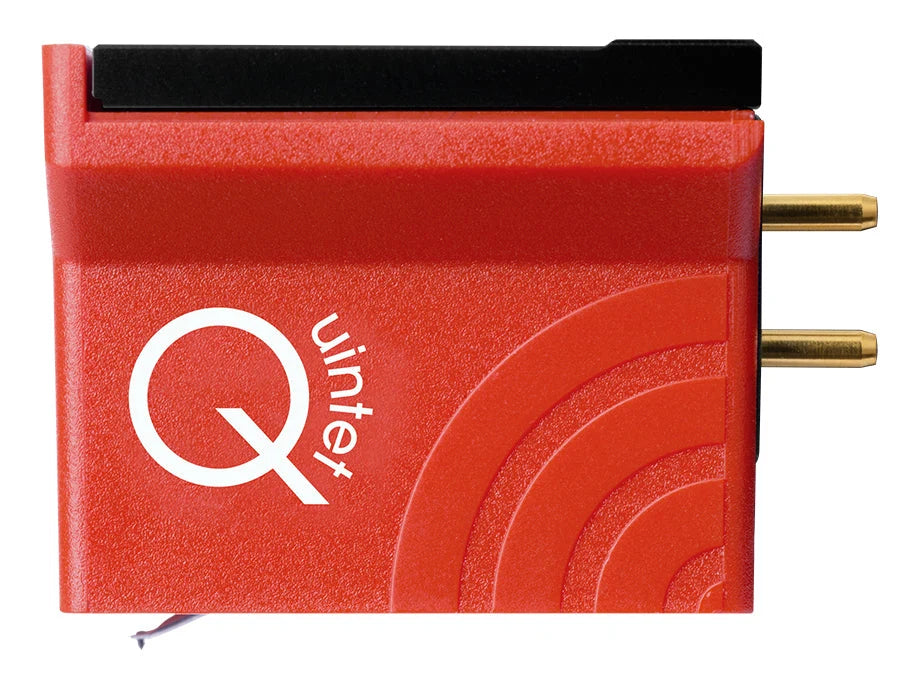

Ortofon MC Quintet Red Moving Coil Phono Cartridge
Elliptical diamond stylus. 0.5 mV output. An introduction to moving coil sound.
The Ortofon MC Quintet Red brings moving coil performance to vinyl enthusiasts looking to take the next step in their analog system. Its Elliptical diamond stylus is designed for accurate groove tracking, delivering an open, dynamic presentation with a touch of warmth.
The Quintet Red features a neodymium magnet system, copper coil wire, and a durable, scratch-resistant thermoplastic body. Its low internal impedance and threaded mounting holes make it a practical choice for a wide range of compatible turntables and moving coil phono stages.
Key Features
-
Elliptical diamond stylus: 8/18 µm profile for accurate groove tracking.
-
Moving coil design: 0.5 mV output for compatible MC phono stages.
-
Neodymium magnet system: Engineered for efficient cartridge output.
-
Copper coil wire: Used in the Quintet Red's moving coil generator.
-
Low internal impedance: 7 ohms, with a recommended load greater than 20 ohms.
-
Durable cartridge body: Lightweight, impact-resistant thermoplastic construction.
-
Easy installation: Threaded mounting holes with supplied 5 mm and 7 mm screws.
Complete Technical Specifications
|
Specification |
Ortofon MC Quintet Red |
|---|---|
|
Cartridge type |
Moving coil (MC), stereo |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Output voltage at 1 kHz, 5 cm/sec |
0.5 mV |
|
Channel balance at 1 kHz |
Less than 1.5 dB |
|
Channel separation at 1 kHz |
Greater than 21 dB |
|
Channel separation at 15 kHz |
Greater than 14 dB |
|
Frequency range at −3 dB |
20 Hz–25 kHz |
|
Frequency response, 20 Hz–20 kHz |
±2.5 dB |
|
Tracking ability at 315 Hz |
65 µm |
|
Dynamic lateral compliance |
15 µm/mN |
|
Tracking force range |
2.1–2.5 g (21–25 mN) |
|
Recommended tracking force |
2.3 g (23 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
7 Ω |
|
Recommended load impedance |
Greater than 20 Ω |
|
Coil wire material |
Copper |
|
Magnet system |
Neodymium |
|
Cartridge body material |
PC thermoplastic with aluminum mounting frame |
|
Mounting hardware |
Supplied 5 mm and 7 mm screws |
|
Cartridge color |
Red |
|
Cartridge weight |
9 g |
Specifications sourced from Ortofon's official product page and Quintet Series user guide. The guide provides additional details, including coil material, frequency range, and channel separation at 15 kHz.
Moving Coil Performance Made Accessible
The MC Quintet Red is designed as an introduction to Ortofon's moving coil cartridge range. Its Elliptical stylus provides reliable groove tracking, while the neodymium magnet system and copper coils generate a 0.5 mV signal.

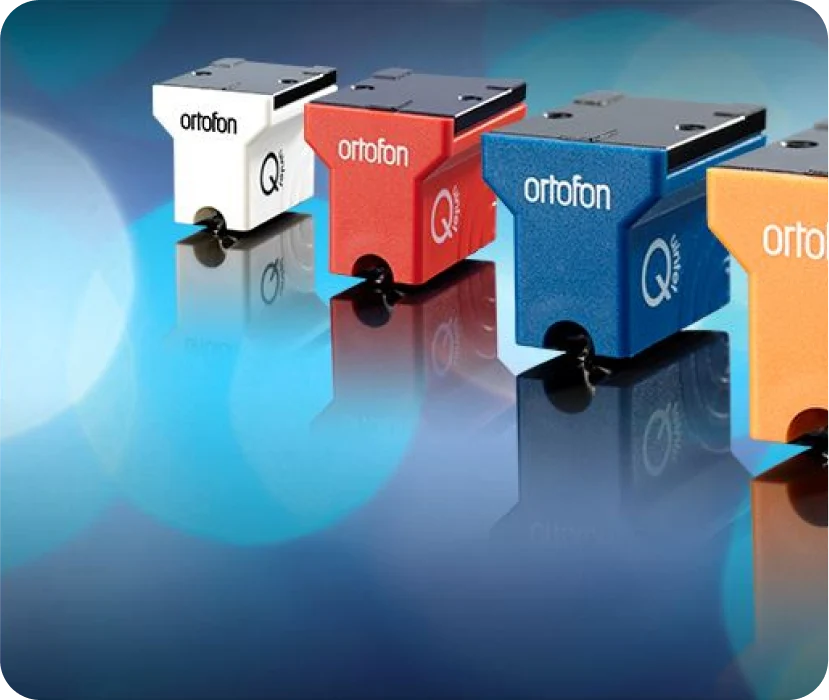

For listeners considering the next model in the series, the MC Quintet Blue introduces a Nude Elliptical stylus and pure silver coil wire. The Red uses a conventional Elliptical stylus and copper coils.
Compatibility & Installation
The MC Quintet Red uses standard ½-inch mounting and features threaded holes for secure installation. Ortofon includes 5 mm and 7 mm mounting screws to accommodate different headshell thicknesses.
Its 0.5 mV output requires a compatible moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier. Ortofon recommends a load impedance greater than 20 ohms and a tracking force of 2.3 grams.
Discover Ortofon at The Grid HiFi. Visit our Houston showroom for assistance with cartridge selection, turntable compatibility, and phono stage matching.
