Overview

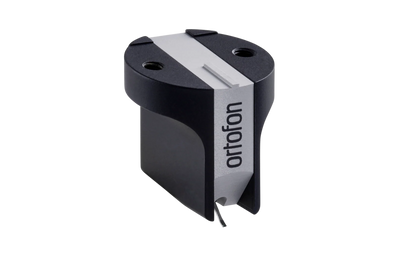

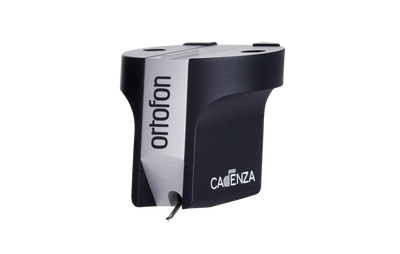

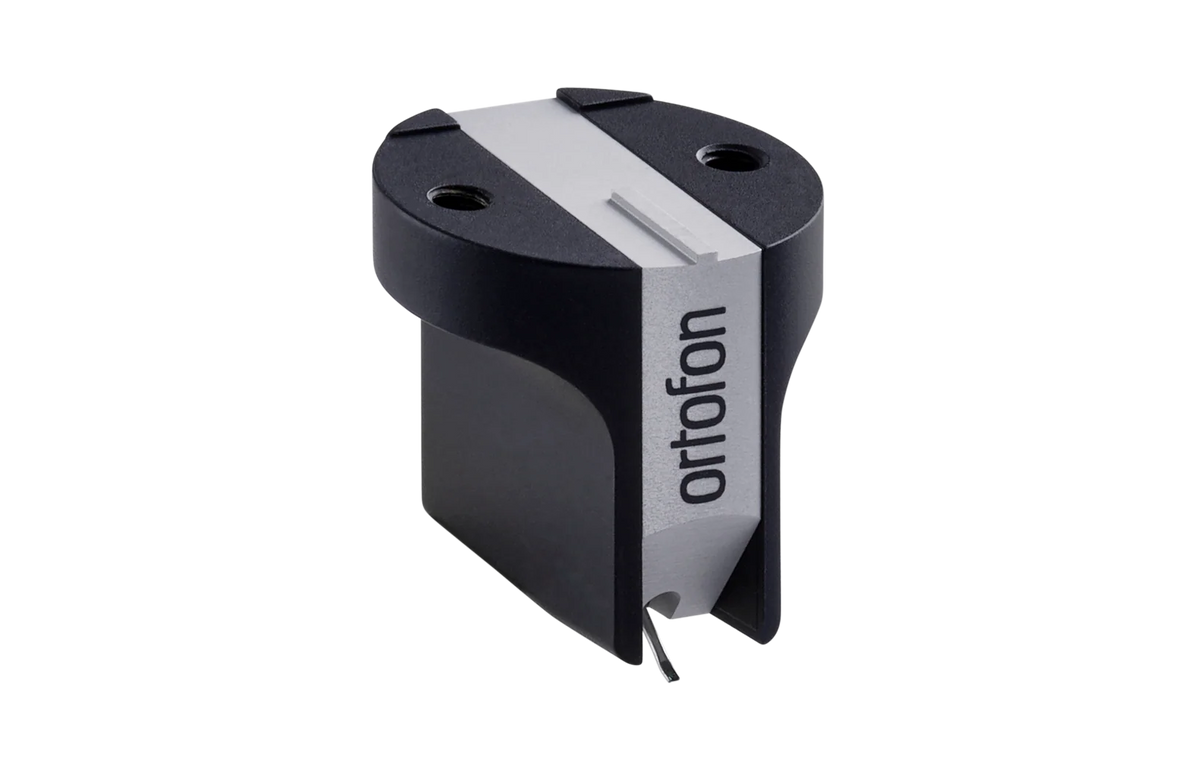

Ortofon MC Cadenza Mono Moving Coil Phono Cartridge
True mono playback. Nude Fine Line stylus. 6NX pure silver coils.
The Ortofon MC Cadenza Mono is a dedicated moving coil cartridge engineered for mono microgroove vinyl records. Sharing its underlying construction with the Cadenza Red, it features adjustments specifically developed for mono playback, delivering a cohesive, natural presentation with precise groove tracking.
Its Nude Fine Line diamond stylus features an 8/40 µm profile mounted on a cylindrical aluminum cantilever. The coils use 6NX (99.9999%) pure silver wire, while an improved winding process supports consistent signal reproduction.
For easy integration into a stereo system, the output pins are internally connected to deliver the same mono signal through both channel pairs.
OUTPUT
0.45 mV
TRACKING FORCE
2.5 g
WEIGHT
10.7 g
Key Features
-
True mono cartridge: Designed specifically for mono microgroove vinyl records.
-
Nude Fine Line stylus: 8/40 µm diamond profile for precise groove tracing.
-
Aluminum cantilever: Cylindrical construction for controlled stylus movement.
-
6NX pure silver coils: 99.9999% pure silver wire.
-
Internally connected output pins: Identical mono signal available through both channel pairs.
-
70 µm tracking ability: Measured at 315 Hz.
-
Low internal impedance: 5 ohms, with a recommended load of 50–500 ohms.
-
Rigid construction: Aluminum and stainless-steel cartridge body.
Complete Technical Specifications
|
Specification |
Ortofon MC Cadenza Mono |
|---|---|
|
Cartridge type |
Moving coil (MC), true mono |
|
Intended record format |
Mono microgroove vinyl |
|
Mounting type |
Standard ½-inch |
|
Output configuration |
Internally connected pins; same mono signal through both channel pairs |
|
Output voltage at 1 kHz, 5 cm/sec |
450 µV / 0.45 mV |
|
Channel separation |
Pure mono; not applicable |
|
Frequency response, 20 Hz–20 kHz |
+3 / −1 dB |
|
Tracking ability at 315 Hz |
70 µm |
|
Dynamic lateral compliance |
12 µm/mN |
|
Stylus type |
Nude Fine Line |
|
Stylus tip radius |
r/R 8/40 µm |
|
Cantilever material |
Cylindrical aluminum |
|
Coil wire material |
6NX pure silver (99.9999%) |
|
Tracking force range |
2.2–2.7 g |
|
Recommended tracking force |
2.5 g |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
5 Ω |
|
Recommended load impedance |
50–500 Ω |
|
Cartridge body |
Aluminum and stainless steel |
|
Cartridge color |
Natural / Black |
|
Cartridge weight |
10.7 g |
Designed for Mono Vinyl Collections
The MC Cadenza Mono is intended for both vintage and modern mono microgroove LPs. Its dedicated mono generator and internally connected output pins allow listeners to enjoy mono recordings through a conventional stereo playback system without needing a separate mono-only signal path.
The Nude Fine Line stylus is designed for microgroove vinyl records. It is not a specialized stylus for wider-groove 78 RPM shellac records.
Compatibility & Installation
The MC Cadenza Mono uses standard ½-inch mounting and requires a compatible tonearm. Its 0.45 mV output calls for a suitable moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier.
Ortofon specifies a recommended tracking force of 2.5 grams and a load impedance of 50–500 ohms.
Discover Ortofon at The Grid HiFi. Our Houston team can assist with mono cartridge selection, turntable compatibility, and moving coil phono stage matching.
The Complete MC Cadenza Series
|
Model |
Stylus |
Cantilever |
Output |
|---|---|---|---|
|
MC Cadenza Mono |
Nude Fine Line |
Aluminum |
0.45 mV |
|
MC Cadenza Red |
Nude Fine Line |
Aluminum |
0.45 mV |
|
MC Cadenza Blue |
Nude FG 70 |
Ruby |
0.50 mV |
|
MC Cadenza Bronze |
Nude Replicant 100 |
Aluminum |
0.40 mV |
|
MC Cadenza Black |
Nude Shibata |
Boron |
0.33 mV |
Configurations from Ortofon's Cadenza technical documentation. The Mono is a dedicated mono cartridge; the other four are stereo models.
