Overview

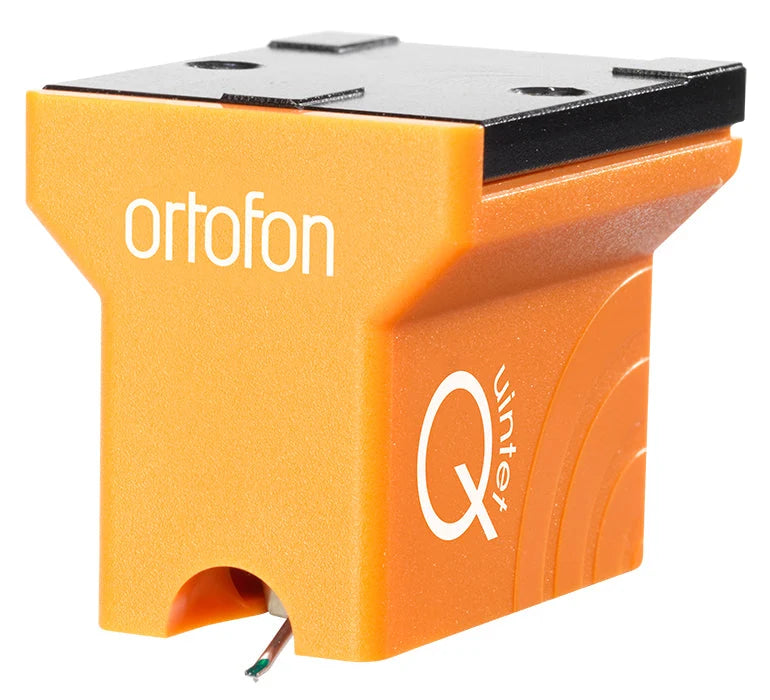

Ortofon MC Quintet Bronze Moving Coil Phono Cartridge
Nude Fine Line stylus. 0.3 mV output. Precision tracking with balanced musical reproduction.
The Ortofon MC Quintet Bronze brings a more sophisticated stylus design to the Quintet Series. Its Nude Fine Line diamond features an 8/40 µm profile, allowing it to trace fine groove information with precision. The extended contact profile is designed to reduce distortion and record wear while retrieving subtle musical details.
A neodymium magnet system, high-purity copper coils, and a rigid cartridge body provide the foundation for accurate moving coil playback. With an 80 µm tracking ability and a frequency response of ±1.5 dB from 20 Hz to 20 kHz, the Quintet Bronze is engineered for detailed, balanced reproduction across a wide range of music.
OUTPUT
0.3 mV
TRACKING FORCE
2.3 g
TRACKING ABILITY
80 µm
Key Features
-
Nude Fine Line stylus: 8/40 µm diamond profile for precise groove tracing.
-
High-purity copper coils: 99.99% pure copper wire.
-
Neodymium magnet system: Designed for efficient moving coil performance.
-
Improved tracking: 80 µm tracking ability at the recommended tracking force.
-
Low internal impedance: 5 ohms, with a recommended load greater than 20 ohms.
-
Durable construction: Impact-resistant thermoplastic body with an aluminum mounting frame.
-
Straightforward installation: Threaded mounting holes with supplied 5 mm and 7 mm screws.
Complete Technical Specifications
|
Specification |
Ortofon MC Quintet Bronze |
|---|---|
|
Cartridge type |
Moving coil (MC), stereo |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Nude Fine Line |
|
Stylus tip radius |
r/R 8/40 µm |
|
Output voltage at 1 kHz, 5 cm/sec |
0.3 mV |
|
Channel balance at 1 kHz |
Less than 1.2 dB |
|
Channel separation at 1 kHz |
Greater than 23 dB |
|
Channel separation at 15 kHz |
Greater than 15 dB |
|
Frequency range at −3 dB |
20 Hz–25 kHz |
|
Frequency response, 20 Hz–20 kHz |
±1.5 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
15 µm/mN |
|
Tracking force range |
2.1–2.5 g (21–25 mN) |
|
Recommended tracking force |
2.3 g (23 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
5 Ω |
|
Recommended load impedance |
Greater than 20 Ω |
|
Coil wire material |
Pure 4-nines copper (99.99%) |
|
Magnet system |
Neodymium |
|
Cartridge body |
Thermoplastic with aluminum mounting frame |
|
Included mounting screws |
5 mm and 7 mm |
|
Cartridge color |
Bronze |
|
Cartridge weight |
9 g |
What Makes the Quintet Bronze Different?
The MC Quintet Bronze replaces the Blue's Nude Elliptical stylus with a Nude Fine Line diamond. Its 8/40 µm profile provides a longer groove-contact surface than the Blue's 8/18 µm profile.
The Bronze also uses a lower-output, lower-impedance generator and achieves higher published tracking ability and channel separation.
|
Specification |
Quintet Blue |
Quintet Bronze |
|---|---|---|
|
Stylus |
Nude Elliptical |
Nude Fine Line |
|
Stylus profile |
8/18 µm |
8/40 µm |
|
Output voltage |
0.5 mV |
0.3 mV |
|
Tracking ability |
70 µm |
80 µm |
|
Channel separation at 1 kHz |
Greater than 21 dB |
Greater than 23 dB |
|
Internal impedance |
7 Ω |
5 Ω |
|
Coil wire |
Pure silver |
Pure copper |
|
Recommended tracking force |
2.3 g |
2.3 g |
Compatibility & Installation
The MC Quintet Bronze uses standard ½-inch mounting with threaded holes for secure installation. Ortofon includes 5 mm and 7 mm mounting screws to accommodate different headshell thicknesses.
Its low 0.3 mV output requires a compatible moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier. Ortofon recommends a load impedance greater than 20 ohms and a tracking force of 2.3 grams.
Discover Ortofon at The Grid HiFi. Our Houston team can assist with cartridge selection, turntable compatibility, and moving coil phono stage matching.
