Overview

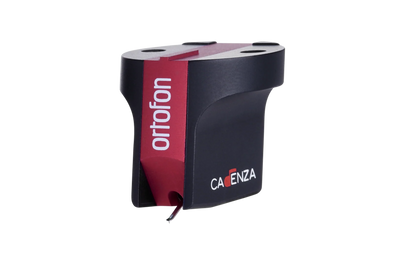

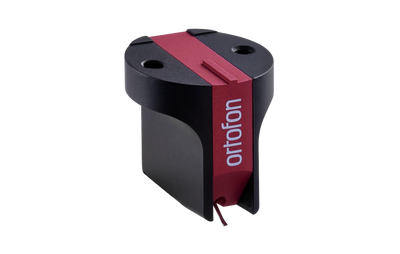

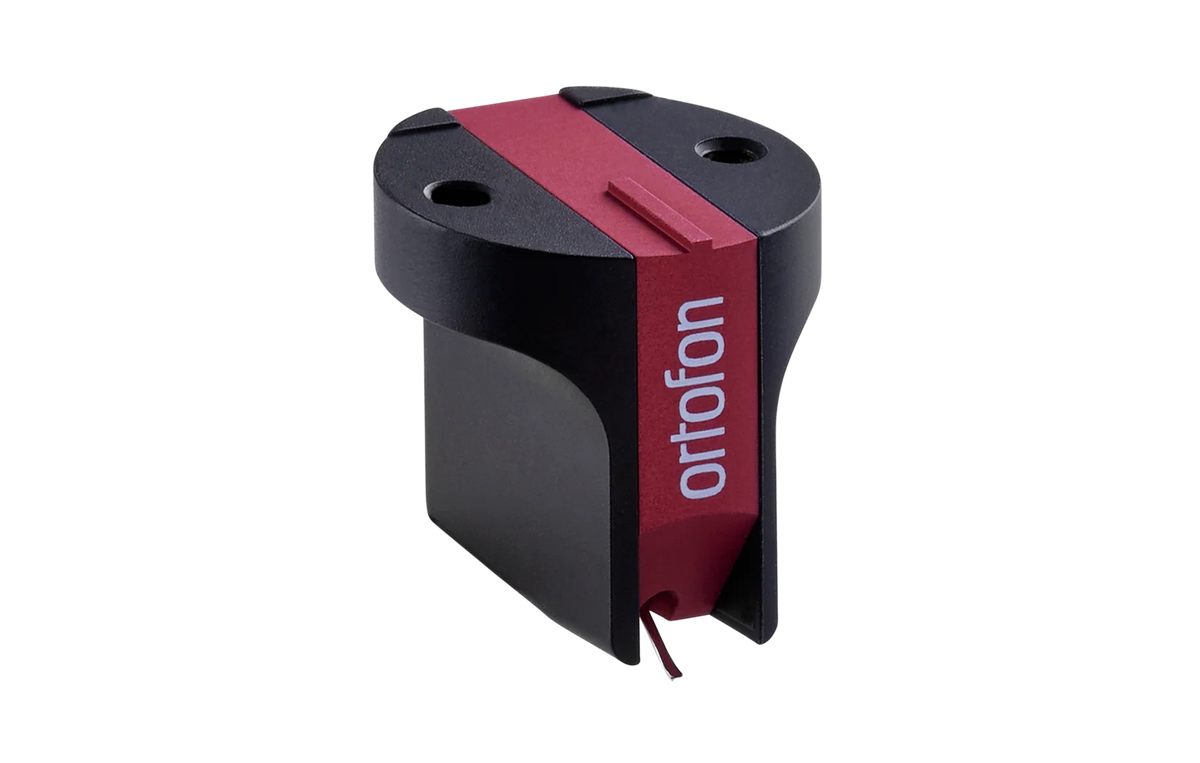

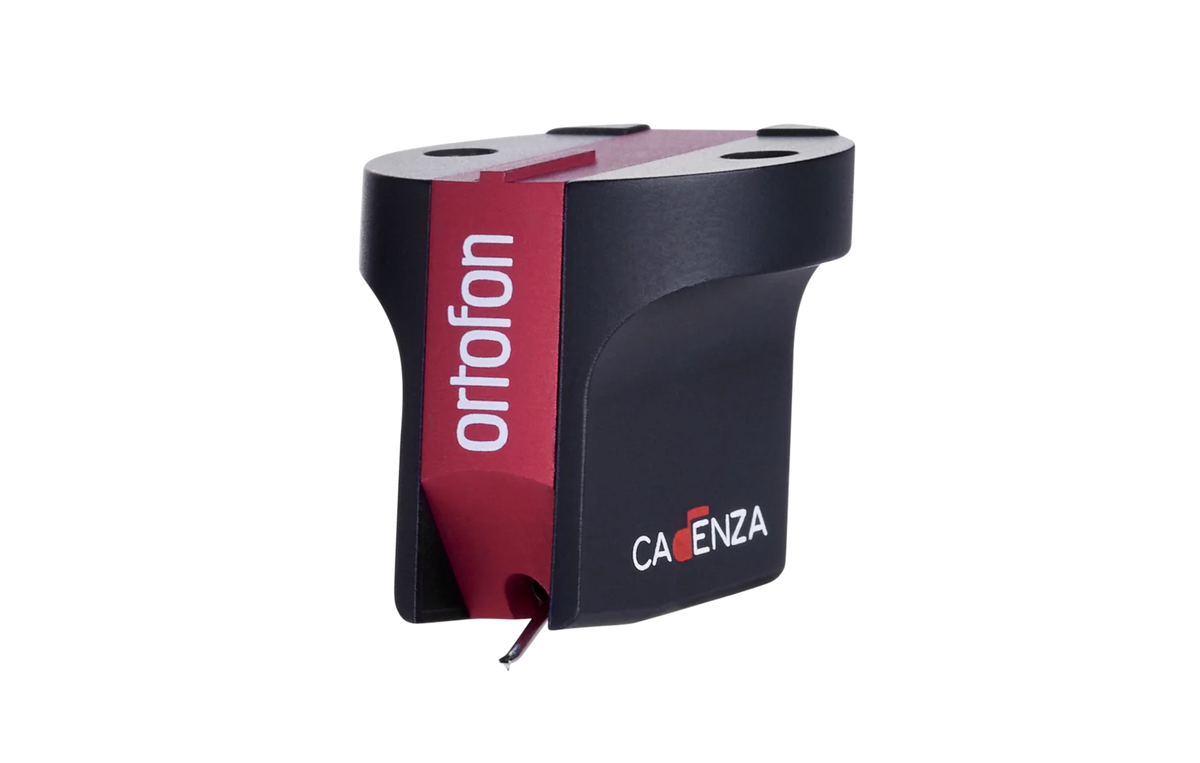

Ortofon MC Cadenza Red Moving Coil Phono Cartridge
Nude Fine Line stylus. 6NX pure silver coils. Open, dynamic sound with a touch of warmth.
The Ortofon MC Cadenza Red is a high-performance stereo moving coil cartridge designed to deliver a spacious, natural sound with excellent musical detail. Its Nude Fine Line diamond stylus features an 8/40 µm profile mounted on a cylindrical aluminum cantilever, providing precise groove contact and accurate tracking.
The cartridge uses 6NX (99.9999%) pure silver coil wire and an improved winding process designed to enhance channel balance. Its aluminum and stainless-steel body provides a rigid foundation for the generator, while the 0.45 mV output makes it suitable for appropriately matched moving coil phono stages.
Ortofon describes the Cadenza Red's sound as open and dynamic, with a touch of warmth, a cohesive presentation, and excellent stereo depth.
OUTPUT
0.45 mV
TRACKING FORCE
2.5 g
TRACKING ABILITY
80 µm
Key Features
-
Nude Fine Line stylus: 8/40 µm diamond profile for accurate groove tracing.
-
Cylindrical aluminum cantilever: Supports precise stylus movement.
-
6NX pure silver coils: 99.9999% pure silver wire.
-
Improved armature winding: Designed to improve channel balance.
-
80 µm tracking ability: Measured at 315 Hz at the recommended tracking force.
-
Low internal impedance: 5 ohms, with a recommended load of 50–500 ohms.
-
Rigid construction: Aluminum and stainless-steel cartridge body.
-
Standard ½-inch mounting: Designed for compatible turntables and tonearms.
Complete Technical Specifications
|
Specification |
Ortofon MC Cadenza Red |
|---|---|
|
Cartridge type |
Moving coil (MC), stereo |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Nude Fine Line |
|
Stylus tip radius |
r/R 8/40 µm |
|
Cantilever material |
Cylindrical aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
450 µV / 0.45 mV |
|
Channel balance at 1 kHz |
Less than 1.5 dB |
|
Channel separation at 1 kHz |
Greater than 23 dB |
|
Channel separation at 15 kHz |
Greater than 15 dB |
|
Frequency range at −3 dB |
20 Hz–50 kHz |
|
Frequency response, 20 Hz–20 kHz |
+3 / −1 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
12 µm/mN |
|
Tracking force range |
2.2–2.7 g (22–27 mN) |
|
Recommended tracking force |
2.5 g (25 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
5 Ω |
|
Recommended load impedance |
50–500 Ω |
|
Coil wire material |
6NX pure silver (99.9999%) |
|
Cartridge body material |
Aluminum and stainless steel |
|
Cartridge color |
Red / Black |
|
Cartridge weight |
10.7 g |
The Cadenza Red Difference
The MC Cadenza Red shares its basic construction with the Cadenza Mono but is designed for stereo playback. It uses a Nude Fine Line stylus, cylindrical aluminum cantilever, and 6NX pure silver coils.
Its 80 µm tracking ability is higher than the Mono's published 70 µm figure, while both models share a 0.45 mV output and recommended tracking force of 2.5 grams.
Compatibility & Installation
The MC Cadenza Red uses standard ½-inch mounting and requires a compatible tonearm. Its 0.45 mV output calls for a suitable moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier.
Ortofon specifies a recommended tracking force of 2.5 grams and a load impedance of 50–500 ohms.
Discover Ortofon at The Grid HiFi. Visit our Houston showroom for assistance with cartridge selection, turntable compatibility, and moving coil phono stage matching.
