Overview

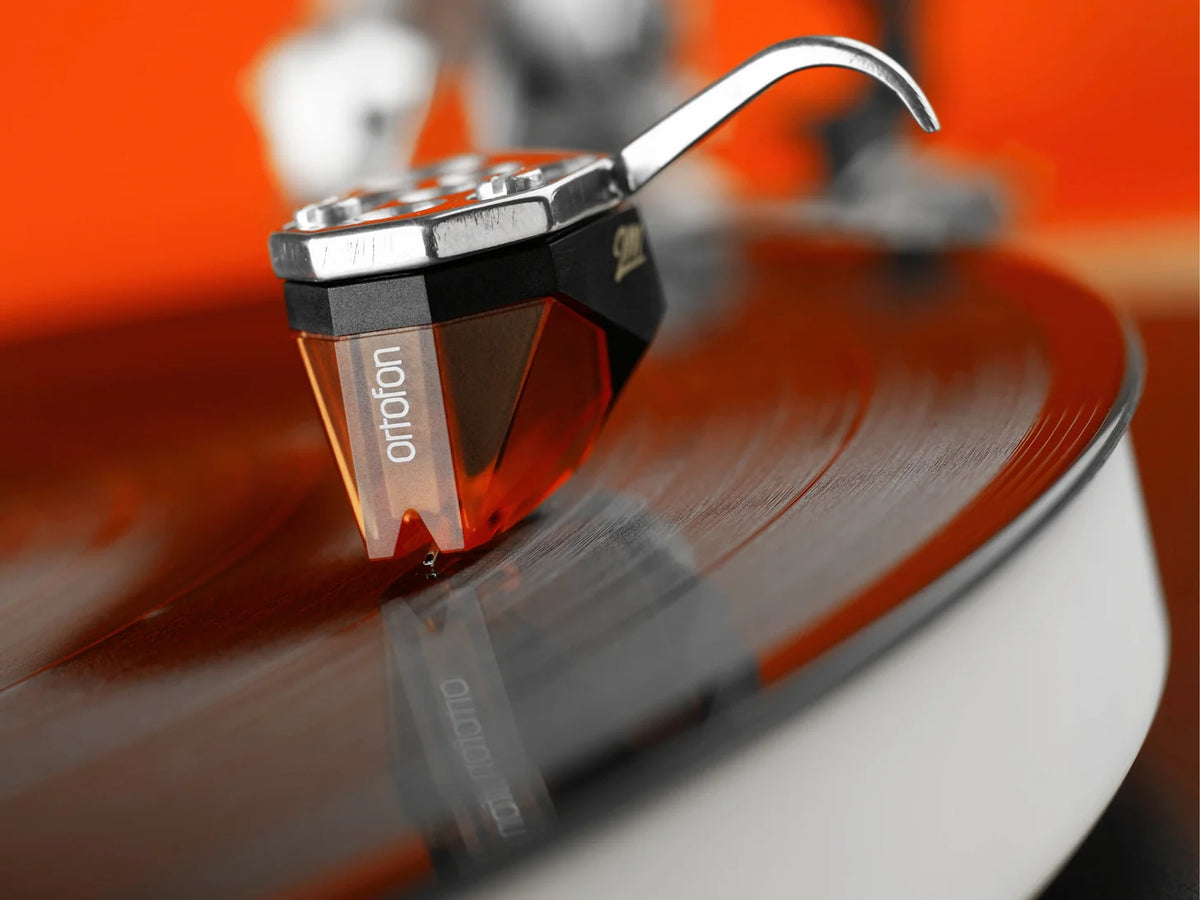

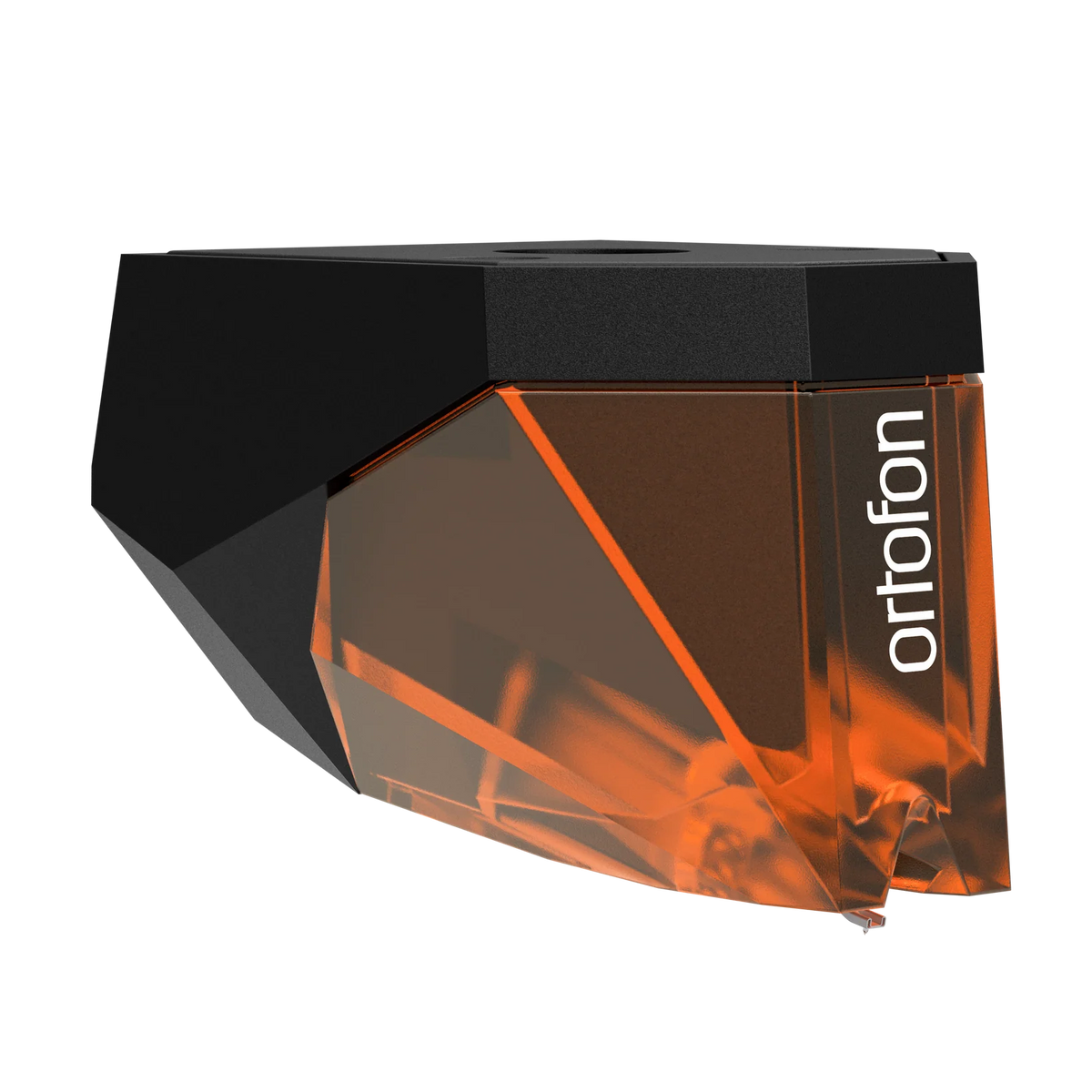

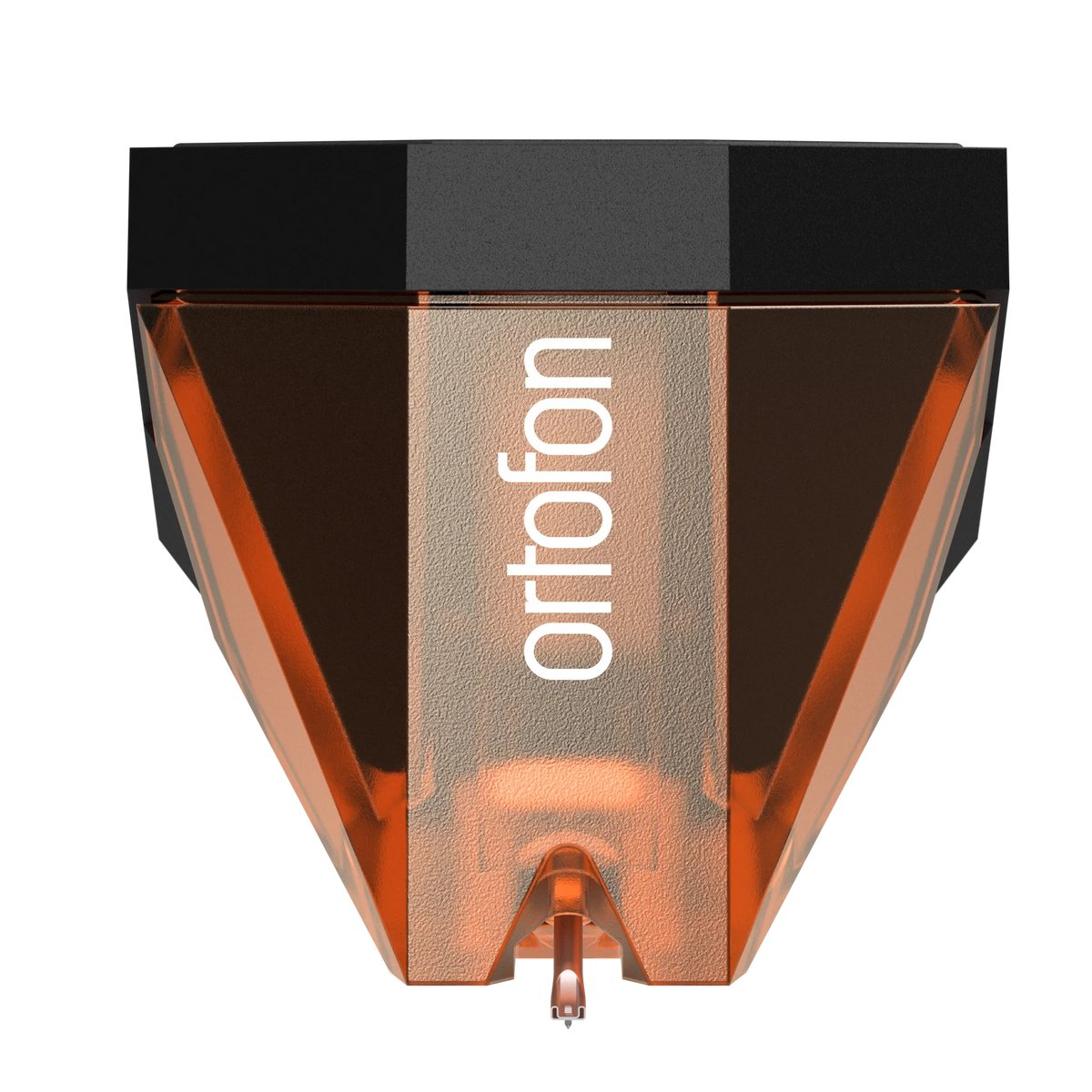

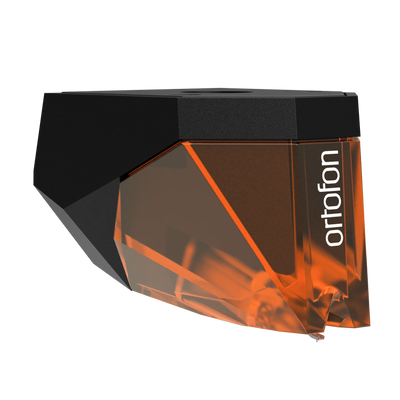

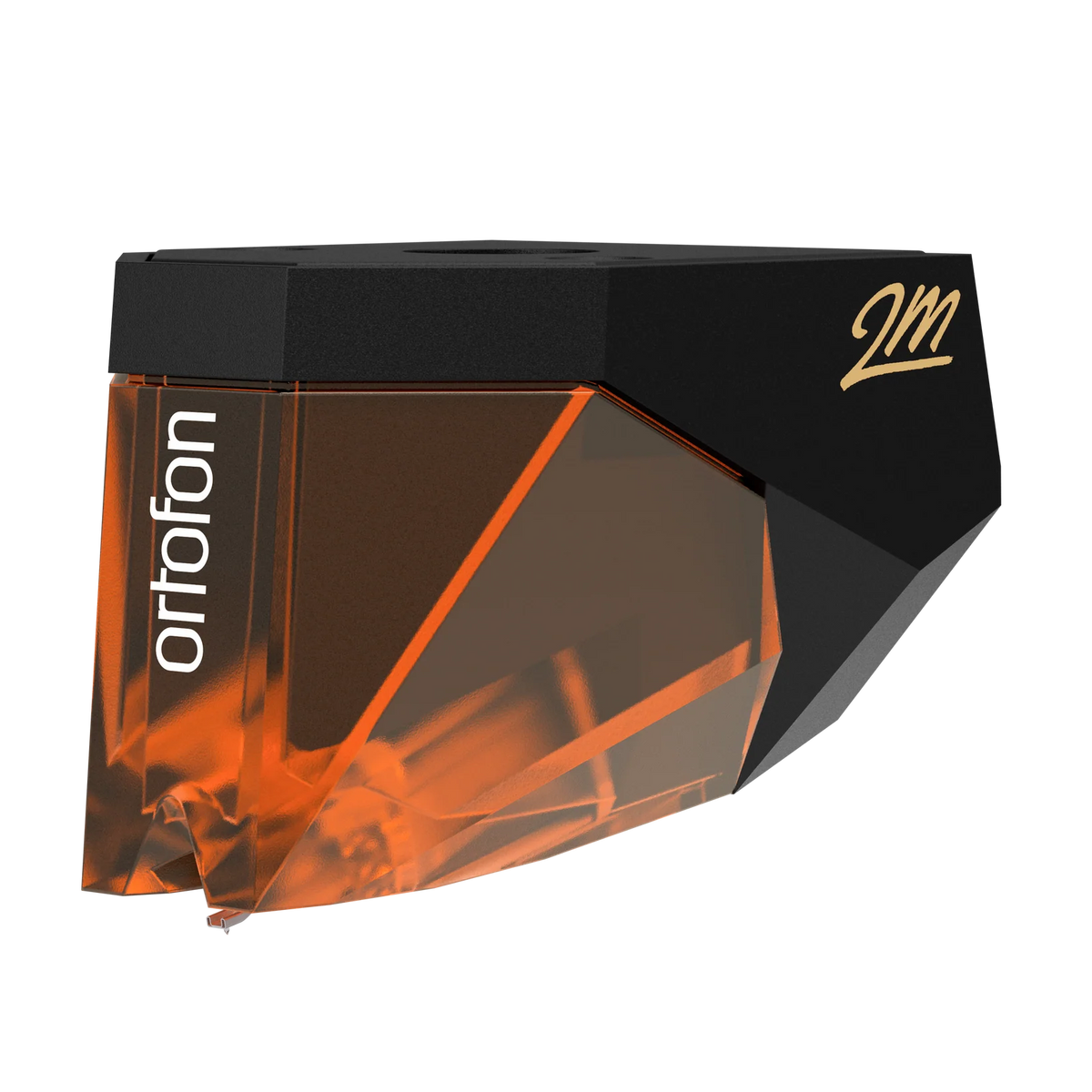

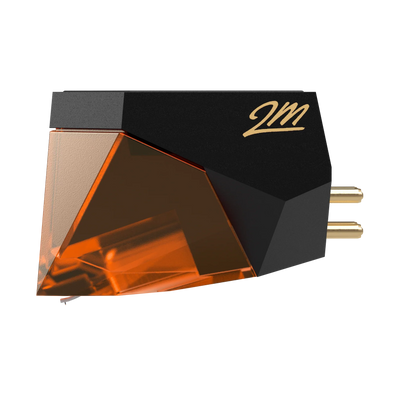

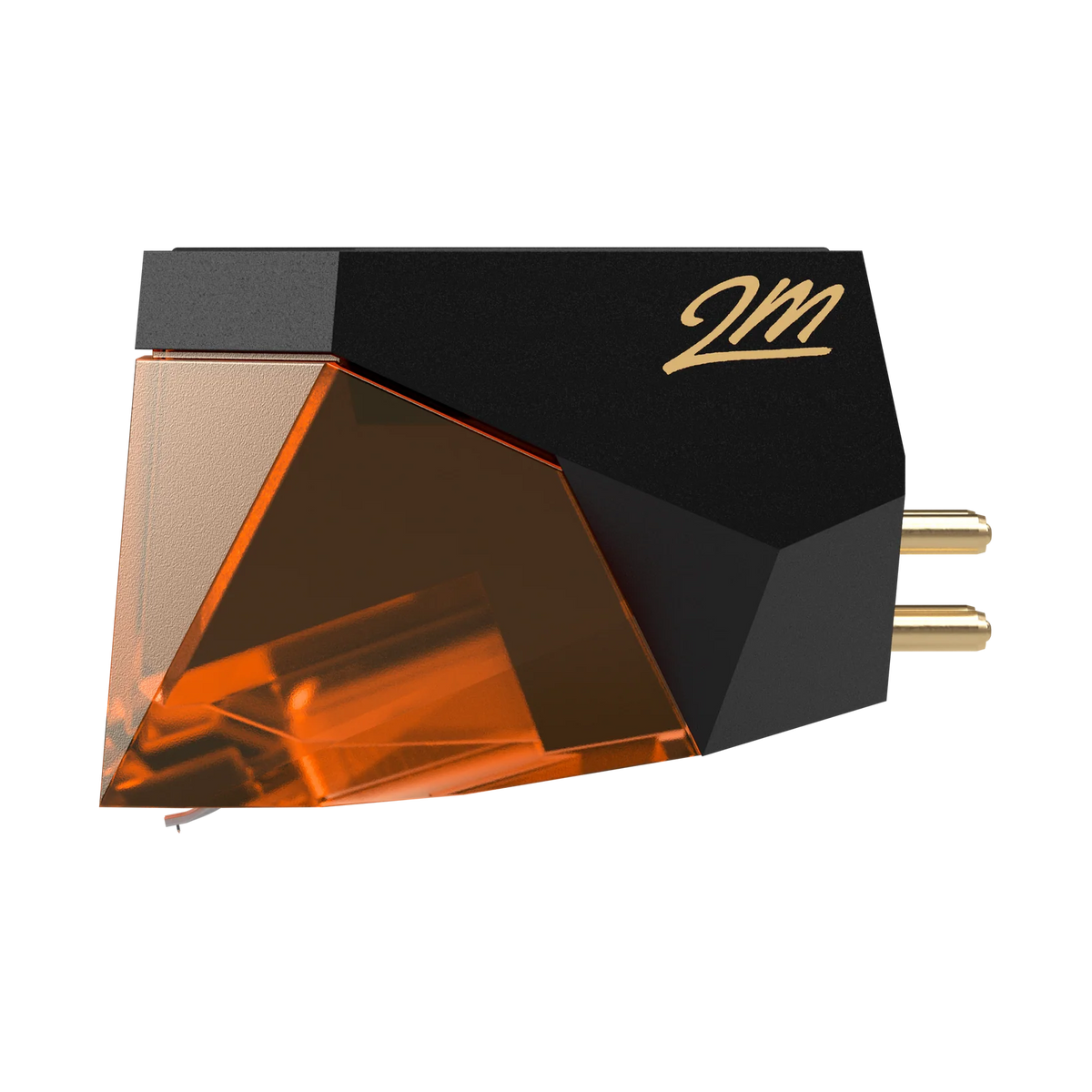

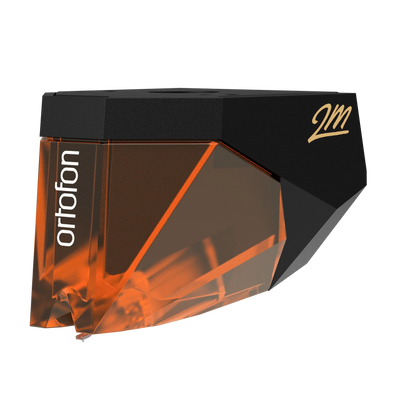

Ortofon 2M Bronze Moving Magnet Phono Cartridge
Nude Fine Line stylus. Silver-plated copper coils. Precision vinyl playback.
The Ortofon 2M Bronze is a high-performance moving magnet (MM) phono cartridge engineered to extract greater detail from your record collection. Its Nude Fine Line diamond stylus features a slim profile designed to trace high-frequency groove information with precision.
A dedicated cartridge engine featuring split pole pins and silver-plated oxygen-free copper (OFC) coil wire distinguishes the Bronze from the Red and Blue models. With 5 mV output and standard ½-inch mounting, it integrates into a wide range of high-end turntable systems.
OUTPUT
5 mV
TRACKING FORCE
1.5 g
SEPARATION
26 dB
Key Features
-
Nude Fine Line diamond stylus with an 8/40 µm tip profile.
-
Aluminum cantilever for accurate groove tracking.
-
Split pole pin technology with silver-plated OFC coil wire.
-
80 µm tracking ability and 22 µm/mN dynamic lateral compliance.
-
Replaceable stylus with an upgrade path to the 2M Black.
-
Standard ½-inch mounting for compatible turntables.
-
Designed and manufactured in Denmark.
Complete Technical Specifications
Manufacturer specifications for the standard Ortofon 2M Bronze cartridge.
|
Specification |
Ortofon 2M Bronze |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Stylus type |
Nude Fine Line |
|
Stylus tip radius |
r/R 8/40 µm |
|
Cantilever material |
Aluminum |
|
Coil system |
Quad-coils with split pole pins |
|
Coil wire material |
Silver-plated OFC |
|
Cartridge body material |
Polymer and aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
5 mV |
|
Channel balance at 1 kHz |
1 dB |
|
Channel separation at 1 kHz |
26 dB |
|
Frequency response, 20 Hz–20 kHz |
+2 / −0 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
22 µm/mN |
|
Tracking force range |
1.4–1.7 g (14–17 mN) |
|
Recommended tracking force |
1.5 g (15 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
1.2 kΩ |
|
Internal inductance |
630 mH |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Mounting type |
Standard ½-inch |
|
Cartridge weight |
7.2 g |
|
Premounted cartridge weight |
16.7 g |
|
Cartridge color |
Black / Bronze |
Stylus Replacement & Upgrade Options
The 2M Bronze features a user-replaceable stylus. The standard replacement is the Ortofon Stylus 2M Bronze, allowing you to retain the cartridge body when the stylus needs replacing.
The Bronze cartridge body also supports an upgrade to the 2M Black stylus, which uses a Shibata diamond profile.
Turntable & Phono Stage Compatibility
The standard 2M Bronze uses ½-inch mounting and requires a compatible tonearm and moving magnet phono input.
Ortofon also offers separate mounting configurations:
-

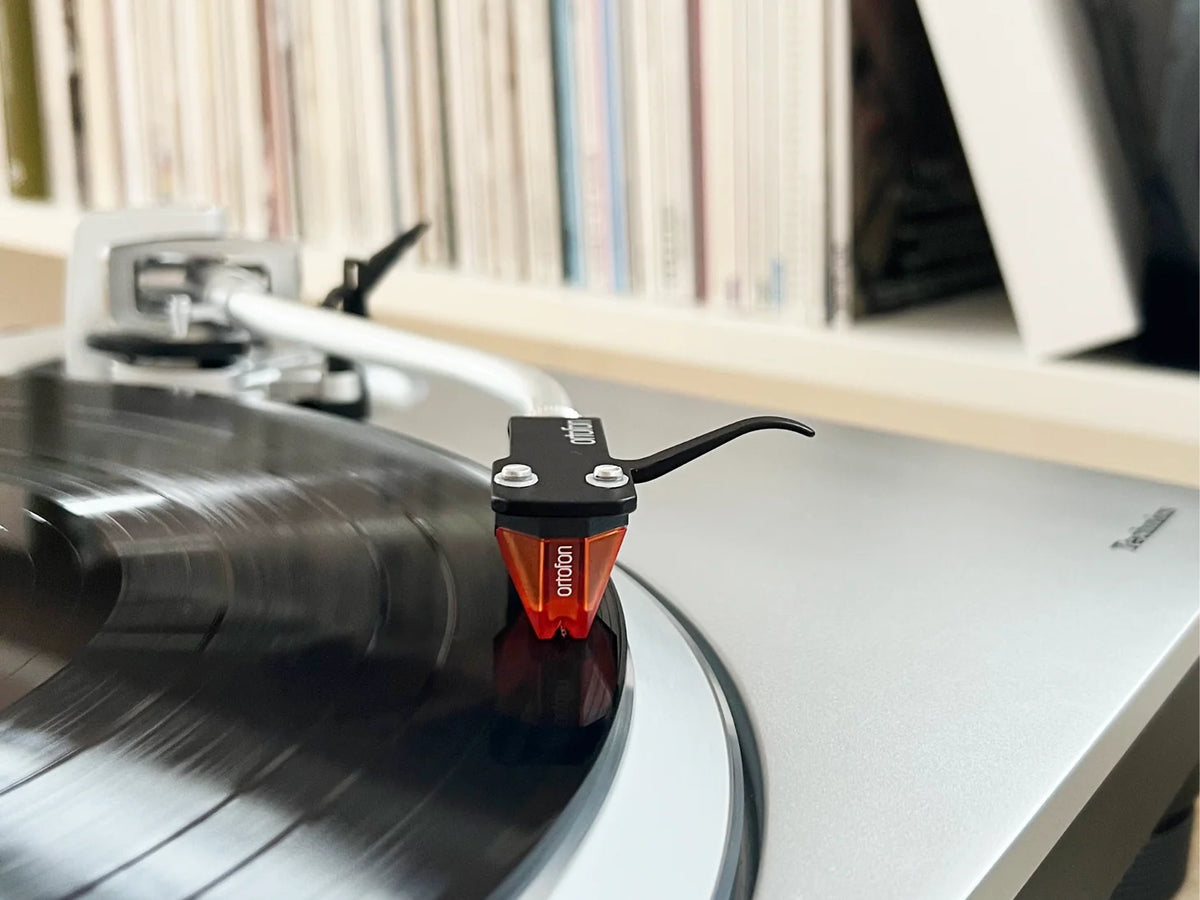

2M Bronze Premounted: Installed on an SH-4 headshell for compatible S-shaped tonearms.
-
2M Bronze Verso: Designed for bottom-mount headshells.
-
2MR Bronze: Low-profile housing for turntables and tonearms such as certain Rega models.
